Sharpening is simple and convenient, and the sharpened edge is in a straight line. Compared with manual sharpening, this equipment makes the use of the blade increase in strength and also increases the service life and processing capacity of the blade.

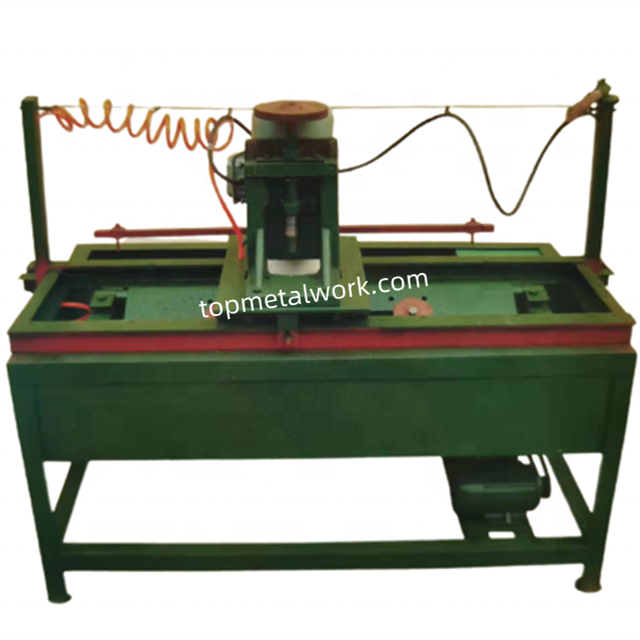

The machine consists of six parts: body, table, slide, reducer electrode, grinding head and electrical equipment. The machine has a compact structure between all parts, with a beautiful and reasonable appearance, and the grinding head is even and smooth, which is suitable for the processing of various straight-edged tools.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
According to customer needs
-
Dimension(L*W*H):
-
1380*800*1100
-
Weight (KG):
-
148
-
Power (kW):
-
370
-
Application:
-
Wood Processing
-
Keywords:
-
High Output Mobile Wood Crusher
-
Advantage:
-
High Efficieny
-
Quality:
-
Top Level
Quick Details
-
Grinding Length(mm):
-
850
-
Surface Roughness(μm):
-
1 μm
-
Table Size(mm):
-
850
-
Place of Origin:
-
Henan, China
-
Voltage:
-
According to customer needs
-
Dimension(L*W*H):
-
1380*800*1100
-
Weight (KG):
-
148
-
Power (kW):
-
370
-
Application:
-
Wood Processing
-
Keywords:
-
High Output Mobile Wood Crusher
-
Advantage:
-
High Efficieny
-
Quality:
-
Top Level
FEATURES AT A GLANCE
Equipment used for dressing tools, mostly for dressing metal cutting tools made of HSS, and partly for dressing tools made of carbide and other super hard materials.
Features
The grinding machine is equipped with a machine base, grinding wheel, motor and transmission gear set. The motor drives the rotation of the grinding wheel set horizontally through the gear set deceleration, and the machine base is fixed with a long guide rail and the grinding tool holder through the pillar support, and the guide rail is equipped with an angle adjustment knob. The grinding tool holder is mounted on the guide rail, and the grinding tool holder is equipped with a tool press and a fixed knob and a tool extension adjustment knob. The utility model is also equipped with a water tank above the grinding wheel set horizontally on the machine base. The grinding wheel on the machine base is installed around the fixed water cover.
This equipment is simple, compact, easy to operate and use, the amount of tool extension, blade angle adjustable, the working environment is greatly improved, a wide range of applications, is an ideal knife grinding machine.
PRODUCT SPECIFICATIONS
|
Length of Processing(mm)
|
Wheel Speed(r/mim)
|
Main Motor(kw)
|
Wheel Size
(mm)
|
Stroke Motor Power(kw)
|
Pump Power(kw)
|
Outsize(mm)
|
Weight(kg)
|
|
850
|
2840
|
1.5
|
125*65
|
370
|
40
|
1380*800*1100
|
148
|
