2. 10 heads multihead weigher
3. Z type material conveyor
4. Platform
5. Finished product conveyor
6. metal detector and check weigher
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
max 110bag/min
-
Weight (KG):
-
550
-
Voltage:
-
Single AC 220±10%,50/60Hz, AC220V±10%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AccuBal
-
Dimension(L*W*H):
-
1120*1140*1560mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hopper capacity:
-
1600ml
-
Averange Tolerance:
-
0.5-1.5g
-
Machine Materials:
-
304 stainless steel
-
Power(W):
-
3.6KW
-
Certificate:
-
CE ISO9001
-
Display Screen:
-
Touch Screen
-
Max. Weighing Speed (WPM):
-
≤110BPM
Quick Details
-
Function:
-
FILLING, Capping, Sealing
-
Packaging Type:
-
Cartons, CANS, Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
max 110bag/min
-
Weight (KG):
-
550
-
Voltage:
-
Single AC 220±10%,50/60Hz, AC220V±10%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AccuBal
-
Dimension(L*W*H):
-
1120*1140*1560mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hopper capacity:
-
1600ml
-
Averange Tolerance:
-
0.5-1.5g
-
Machine Materials:
-
304 stainless steel
-
Power(W):
-
3.6KW
-
Certificate:
-
CE ISO9001
-
Display Screen:
-
Touch Screen
-
Max. Weighing Speed (WPM):
-
≤110BPM
Products Description
Main Features:
-- Strength of standard combination weigher : wide rage of application,high price competitiveness, reliable performance.
-- 10.4 inch color display, lots of language can be chosen.
-- Speed and amplitude can be adjusted in operation process.
-- Weigh hopper followed by discharge, effectively prevents blockages.
-- Amplitude of each linear feeder can be adjusted separately.
-- 99 of present programs are preprogrammed in stock.

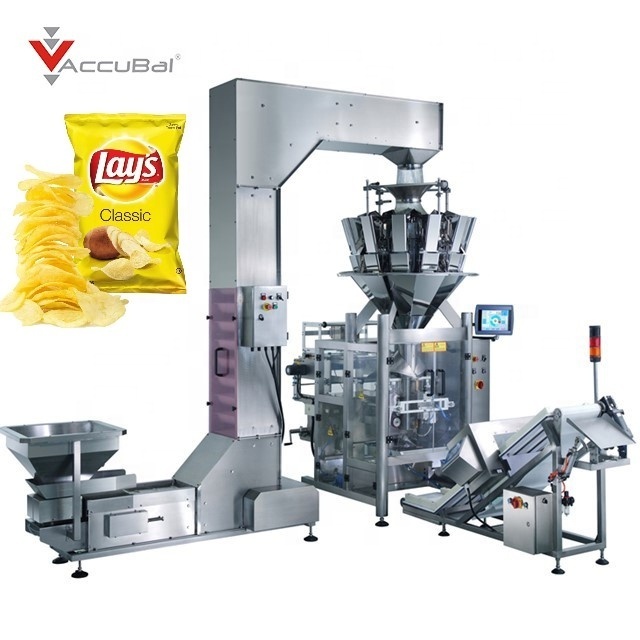

Whole Packaging System
1. Vertical Form Fill Seal Bag-maker
2. 10 heads multihead weigher
3. Z type material conveyor
4. Platform
5. Finished product conveyor
2. 10 heads multihead weigher
3. Z type material conveyor
4. Platform
5. Finished product conveyor
Product Details
|
Specification for AB-E14-2C-1Xp Multihead Weigher
|
|
|
|
Model
|
AB-E14-2C-1Xp
|
|
|
Hopper No.
|
14
|
|
|
Actuator Housing
|
Stainless steel
|
|
|
Collating Chute
|
Independent Chute
|
|
|
Max. Weighing Speed (WPM)
|
≤110BPM
|
|
|
Average Tolerance
|
0.5g-1.5g
|
|
|
Hopper Volume
|
1.6Liter
|
|
|
Max.Single Discharge
|
3000ml
|
|
|
Single Weigh
|
20g-1000g
|
|
|
Single Max Length
|
≤80mm
|
|
|
Water Proof
|
IP64/IP65 Optional
|
|
|
Preset Number Program
|
99
|
|
|
Display
|
10.4 inch TFT colour screen
|
|
|
Power
|
Single AC 220±10%；50/60Hz；1.9KW
|
|
Electrophoresis aluminum housing
Accubal's electrophoretic coatings (generally nitrogenous resins) have a protective effect on metals and are of high quality.
ABS Water & dust proof cover
Dustproof and waterproof, protect the machine, prolong the service life.
High quality laser welding hopper
Accubal multihead weigher's contact surface with food is 304 stainless steel of food grade.
Linear Feeder Pans
Stainless steel Independent collating chute
10.4 inches color touch screen
Vertical packing machine High-speed BX Series
* PLC controller with touch screen interface
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
* Servo-driven end seal jaws
* Servo-driven film transport
* Hot printer and film feeding system synchronous
* Quickly changing one-piece bag former
* Eye mark sensor for film tracking
* Stainless steel frame
|
Model
|
BX-400
|
BX-500
|
BX-620
|
|
Max. film width
|
400mm
|
500mm
|
620mm
|
|
Bag width
|
60-190mm
|
80-240mm
|
110-300mm
|
|
Bag length
|
50-230mm
|
50-300mm
|
50-380mm
|
|
Packing speed
|
Max. 100 bpm
|
Max. 100 bpm
|
Max. 100 bpm
|
|
Power supply
|
220V, 50HZ, 3.5Kw
|
220V, 50HZ, 4Kw
|
220V, 50HZ, 4.5Kw
|
|
Air requests
|
0.2m3/min, 0.6MPa
|
0.2m3/min, 0.6Mpa
|
0.2m3/min, 0.6MPa
|
|
Outer dimension
|
1300x960x1150mm
|
1550x1160x1480mm
|
1600x1260x1680mm
|
Application
Application sample:
Puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings,
biscuits, pasta, herbal pieces, pet food, frozen food, hardware ect
About Us
Customer Case
Certifications
Package & Delivery
FAQ
Q1: How to find a multihead weigher suitable for my product?
Tell us about your product details and weighing requirements.
1. What kind of product you would like to weigh?
2. The weighing speed you require(bag/min).
3. The weigh of each pack you need.
4. If you also need packing, please provide the bag size and style.
Q2: Are you trading company or manufacturer?
A: we are manufacturer of multihead weigher in China for more than 13 years experiences.
Q3: How can we check your machine quality after we place an order?
A: we will send the photo and video of machine to customer to check the machine running situation before delivery.
Besides, welcome customer to come our factory to check the machine by your own
Q4: What is your term of payment?
A： T/T, we would like to full payment before delivery for spares part For the machine order, 30%T/T in advance, the rest of balance before shipping
Q5: Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Why choose us?
1. We have faster after-sales service: reply customer within 24 hours, problem handling less than 48 hours
2. One year warranty for machine and spare parts
3. New customer have 7 days training for free.
Oversea technician sending service can provided.
