Quick Details
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
14800
-
Drive Wheel:
-
4X2
-
Place of Origin:
-
Hubei, China
-
Drive cabin of water truck:
-
Single row, LHD/RHD option
-
Load capacity:
-
8 tons
-
Load box body(L*H*W):
-
4300*2300*800(mm)
-
Tank material:
-
High strength carbon steel
-
Thickness:
-
3mm side wall, 5mm deck board
-
Power & displacement:
-
B170 33, 125kW/170hp, 6 cylinder, turbocharged, intercooled
-
Self-unloading:
-
Rear dumping, middle hydraulic jack
-
Rear door open method:
-
Self opened when dumping
-
Tire specification:
-
9.00-20, 6+1 tyres
-
Max speed:
-
85km/h
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 3
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
14800
-
Drive Wheel:
-
4X2
-
Place of Origin:
-
Hubei, China
-
Drive cabin of water truck:
-
Single row, LHD/RHD option
-
Load capacity:
-
8 tons
-
Load box body(L*H*W):
-
4300*2300*800(mm)
-
Tank material:
-
High strength carbon steel
-
Thickness:
-
3mm side wall, 5mm deck board
-
Power & displacement:
-
B170 33, 125kW/170hp, 6 cylinder, turbocharged, intercooled
-
Self-unloading:
-
Rear dumping, middle hydraulic jack
-
Rear door open method:
-
Self opened when dumping
-
Tire specification:
-
9.00-20, 6+1 tyres
-
Max speed:
-
85km/h

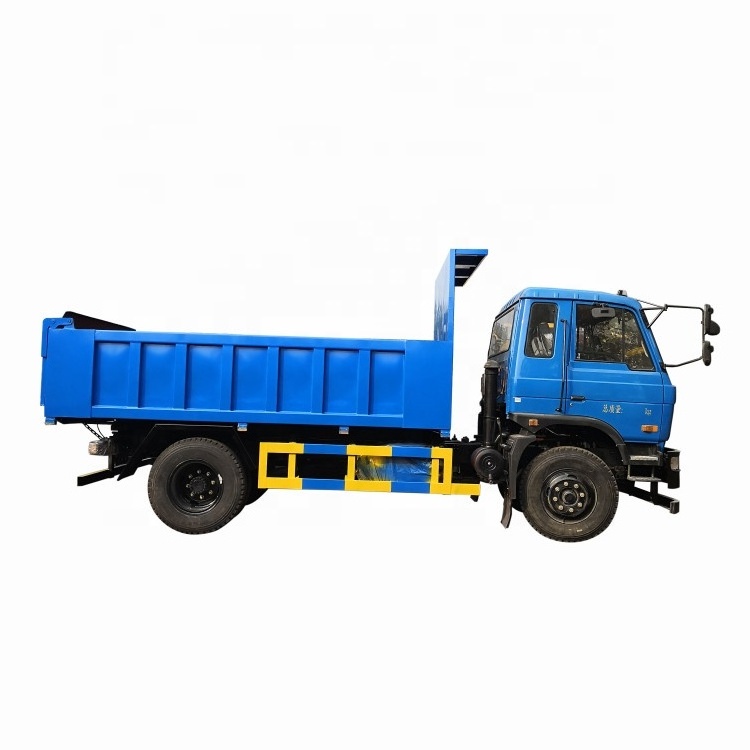

CLW5150 8 ton rear dump truck for sale
1. 4X2 wheel drive, LHD or RHD options, Cumins 170HP engine, 6 wheels, 8 tons load capacity;
2. China famous brand hydraulic oil cylinder system;
3. High strength steel load box body;
4. Welding done by high-class technician;
Technical Specifications of 8 ton rear dump truck
| Product name |
Rear dump truck
|
Options |
| Producer | ChengLi Special Automobile Co.,Ltd | |
| Load Capacity | 8 tons | 1~80 tons |
| Overall dimention | 6580*2480*3050mm | |
| Load box body | 4300*2300*800(mm) | |
| Material of load body | High strength carbon steel | Stainless steel |
| Thickness | 3mm side wall and 5mm deck board | |
| Self-unload method | Rear dumping, hydraulic cylinder | |
| Engine | B170 33, 125KW/170HP | 210HP~280HP |
| Fuel type | Diesel | |
| Emission standard | Euro III | |
| Tire specification | 9.00-20 | |
| Max speed | 90km/h | |
| Equipped truck chassis | ||
| Brand | Dongfeng | Sinotruk,Foton,Shaanxi,etc |
| Wheel drive | 4x2, LHD | RHD |
| Driving cab | single row, 3 seats | Single row with a sleeper |
| Wheel base | 3950mm | |
| Engine | Cumins B170 33, 125kW/170hp, 6 cylinder, Turbo-Charged, intercooled | |
| Emission standard | Euro 3 | Euro 4/5 |
| Axle & wheel | 2 axle, 6 wheels, one spare tire | |
| Tire specification | 9.00-20 | 11.00-20 |
| Others | ||
| Rear door | Self opened when dumping | |
| Protect board upon cab | Option | Fire monitor,range>40m |
| Lights | Set | |
| Reflective logo | Set | |
| Front bumper | Set | |
| Rear protect fence | Set | |
Detail Images of 8 ton rear dump truck:
Main configuration: chassis, load box body, hydraulic lifting system, PTO, other accessories, etc.
Shape of load box body:
- Common square box body
- Mine use U-box body
- other special use
1. Earthwork;
2. Garbage, waste construction material;
3. Mine use;
4. Stone, rock, etc;
5. Common goods;
6. Other products.
We also can provide off-highway mine dump truck.
Our water trucks classified by volume capacity: 1 tons ~ 80 tons ;
Our water trucks classified by chassis brand: Dongfeng, Sinotruk, JAC,CHUFENG, Shacman, YUEJIN,etc.
FOR WHATSAPP, PLEASE ADD +86-18372220016 !!!!
Dump truck is one of the hottest sale products among all products sold by our company. As the good quality, strongth load body, heavy load capacity, and field most reasonable price, we export more and more dump trucks to overseas market in these years, receiving wide good comments.
Our can supply dump trucks using Dongfeng, Shacman, Sinotruk and other famous brand chassis.
We can aslo provide dump semi trailer with all different capacity.
