Quick Details
-
Model Number:
-
130SY-M15210S1
-
Frequency:
-
50/60Hz
-
Number of pole pairs:
-
5
-
Encoder Brand:
-
Tamagawa(From Japan)
-
Output Power:
-
1.6kw
-
install:
-
Flange mountiong
-
Insuation resistance:
-
DC500v ,10M above
-
environment temperature:
-
0 °C - 55 °C
-
Vibration:under:
-
2.5G
-
Insuation and voltage resistance:
-
AC1500V,1minute
-
Voltage:
-
220v
-
Certification:
-
CE, ISO
Quick Details
-
AC Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XINYUHAI
-
Model Number:
-
130SY-M15210S1
-
Frequency:
-
50/60Hz
-
Number of pole pairs:
-
5
-
Encoder Brand:
-
Tamagawa(From Japan)
-
Output Power:
-
1.6kw
-
install:
-
Flange mountiong
-
Insuation resistance:
-
DC500v ,10M above
-
environment temperature:
-
0 °C - 55 °C
-
Vibration:under:
-
2.5G
-
Insuation and voltage resistance:
-
AC1500V,1minute
-
Voltage:
-
220v
-
Certification:
-
CE, ISO

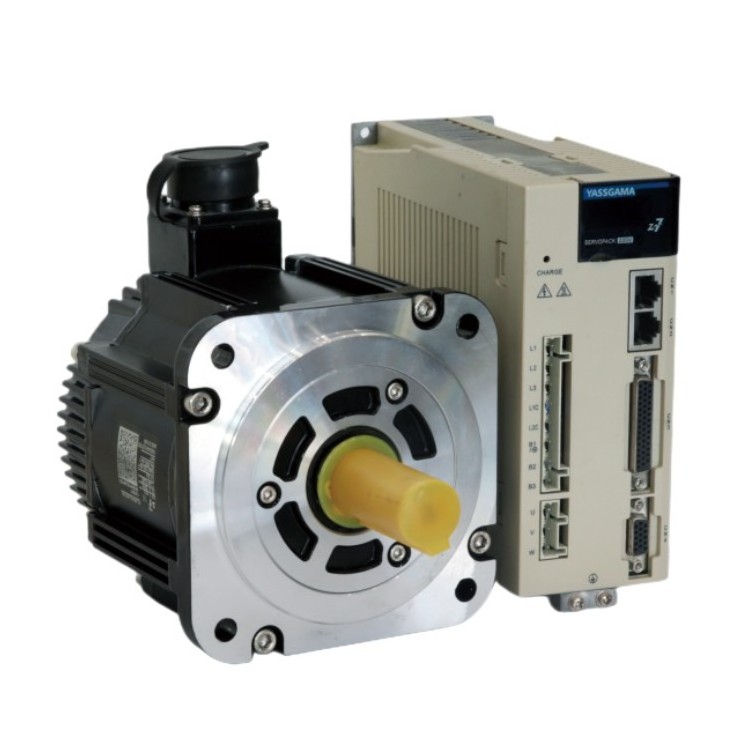

Cheap Electric 1.6kw servomotor with brake
Servo Motor Servo Drive for robot ac servo price
|
Motor Model
|
130
SY- M05415S1
|
130SY-M08415S1
|
130SY-M11515S1
|
130SY-M15215S1
|
130SY-M11515S1-2
|
130SY-M15210S1
|
|
Rated Power(Kw)
|
0.85
|
1.3
|
1.8
|
2.4
|
1.8
|
1.6
|
|
Rated Torque(N.m)
|
5.4
|
8.4
|
11.5
|
15.2
|
11.5
|
15.2
|
|
Max Torque(N.m)
|
13.8
|
23.3
|
28.7
|
38.2
|
19.5
|
27.36
|
|
Rated Speed(Rpm)
|
1500
|
1500
|
1500
|
1500
|
1500
|
1000
|
|
Max Speed(Rpm)
|
3000
|
3000
|
3000
|
3000
|
2200
|
1800
|
|
Rated Current(A)
|
6.4
|
9.5
|
13
|
20
|
9.5
|
9.5
|
|
Rotor Inertia(Kg.㎡)
|
1.92*10
-3
|
2.68*10
-3
|
3.53*10
-3
|
4.46*10
-3
|
3.35*10
-3
|
4.46*10
-3
|
|
Motor Weight(Kg)
|
5.86
|
7.32
|
9.02
|
11.06
|
9.02
|
11.06
|
1. High level of integration
2. Fast response
3. Protect perfectly
4. High reliability
Yaskawa Sigma-7 type driver
Pls contact me for more details about the servo motor and driver !
We have tamagawa incremental 2500PPR /5000PPR and absolute 17BITS /23BITS !
STANDARD MODEL:SUPPORT PULSE AND DIRECTION, MODBUS RS485, INTERNAL POSITION CONTROL, AUTOMATIC TUNING
1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,w e produce stepper motor,servo motor,motor drive and couplings, etc. .
2 ) Where is your factory located? How can I visit there?
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,w e produce stepper motor,servo motor,motor drive and couplings, etc. .
2 ) Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!
3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.
5) About warranty?
All our products provided 24months warranty!
6)
How does your factory do regarding quality control?
"Quality is priority.''
Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.
7)
Do you provide after-sale service?
Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set the parameters, etc.
