Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGBALI
-
Dimension(L*W*H):
-
Cutomer's Request
-
Weight:
-
Final Dimension
-
Warranty:
-
2 Years
-
Working Temperature Range:
-
-40 - 300 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

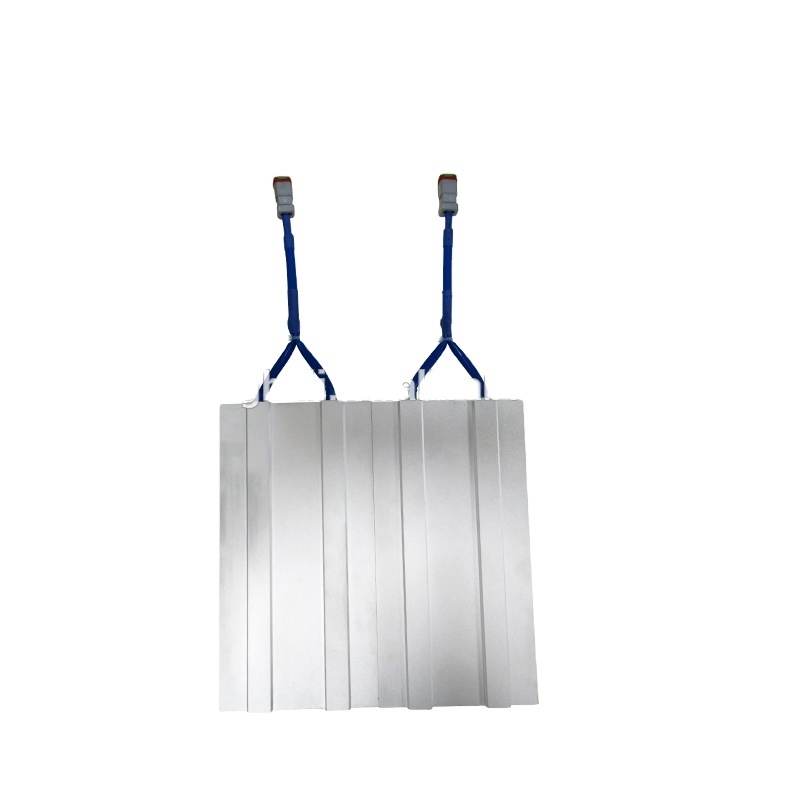

PTC Heating Pad
-
Flammability rating:
-
UL-94 V0
-
Thickness:
-
5.0-24mm
-
Withstand voltage strength:
-
≤3500VDC
-
Insulation impedance:
-
≥50mΩ
-
Using temperature:
-
Long term≤265/Short term≤300
-
Flame Retardant:
-
UL-94 V0
-
Wire Tension:
-
≥5Kg/f
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Flat heater
-
Power Source:
-
Electric
-
Voltage:
-
12-750v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGBALI
-
Dimension(L*W*H):
-
Cutomer's Request
-
Weight:
-
Final Dimension
-
Warranty:
-
2 Years
-
Working Temperature Range:
-
-40 - 300 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
PTC Heating Pad
-
Flammability rating:
-
UL-94 V0
-
Thickness:
-
5.0-24mm
-
Withstand voltage strength:
-
≤3500VDC
-
Insulation impedance:
-
≥50mΩ
-
Using temperature:
-
Long term≤265/Short term≤300
-
Flame Retardant:
-
UL-94 V0
-
Wire Tension:
-
≥5Kg/f
-
Certification:
-
ISO9001
14 6 0 PTC Heater, has constant temperature heating, high thermal conversion rating, high withstand voltage, small residual current, low power, prompt resonese, long-term use etc. It use PTC ceramic for heating source , aluminum corrugate plate for heat sink, useful life ( over 10 years) , energy saving, nameless fire(working no flush), no consume oxygen, high safety performance, heating value autoregulate and affect of voltage fluctuation is small etc. there is incomparable advantage than other tradition heater.
| series | 1460 |
Heater Description:
Feature:
- Heat transfer rate up to 98%;
- Aluminum as heat sink substrate, Excellent heat transfer performance;
- High withstand voltage performance,Can apply to high voltage products;
- Aluminum products ease of processing,can make various of constant temperature heating board, air-conditioning heater,fan heater series products;
- PTC material has excellent automatic , Constant temperature, safety to use, more energy saving.
Advantages:
- 1460PTC heater, repaid warming , when fan failure it can control temperature, long-term use.
- 1460PTC heater voltage wide use range, it can according to the needs of between 12V -750V;
- 1460PTC heater is easy to design , it can from low power to high power arbitrary design , shape can according to request;
- 1460PTC heater did not ignite, safety, working no flush, nameless fire,
- 1460PTC heater low cost, long service life, when heater control heating no need specialized controller and thermal resistance by temperature sensor to process back feed, its temperature control is by material properties to finish. so the service life for products is bigger than other heating products, under normal circumstances it can use over 10 years,no consume oxygen,high safety performance.
- 1460PTC heater and tradition heater on the same power, their power consumption is the same. But PT C electrical energy transfer heat energy is higher than tradition heater, so much heat energy is more, conversely at same heat energy, tradition heater consumption is more than PTC heater,so PTC heater saving electricity is stronger.
Application:
1460PTC heater extensive use for home appliances and industrial air conditioner, hot air curtain machine, dryer, car air conditioner, warn, fan heater, dehumidifier, clothes dryer, hand dryer, drying room heater, industrial drying plant, air heating, small appliances
Customization need the important parameters below:
1.Did you use this product before?(our company accepted customized/OEM service)
2.customized parameters:product standard/(allotype need provide CAD1:1 drawing)
3.customized parameters:product application
4.customized parameters:The position of product lead wire
5.customized parameters:ambient temperature
6.customized parameters:product working temperature
7.customized parameters:Do you need attemperator/thermostat?
8.customized parameters:Do you need adhesive?
9.OEM service need provide 1pcs and send to our R&D department
