Quick Details
-
Type:
-
outdoor lamp
-
Input Voltage(V):
-
100-240VAC DC12V DC24V
-
Product Weight（kg）:
-
0.8
-
Product name:
-
12 Watts COB LED outdoor ceiling down light
-
Model No.:
-
LBL184
-
Color Temperature(standard):
-
3000K warm white
-
Color Temperature(optional):
-
2700K/4000K/6000K
-
Beam angle(standard):
-
38 degree
-
Beam angle(optional):
-
15 / 24 / 60 degree
-
Finishing:
-
painted black
-
Material:
-
aluminium
-
Mounting:
-
outdoor ceiling surface
-
Application:
-
Balcony,outdoor hallway,bathroom,boat,indoor swimming pool,Garden
Quick Details
-
Color Temperature(CCT):
-
3000K (Soft Warm White)
-
Warranty(Year):
-
5-Year
-
Support Dimmer:
-
NO
-
Type:
-
outdoor lamp
-
Input Voltage(V):
-
100-240VAC DC12V DC24V
-
Product Weight（kg）:
-
0.8
-
Product name:
-
12 Watts COB LED outdoor ceiling down light
-
Model No.:
-
LBL184
-
Color Temperature(standard):
-
3000K warm white
-
Color Temperature(optional):
-
2700K/4000K/6000K
-
Beam angle(standard):
-
38 degree
-
Beam angle(optional):
-
15 / 24 / 60 degree
-
Finishing:
-
painted black
-
Material:
-
aluminium
-
Mounting:
-
outdoor ceiling surface
-
Application:
-
Balcony,outdoor hallway,bathroom,boat,indoor swimming pool,Garden

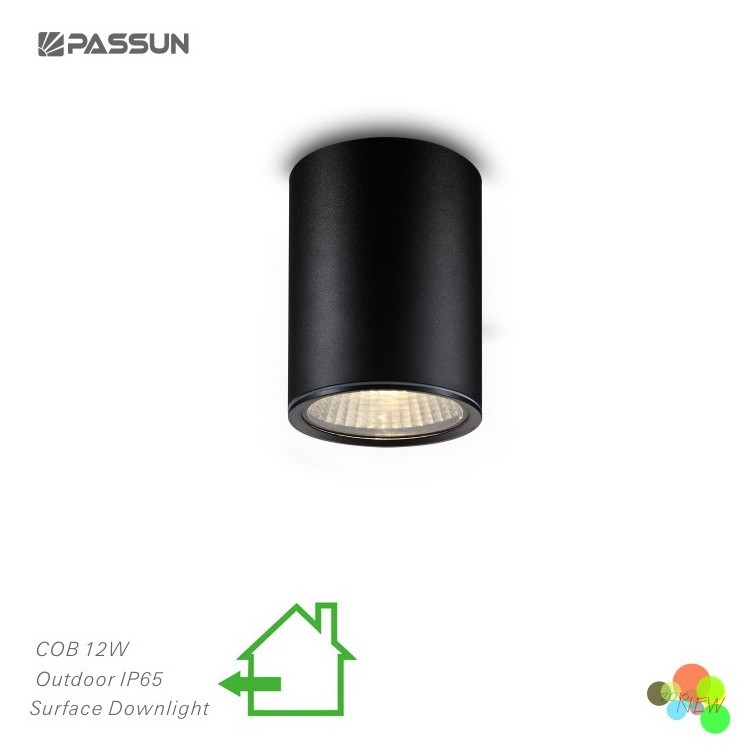

12 Watts COB LED outdoor ceiling down light for exterior IP65 round and square LED surface spotlight
| Item no. |
LBL184 |
| Lamp type | COB 1507 |
| LED (watt) | 12W |
| CCT |
warm white 3000K / neutral white 4000K / cold white 6000K |
| CRI(Ra>) |
85 |
| LED driver | 12W |
| Output current | 300mA |
| Input | 100-240VAC |
| Frequency | 50/60Hz |
| luminous o/p | 900lm |
| Bearn angle | 38 degree |
| Material | aluminium |
| Finishing | black |
| IP rating | ip65 |
| Mounting | outdoor ceiling surface mounted |
| Operating temp | -20 o ~+40 o |
| Life span | 50,000 hrs |
| Warranty | 5 years |
| Place of original | China |
| Certification | CE,EMC,LVD,TUV,ROHS |
| Brand Name | PASSUN |
| OEM available | |
For more info and placing a trial order,contact our sale manager. Send Inquiry Now
|
LED Outdoor Wall Lamp |
|
|
LED Outdoor Spike Lamp / underground light |
|
|
LED Lawn light/Path Light |
|
|
LED Outdoor Ceiling Lamp |
|
|
LED Outdoor Recessed Downlight |
|
|
|
|
More latest product information,please contact with Leo Send Inquiry Now
If you are looking for an unique quality lighting product, you will be confident that you finally have the answer when you get this catalogue.
FOR PROJECT & TRAIL ORDER SUPPORTING FROM PASSUN LIGHTING FACTORY
NO MOQ
one piece each model available, CCT 3000K warm white, standard product from the warehouse.
Normally we will put 30-50 pieces good selling item in the stock.
CCT OPTIONAL
lamp type of XPE/COB,2700K/4000K/6000K,MOQ 5pcs/model, under it, extra cost $15/model
lamp type of SMD, 2700K/4000K/6000K,MOQ 30pcs/model, under it, extra cost $45/model
MORE FINISHING
1- painting , to change the color to black / white / concrete grey , MOQ 30pcs/model,
under it, extra cost $30/model
2- the pantone code required, MOQ 100pcs/model, and the cost more about $0.8/piece (more detail please contact with us)
3- anodized finishing changed to painting finishing (black / white / concrete grey) MOQ 30pcs/model, quantity under it, extra cost $30/model
4- anodized finishing optional, anodized black, brushed black, anodized silver, brushed silver, anodized gold, brushed gold, MOQ 30pcs/model, under it, extra cost $30/model
5- chrome plated or gold plate to changed to painting or anodized finishing, MOQ 30pcs
6- painting or anodized finishing to changed as chrome plated or gold plate, MOQ 100pcs
ODM AVAILABLE
1- design need turning and milling process, 100pcs each model for start production, no tooling fee.
2- products need made by spinning, available, MOQ 100pcs + tooling fee.
3- if aluminum profile mould need, minimum order quantity 200kgs raw materials + tooling charge.
4- hardware need stamping die, 100pcs each model acceptable, but it caused tooling charge.
5- for the design need die-casting mold / plastic mold , 300pcs each model + tooling fee for mass production.
6- the sample extra charge $80/design
ABOUT LEAD TIME FOR CUSTOM MADE SAMPLE
1-finishing changing, 7-10 days
2-size changing, 10-15 days
3-time of make tooling
spinning 15-20 days / stamping die 20-25 days / aluminum profile mould 25-30 days / die-casting mold / plastic mold need 35-45 days
PAYMENT TERMS
A. 30% deposit T/T when order is sealed and 70% T/T before shippment
B. 100% in advance if total value under $3000 an order
C. Payment method, by T/T / paypal / alibaba trade assurance
