Quick Details
-
Weight:
-
2200 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
12.5kw
-
Dimension(L*W*H):
-
3500*2200*2850mm
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-36m/min
-
Main machine power:
-
12.5KW
-
Cutting machine power:
-
4KW
-
Processing diameter of round pipe:
-
100-1500mm
-
Processing speed:
-
1-36m/min
-
Processing width:
-
137mm
-
Overall Dimension:
-
3500*2200*2850mm
-
Voltage:
-
380v/50hz
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Brand Name:
-
RuiTiger
-
Condition:
-
New
-
Weight:
-
2200 kg
-
Place of Origin:
-
Anhui, China
-
Power:
-
12.5kw
-
Dimension(L*W*H):
-
3500*2200*2850mm
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-36m/min
-
Main machine power:
-
12.5KW
-
Cutting machine power:
-
4KW
-
Processing diameter of round pipe:
-
100-1500mm
-
Processing speed:
-
1-36m/min
-
Processing width:
-
137mm
-
Overall Dimension:
-
3500*2200*2850mm
-
Voltage:
-
380v/50hz

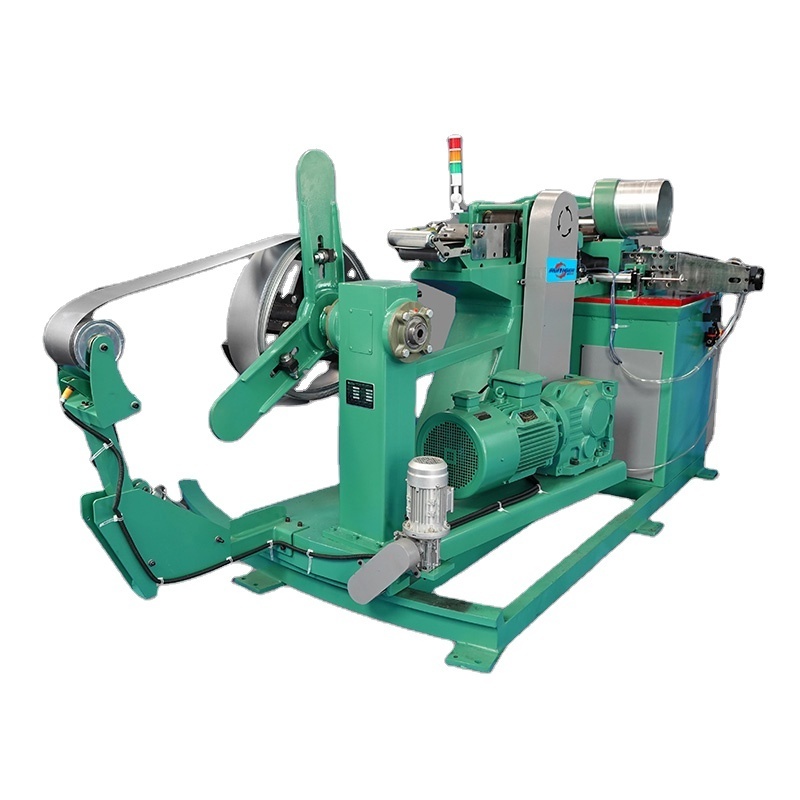

Pipe Model Spiral Duct Making Machine
A spiral duct making machine produces spiral ducts made of metal strip material, which are spirally wound into a thin-walled tube. This circular tube has no welds, leaks or joints and is ideal for air supply and bulk material transportation, replacing the traditional hand-bitten seam white iron pipe. The resulting full-mechanism straight tube requires no hand tapping, making it a highly efficient type of duct.
Performance Features
1. Our product features a patented mold that is easy to adjust and also has its own patent. This eliminates the need for frequent mold replacements, reducing both the associated hassle and material wastage.
2. It also features adjustable settings, ensuring customized and optimal output. Our high-speed synchronous cutting system ensures precision and efficiency.
3. The product is equipped with a PLC control system, enhancing operational control and ease of use.
4. Our product can be constructed on-site for added convenience.
5.
We offer high-quality products and services.
6.
Our system can process galvanized sheet and aluminum.
7.
Our equipment automatically produces spiral tubes.
8.
Our machine can produce spiral tubes in a variety of different diameters.
9.
Our machine can produce spiral tubes in a variety of different diameters.
10.
Our system includes a lack-of-material alarm.
11.
The system is able to generate ducts of specified lengths.
|
Diameter range
|
|
Φ100-Φ1500mm
|
|
|
|||
|
Thickness range
|
|
Galvanized plate:0.5-1.2mm
Stainless steel:0.4-1.0mm |
|
|
|||
|
Material width
|
|
137mm
|
|
|
|||
|
Uncoiler
|
|
Vertical type,maximum load:1200kg
|
|
|
|||
|
Sealing&locking
|
|
Outer surface of the pipe
|
|
|
|||
|
Feeding speed
|
|
0-35m/min,adjustable
|
|
|
|||
|
Cutter
|
|
Rolling type cutting
|
|
|
|||
|
Power system
|
|
Pneumatic power for cutting and turning material; Hydraulic power for discharge and roller compression
|
|
|
|||
|
Forming head mold
|
|
Made of steel(aluminum alloy casting optional)
|
|
|
|||
|
Total weight
|
|
2000kg
|
|
|
|||
|
Equipment sizes
|
|
Main machine:3.4*1.85*1.5m
discharge rack:2.1*1.2*1.1m |
|
|
|||
|
Total power
|
|
12.5kw
|
|
|
|||
|
Power supply
|
|
380V/50HZ/3ph(other power supply optional)
|
|
|
|||
|
Control console
|
|
Touchscreen
|
|
|
|||
Q:Is your company a trader or a factory?
A:We are a factory and have an independent trading department.
Q:Where is your company? Can I come and visit?
A:Our company is located in Maanshan City, Anhui Province, China, welcome to visit us.
Q:What is your payment method?
A:Bank transfer, or Alibaba online payment.
Q:Does your company provide after-sales service? What kind of after-sales service?
A:We provide one year warranty service and free replacement of non-man-made damaged parts.
Q:How long does it take to receive a reply to my inquiry?
A:We will reply your inquiry within 24 hours (working days).
Q:What are your working hours?
A:9am-5pm (weekdays).
Q:How is your quality control?
A:Every machine that comes out of the factory will go through strict testing to ensure that it reaches the customer and can be used normally.
Q:Do you support customization? Can I put my logo on the product?
A:Yes.
Q:What is the packaging of the product?
A:The machine is wrapped in plastic material and placed inside a customized wooden box.
Q:What is the minimum order quantity?
A:One piece.
Q:What information do I need to provide to get a quote? Do you have a quotation for the products?
A:Please provide the approximate length and thickness of the workpiece to be processed, please contact our customer service for details.
Q:How long is the delivery time?
A:Production is completed within two weeks.
