Quick Details
-
Country of Origin:
-
Shenzhen, Guangdong, China
-
Brand:
-
SDAPO
-
Power Consumption / Dissipation:
-
250 Watts maximum
-
Power Requirement:
-
100~240V AC, 50-60 Hz
-
Address Table:
-
8K entries
-
Switch Fabric:
-
52Gbps / non-blocking
-
Uplink Ports:
-
2 Gigabit uplink ports
Quick Details
-
Model Number:
-
PSE3216S
-
Application:
-
POE Network Switch
-
Type:
-
poe switch
-
Country of Origin:
-
Shenzhen, Guangdong, China
-
Brand:
-
SDAPO
-
Power Consumption / Dissipation:
-
250 Watts maximum
-
Power Requirement:
-
100~240V AC, 50-60 Hz
-
Address Table:
-
8K entries
-
Switch Fabric:
-
52Gbps / non-blocking
-
Uplink Ports:
-
2 Gigabit uplink ports
Products Description
Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.

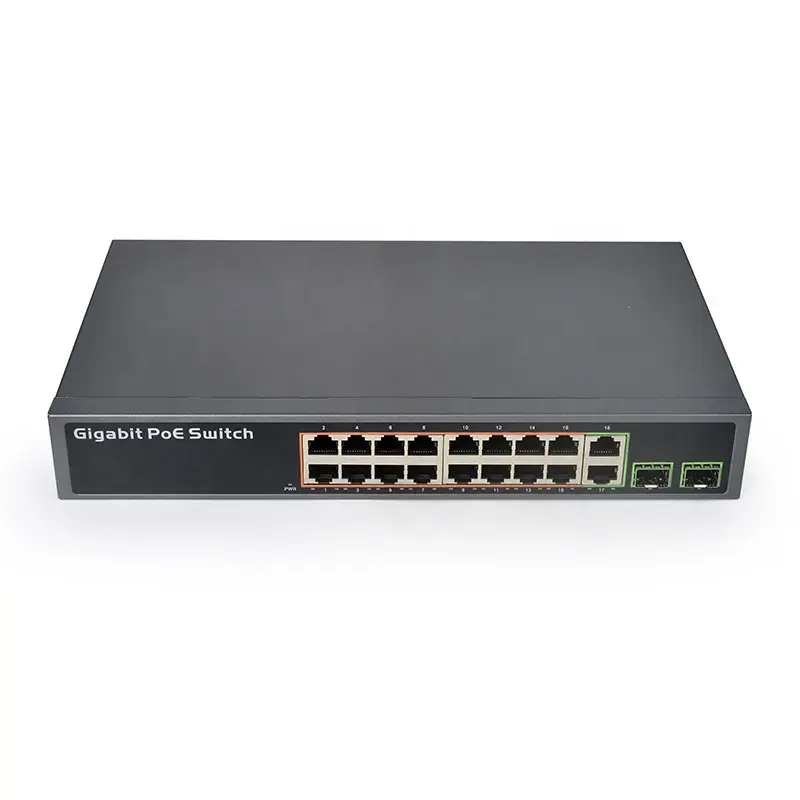

The 16 Port 10/100/1000Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels.
Ordering Information
Part Number Description
PSE3216S: 16-Port 10/100/1000Mbps PoE Switch +2 Gigabit uplink port + 2 Gigabit SFP port non-combo
1. Factory direct sales, quality assurance
2. Full interface POE power supply function port output power 30W
3. 16 Gigabit RJ45 ports + 2 Gigabit uplink ports + 2 Gigabit SFP portnon-combo
4. Anti-static super stability and safety Non-burning equipment
5. 1-year warranty
6. 250W total power supply
7. Backplane bandwidth 52Gbps (non-blocking)
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.
The 16 Port 10/100/1000Mbps PoE+ Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels.
Ordering Information
Part Number Description
PSE3216S: 16-Port 10/100/1000Mbps PoE Switch +2 Gigabit uplink port + 2 Gigabit SFP port non-combo
1. Factory direct sales, quality assurance
2. Full interface POE power supply function port output power 30W
3. 16 Gigabit RJ45 ports + 2 Gigabit uplink ports + 2 Gigabit SFP portnon-combo
4. Anti-static super stability and safety Non-burning equipment
5. 1-year warranty
6. 250W total power supply
7. Backplane bandwidth 52Gbps (non-blocking)
Port rate: 10/100/1000Mbps
POE protocol: IEEE802.3af/at
Number of POE ports: 16
Power supply power: 250W
POE pin position: 1,2+/3,6-
Maximum output power of single port: 30W
AC: 100~240VAC/50-60Hz
POE protocol: IEEE802.3af/at
Number of POE ports: 16
Power supply power: 250W
POE pin position: 1,2+/3,6-
Maximum output power of single port: 30W
AC: 100~240VAC/50-60Hz
High Performance Wire-Speed Switching
PSE3216S is a 16-port all Gigabit 16-port non-managed POE switch specially designed for security with POE function. It has the function of automatically detecting and identifying PD devices that meet the IEEE802.3af/at standard and powering them, so there is no need to go Worried about damaging private standard POE or non-POE equipment. PSE3216S is an economical choice for small business networks that use POE to deploy wireless access points (AP) and IP-based network surveillance cameras.
The PSE3216S POE switch can effectively solve the problems of anti-lock maintenance, wireless coverage, terminal equipment power acquisition, security monitoring engineering, and long engineering time, saving engineering costs to the greatest extent.
PSE3216S is a 16-port all Gigabit 16-port non-managed POE switch specially designed for security with POE function. It has the function of automatically detecting and identifying PD devices that meet the IEEE802.3af/at standard and powering them, so there is no need to go Worried about damaging private standard POE or non-POE equipment. PSE3216S is an economical choice for small business networks that use POE to deploy wireless access points (AP) and IP-based network surveillance cameras.
The PSE3216S POE switch can effectively solve the problems of anti-lock maintenance, wireless coverage, terminal equipment power acquisition, security monitoring engineering, and long engineering time, saving engineering costs to the greatest extent.
Features
*Up to 30W of Power on
*IEEE 802.3af /at
*Compatible With All IEEE 802.3af/at
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100/1000 Base-T applications
*Compact Design Fits Easily in WLAN Access
*IEEE 802.3af /at
*Compatible With All IEEE 802.3af/at
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100/1000 Base-T applications
*Compact Design Fits Easily in WLAN Access
*Plug-and-Play no configuration required
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
|
Hardware Specification
|
|
|
|
Copper Ports
|
16 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports with IEEE 802.3af/at PoE
|
|
|
Uplink Ports
|
2 Gigabit uplink ports
|
|
|
SFP/mini-GBIC Slots
|
2 1000Base-SX/LX/BX SFP interfaces
|
|
|
Switch Architecture
|
Store-and-Forward
|
|
|
Switch Fabric
|
52Gbps / non-blocking
|
|
|
Switch Throughput
|
38.688Mpps@64 bytes
|
|
|
Address Table
|
8K entries
|
|
|
Share Data Buffer
|
4Mbytes
|
|
|
Flow Control
|
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex |
|
|
LED
|
System:
Power ( yellow) 10/100 LINK / ACT(Green), 1000 LINK ( yellow) |
|
|
Dimension (W x D x H)
|
295mm*165mm*44mm, 1U height
|
|
|
Weight
|
2.5 kg
|
|
|
Power Requirement
|
100~240V AC, 50-60 Hz
|
|
|
Power Consumption / Dissipation
|
250 Watts maximum
|
|
|
Power over Ethernet
|
|
|
|
PoE Standard
|
IEEE 802.3af/at Power over Ethernet / PSE
|
|
|
PoE Power Supply Type
|
End-Span
|
|
|
PoE Power Output
|
Per Port 52V DC,
af:350mA . Max. 15.4 Watts at:600mA.Max.30W |
|
|
Power Pin Assignment
|
1/2(+), 3/6(-)
|
|
|
PoE Power Budget
|
250Watts
|
|
|
PoE Ability
|
Number of PD @13W watts:16
Number of PD @20 watts:12 |
|
|
Standards Conformance
|
|
|
|
Standards Compliance
|
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000Base-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
|
|
Environemmental
|
|
|
|
Operating
|
Working temperature: 0°-40°C
Working humidity: 10%-90% non-condensing, |
|
|
Storage
|
Storage temperature: -40°-70°
storage humidity: 5%-90% non-condensing |
|
