Quick Details
-
Product name:
-

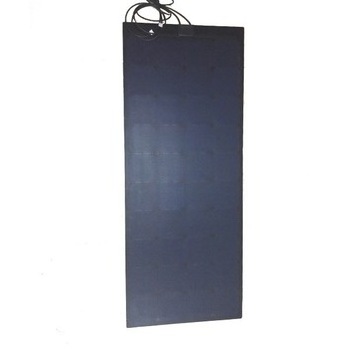

sunpower flexible solar panel 120w
-
Vmp:
-
12V 24V 36V or customized
-
Backsheet:
-
TPT Material
-
Color:
-
White/ black
-
Bendable:
-
30-90 degree
-
Junction Box:
-
IP67 waterproof
-
Connector:
-
MC4/DC or customized
-
Certificate:
-
CE IEC ROHS LVD SGS
-
Warranty:
-
10 years
-
Application:
-
car, Caravan, sailboat, tent etc projects
Quick Details
-
Max. Power:
-
120W
-
Material:
-
Monocrystalline Silicon
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
sunpower flexible solar panel 120w
-
Vmp:
-
12V 24V 36V or customized
-
Backsheet:
-
TPT Material
-
Color:
-
White/ black
-
Bendable:
-
30-90 degree
-
Junction Box:
-
IP67 waterproof
-
Connector:
-
MC4/DC or customized
-
Certificate:
-
CE IEC ROHS LVD SGS
-
Warranty:
-
10 years
-
Application:
-
car, Caravan, sailboat, tent etc projects
Hello friends, welcome to our Alibaba International Station. We manufacture solar panel 3-350w since 2009, all the panels with TUV, CE, RoHS certifications, OEM can be provided. And we can customize solar panels of any size and shape.
The solar panels that our company has been producing and selling at present include PET Sunpower/Mono flexible solar panel, ETFE Sunpower/Mono flexible solar panel, Mono/Poly glass solar panel, Mini solar panel, Solar charger and Foldable/Portable/Removeable solar Panel and so on.
Our flexible solar panels are widely used in many cars, sailboat, tent etc projects, glass solar panel are mostly used in systems projects. Our company's best-selling products are flexible solar panels and glass solar panels. Among them, 50w, 100w, 120w, 150w, 200w and 300w are deeply loved by consumers.
If the page you are entering is not the solar panel you are currently looking for, you can also send me an enquiry about the solar panel you are interested in or contact me directly via the contact details below. Please contact me if you have any requirements or questions. I will reply you in the first time. Best regards
Name: Bruce Chen
Mobile phone: +86 13297097325
WeChat/WhatsApp/Skype: +86 13297097325
E-mail: sales10 (at) shinesolartech.com
High Quality PET/ETFE USA Sunpower Cell 120w 100w 50w Semi Flexible Solar Panel
We can customize solar panels of any wattage, power and size. The following are commonly used solar panel parameters and hope to help you make better choices.
| ETFE Sunpower Semi-flexible solar panel | |||||||
| MODEL | PM/W | VOC/V | ISC/A | VMP/V | IMP/A | N/W(kg) | DIMENSION |
| SN-H18W |
18.0 |
23.7 | 1.0 | 19.4 | 0.9 | 0.3 | 434*277*3mm |
| SN-H25W |
25.0 |
21.6 | 1.5 | 18.0 | 1.4 | 0.4 | 560*277*3mm |
| SN-H30W |
30.0 |
21.2 | 1.8 | 17.6 | 1.7 | 0.5 | 535*378*3mm |
| SN-H50W |
50.0 |
21.2 | 3.1 | 17.6 | 2.8 | 0.8 | 545*535*3mm |
| SN-H60W |
60.0 |
21.0 | 3.8 | 17.5 | 3.4 | 1.1 | 725*535*3mm |
| SN-H90W | 90.0 | 18.5 | 6.3 | 15.2 | 5.9 | 1.5 | 920*540*3mm |
| SN-H100W | 100.0 | 21.6 | 6.0 | 17.8 | 5.6 | 1.8 | 1060*540*3mm |
| SN-H115W | 115.0 | 23.7 | 6.3 | 19.8 | 5.8 | 2.2 | 1185*540*3mm |
| SN-H120W | 120.0 | 26.4 | 5.9 | 22.0 | 5.5 | 2.3 | 1305*540*3mm |
| SN-H125W | 125.0 | 26.4 | 5.9 | 22.5 | 5.6 | 2.5 | 1315*540*3mm |
| SN-H135W | 135.0 | 29.5 | 5.8 | 24.9 | 5.5 | 2.6 | 1435*540*3mm |
| SN-H140W | 140.0 | 29.5 | 6.0 | 24.9 | 5.6 | 2.8 | 1435*540*3mm |
| SN-H150W | 150.0 | 29.0 | 6.8 | 24.2 | 6.2 | 3.0 | 1300*660*3mm |
| SN-H175W | 175.0 | 36.6 | 6.1 | 30.5 | 5.7 | 3.2 | 1185*800*3mm |
ETFE Sunpower flexible panel.
1.Use back-contact SunPower cell, is made from US, up to 22% efficiency, while most monocrystalline panels in the the market is 17%-19%, you will get greater power efficiency even though the panel is no larger than a traditional model
2.Self-cleaning: Be free from maintenance, rainfall cleans the dirt due to its nonstick surface.
2.Tear resistant, corrosion resistant and fire resistance.
3. Featuring with honey - comb structure which enhance 10% natural lighting, high transparency(95%) to ultra-violet light.
4. Long life and recyclable, the age of ETFE laminated membrane is up to 25 years, later it could be frited for other use, 100% recyclable.
5.Thin and lightweight: 2.5-3mm thickness, 1.4kg only,easier to hang and install on tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models, like Greenhouse roof, tent etc projects.
6.Flexible: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas.
7.installation: Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.
8.The junction box can place on front side, so can instal panel on roof flatly.
This kind of solar panel can be widely used in the field of Electric Golf Car, Patrol Car,Travel Tourism Car, Yacht, Caravans/Popup Off-Grid and Remote Communication sites,Roof Power generation, Backpack, Tent and so on. Main advantage is higher efficient in producing power, more light in weight and more water proof and durable in long use.
So compared with the PET encapsulation sunpower flexible solar panel,the ETFE panels are Highly resistant to seawater corrosion; Waterproof and highly resistant to the harsh operating conditions of a marine environment.
