Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NEG9RC.27
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1762*1134*30mm
-
Product name:
-

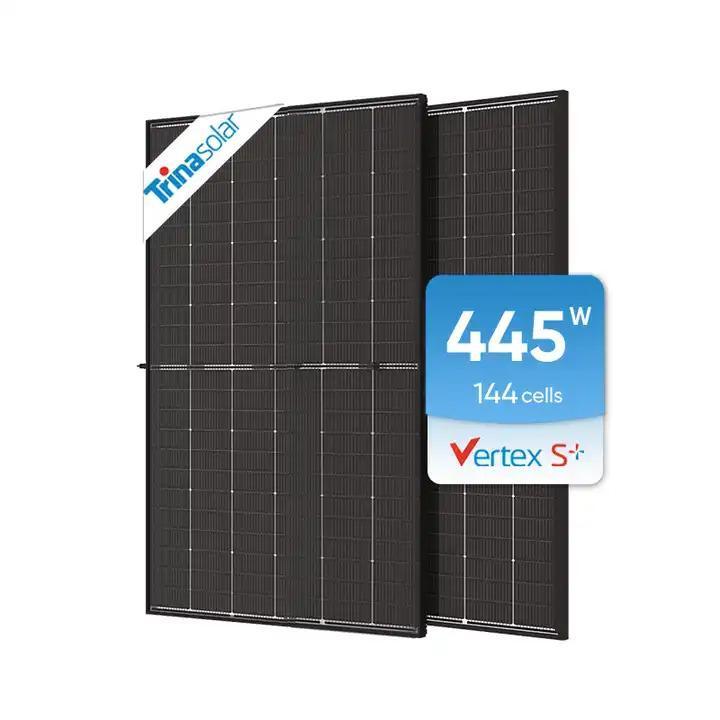

Trina TSM-NEG9RC.27
-
Brand:
-
Trina Solar
-
Size:
-
1762*1134*30mm
-
Loading capacity:
-
36pcs/pallet,936pcs/40HQ container
-
Color:
-
Black
-
Solar cell:
-
210*210mm
-
Power:
-
415-445W
-
Power Tolerance:
-
0~+5w Tolerance
-
Keyword:
-
DUAL GLASS SOLAR PANEL
-
Maximum system Voltage:
-
1500V DC
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.3%
-
Warranty:
-
30 years
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NEG9RC.27
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1762*1134*30mm
-
Product name:
-
Trina TSM-NEG9RC.27
-
Brand:
-
Trina Solar
-
Size:
-
1762*1134*30mm
-
Loading capacity:
-
36pcs/pallet,936pcs/40HQ container
-
Color:
-
Black
-
Solar cell:
-
210*210mm
-
Power:
-
415-445W
-
Power Tolerance:
-
0~+5w Tolerance
-
Keyword:
-
DUAL GLASS SOLAR PANEL
-
Maximum system Voltage:
-
1500V DC
PRODUCT PARAMETERS
|
ELECTRICAL DATA (STC)
|
|
|
|
|
|
|
||||||
|
Peak Power Watts-PMAX (Wp)*
|
420W
|
425W
|
430W
|
435W
|
440W
|
445W
|
||||||
|
Power Tolerance-PMAX (W)
|
0 ~ +5
|
|
|
|
|
|
||||||
|
Maximum Power Voltage-VMPP(V)
|
42.5
|
42.9
|
43.2
|
43.6
|
44.0
|
44.3
|
||||||
|
Maximum Power Current-IMPP(A)
|
9.89
|
9.92
|
9.96
|
9.99
|
10.01
|
10.05
|
||||||
|
Open Circuit Voltage-VOC (V)
|
50.5
|
50.9
|
51.4
|
51.8
|
52.2
|
52.6
|
||||||
|
Short Circuit Current-ISC (A)
|
10.53
|
10.56
|
10.59
|
10.64
|
10.67
|
10.71
|
||||||
|
Module Efficiency η m (%)
|
21.0
|
21.3
|
21.5
|
21.8
|
22.0
|
22.3
|
||||||
|
MECHANICAL DATA
|
|
|
|
|
|
|
||||||
|
Solar Cells
|
Monocrystalline
|
|
|
|
|
|
||||||
|
No. of cells
|
144 cells
|
|
|
|
|
|
||||||
|
Module Dimensions
|
1762×1134×30 mm (69.37×44.65×1.18 inches)
|
|
|
|
|
|
||||||
|
Weight
|
21.0kg (46.30 lb)
|
|
|
|
|
|
||||||
|
Front Glass
|
1.6 mm (0.06 inches)
|
|
|
|
|
|
||||||
|
Encapsulant material
|
POE/EVA
|
|
|
|
|
|
||||||
|
J-Box
|
IP 68 rated
|
|
|
|
|
|
||||||
|
Cables
|
Photovoltaic Technology Cable 4.0mm2 (0.006 inches2),
Portrait: 350/280 mm(13.78/11.02 inches),Length can be customized
|
|
|
|
|
|
||||||
|
Connector
|
MC4 EVO2 / TS4*
|
|
|
|
|
|
||||||
|
PACKAGING CONFIGUREATION
|
|
|
|
|
|
|
||||||
|
Modules per box
|
36 pieces
|
|
|
|
|
|
||||||
|
Modules per 40’ container
|
936 pieces
|
|
|
|
|
|
||||||
PRODUCT PRESENTATION
PRODUCT CATEGORY
COMPANY PROFILE
FAQ
1. What is your pricing strategy?
For overseas markets, we will offer competitive prices to support a strong distributor in every area, and graduallyestablishoverseas service agency, as a good opportunity, some long-term cooperation partners wil cooperate with us to sign theannual cooperation agreement (including execution price).
2. How about Quality Control?
OS9002 could help us to realize the factory management control and our ERP system can help us to control the cost ofprocurement links efectively, so we can provide competitive price. New test system could do uninterrupted fatiguetesting to ensure its using life. Pre-shipment inspection and third-party supervision are available and welcome
3. How to deliver?
We can make delivery by air or by sea, you are suggest to choose delivery by sea to reduce cost for order over 10 sets
