1. No water tank on roof
2. Pressure hot water, comfort washing
3. Collector module designed for freely assemble
4. Completely automatic operation
5. Can be combined with traditional auxiliary energy resource
6. Suit for climate where there have a risk of freezing.
7. No water inside, no w
ater scale
8. SolarKeymark certified.
- Product Details
- {{item.text}}
Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunrain/ OEM
-
Model Number:
-
TZ58/1800- R5
-
Material of manifold:
-
Aluminum alloy
-
Frame material:
-
Aluminium Alloy
-
Manifold connection:
-
3/4' 1/2' 1' 22mm
-
Vacuum Tube Type:
-
heat pipe
-
Condensor diameter:
-
14mm
-
Warranty time:
-
5 years
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunrain/ OEM
-
Model Number:
-
TZ58/1800- R5
-
Material of manifold:
-
Aluminum alloy
-
Frame material:
-
Aluminium Alloy
-
Manifold connection:
-
3/4' 1/2' 1' 22mm
-
Vacuum Tube Type:
-
heat pipe
-
Condensor diameter:
-
14mm
-
Warranty time:
-
5 years
Product Introduction
Heat pipe solar collector
Model: TZ58/1800- R5 series
The Evacuated tubes collector or Vacuum tubes collector,
also referred as
Vacuum Tube Solar Water Heater
,
consists of a number of rows of parallel transparent glass tubes connected to a header pipe and where the heat transfer fluid circulates and absorb heat generated by tubes.
These glass tubes are cylindrical in shape. Therefore, the angle of the sunlight is always perpendicular to the heat absorbing tubes which enables these collectors to perform well even when sunlight is low such as when it is early in the morning or late in the afternoon, or when shaded by clouds.
Evacuated tube collectors are particularly useful in areas with cold, cloudy wintry weathers (most of Canada and the northern part of the US).
Overall Structure Diagram
with F
lat Roof
Mounting Bracket (Option)
Working principle
How do Vacuum Tube Solar Water Heaters work?
Inside the each glass tube, a curved aluminium fin is attached to a heat pipe running through the inner tube. The fin is covered with a selective coating that transfers heat to the fluid that is circulating through the pipe.
This sealed copper heat pipe transfers the solar heat via convection of its internal heat transfer fluid to a “hot bulb” that
indirectly heats a copper manifold within the header tank.
indirectly heats a copper manifold within the header tank.
These copper pipes are all connected to a common manifold which is then connected to a storage tank, thus heating the hot water during the day. The hot water can then be used at night or the next day due to the insulating properties of the tank.
Technical data
Heat pipe solar collector
Model: TZ58/1800- R5
|

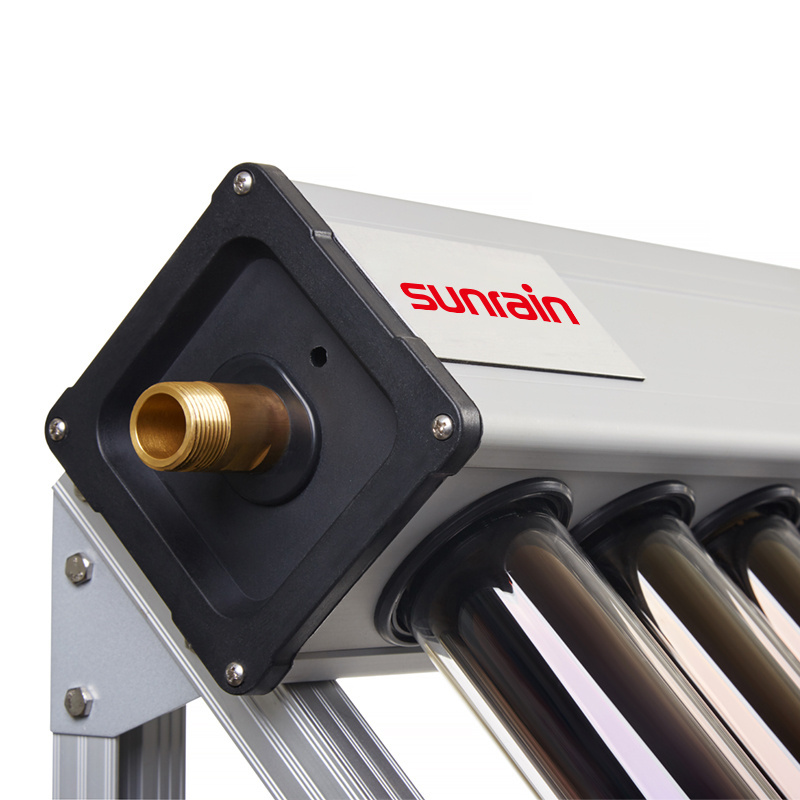

Manifold
|
|
|
||
|
Material
|
aluminum alloy
|
|
||
|
Insulation
|
polyurethane
|
|
||
|
Thickness of copper pipe inside (mm)
|
1
|
|
||
|
Nipple size
|
1"or 3/4" or 22mm (option)
|
|
||
|
Heat pipe vacuum tube
|
|
|
||
|
Material of vacuum tube
|
borosilicate Glass
|
|
||
|
Diameter/Length
|
Φ58/1800mm
|
|
||
|
Tube qty
|
10/15/20/25/30
|
|
||
|
Material of heat pipe
|
copper
|
|
||
|
Diameter of condenser (hot bulb)
|
14mm
|
|
||
|
Frame
(front pole, cross bar, horizontal bar, assistant bar, rear pole, level bar)
|
|
|
||
|
Material
|
aluminum alloy
|
|
||
|
Angle
|
45°/30°/0°
|
|
||
Key Features
Heat pipe solar collector characteristic
Product Application
Heat pipe solar collector, also
suitable for sloping roof, with a perfect combination of modern architecture.
Heat pipe solar collector, not only for household use, it's also a good choice for hotel, hospital, holiday resort, factory and other large amount of hot water demand project.
