Quick Details
-
Model Number:
-
M1
-
Max. Current:
-
5a
-
Color:
-
white,black ,golden
-
Voltage:
-
110-250V
-
Certifications:
-
CE,ROHS
-
Material:
-
Glass or ALum
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bingoelec
-
Model Number:
-
M1
-
Max. Current:
-
5a
-
Color:
-
white,black ,golden
-
Voltage:
-
110-250V
-
Certifications:
-
CE,ROHS
-
Material:
-
Glass or ALum
-
Certification:
-
CE
Products Show
Touch Switch List
|
Switch Type
|
Product Name
|
Wattage
|
Voltage
|
|
|
1gang 1way touch switch
|
1000w
|
110-240V AC
|
|
|
2gang 1way touch switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
|
3gang 1way touch switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
1Way Remote Touch Switch
|
1gang 1way remote switch
|
1000w
|
110-240V AC
|
|
|
2gang 1way remote switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
|
3gang 1way remote switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
2Way Touch Switch
|
1gang 2way touch switch
|
1000w
|
110-240V AC
|
|
|
2gang 2way touch switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
|

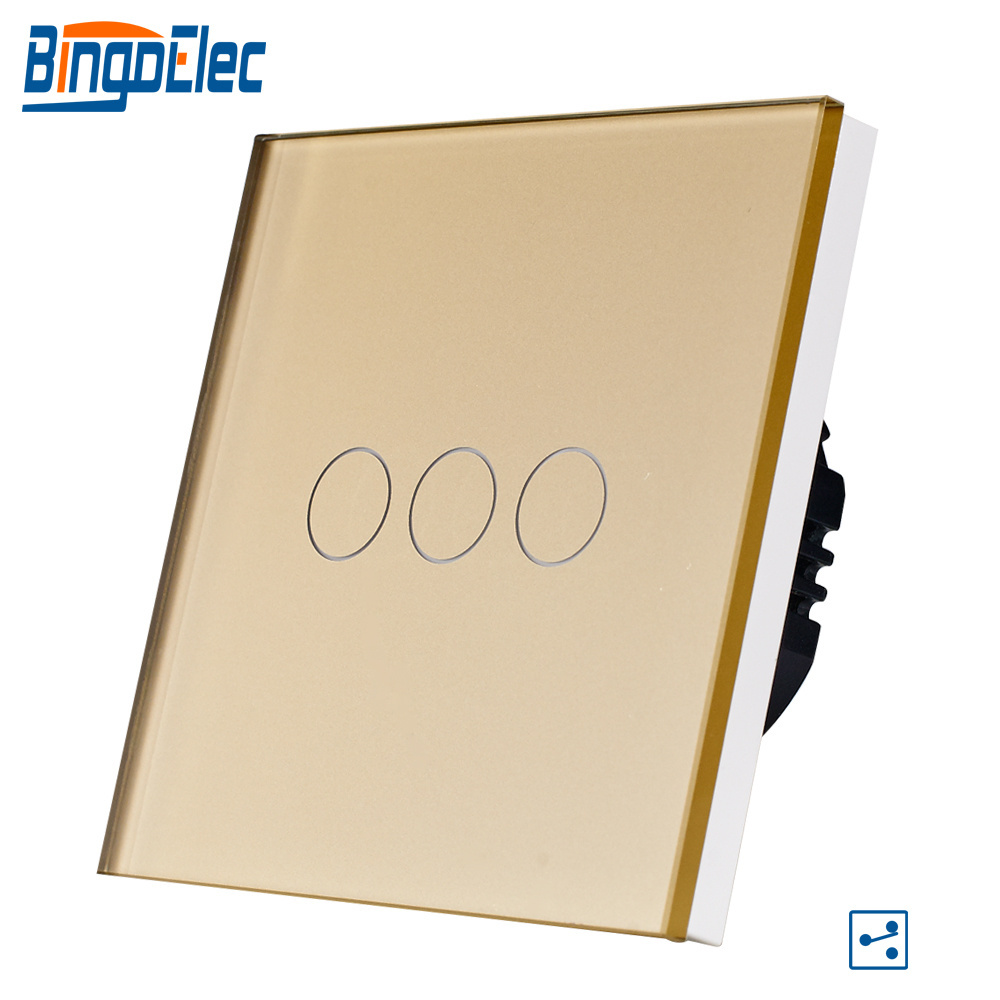

3gang 2way touch switch
|
1000w/gang,2000W total
|
110-240V AC
|
|
|
1gang 2way remote
|
1000w
|
110-240V AC
|
|
|
2gang 2way remote
|
1000w/gang,2000W total
|
110-240V AC
|
|
1Way Dimmer switch
|
1gang 1way dimmer
|
700W
|
110-240V AC
|
|
|
2gang 1way dimmer
|
700w total
|
110-240V AC
|
|
|
1gang 1way remote dimmer
|
700W
|
110-240V AC
|
|
|
2gang 1way remote dimmer
|
700w total
|
110-240V AC
|
|
|
1gang 2way dimmer
|
200W
|
110-240V AC
|
|
|
1gang 2way remote dimmer
|
200w
|
110-240V AC
|
|
Curtain Switch
|
curtain touch switch
|
2000W
|
110-240V AC
|
|
|
remote curtain touch switch
|
2000W
|
110-240V AC
|
|
Bell Switch
|
1gang bell touch switch
|
1000w
|
110-240V AC
|
|
Touch Delay Switch
|
touch delay witch,90 or 360seconds delay
|
1000w
|
110-240V AC
|
Product Description
|
Product Name
|

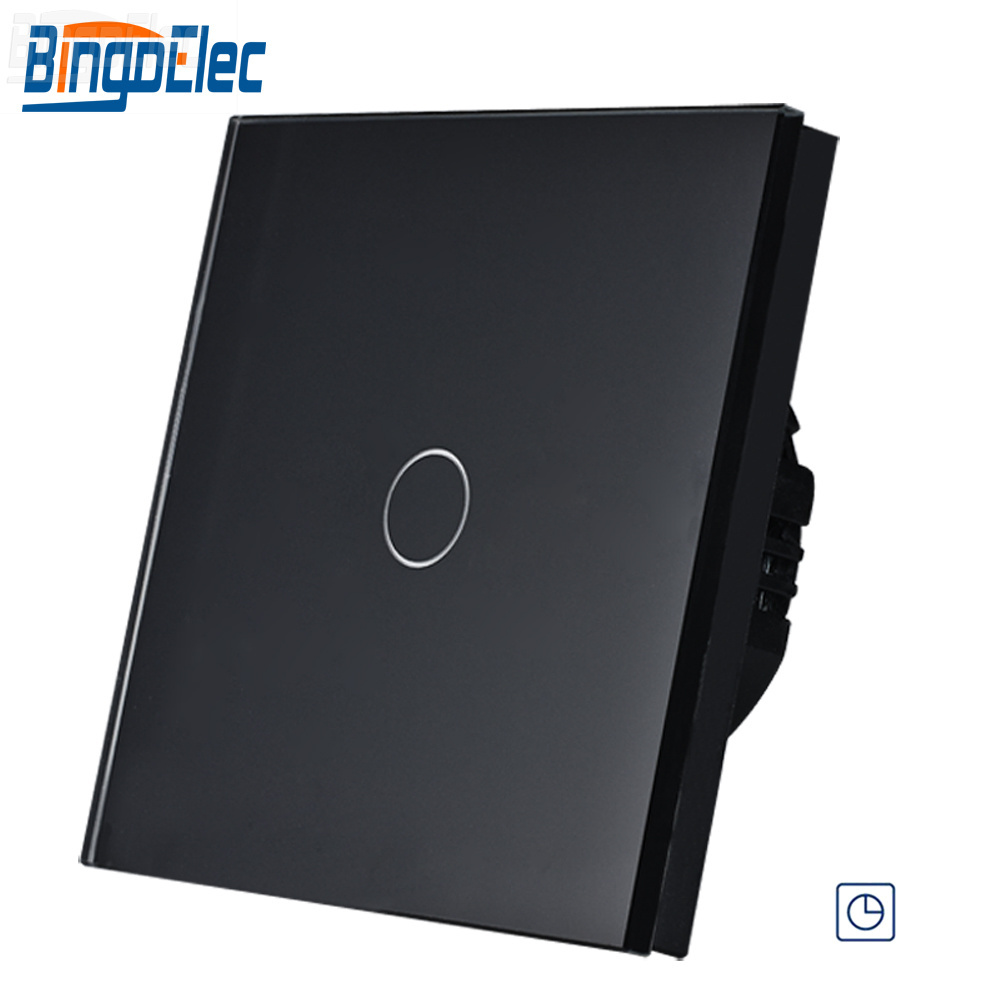

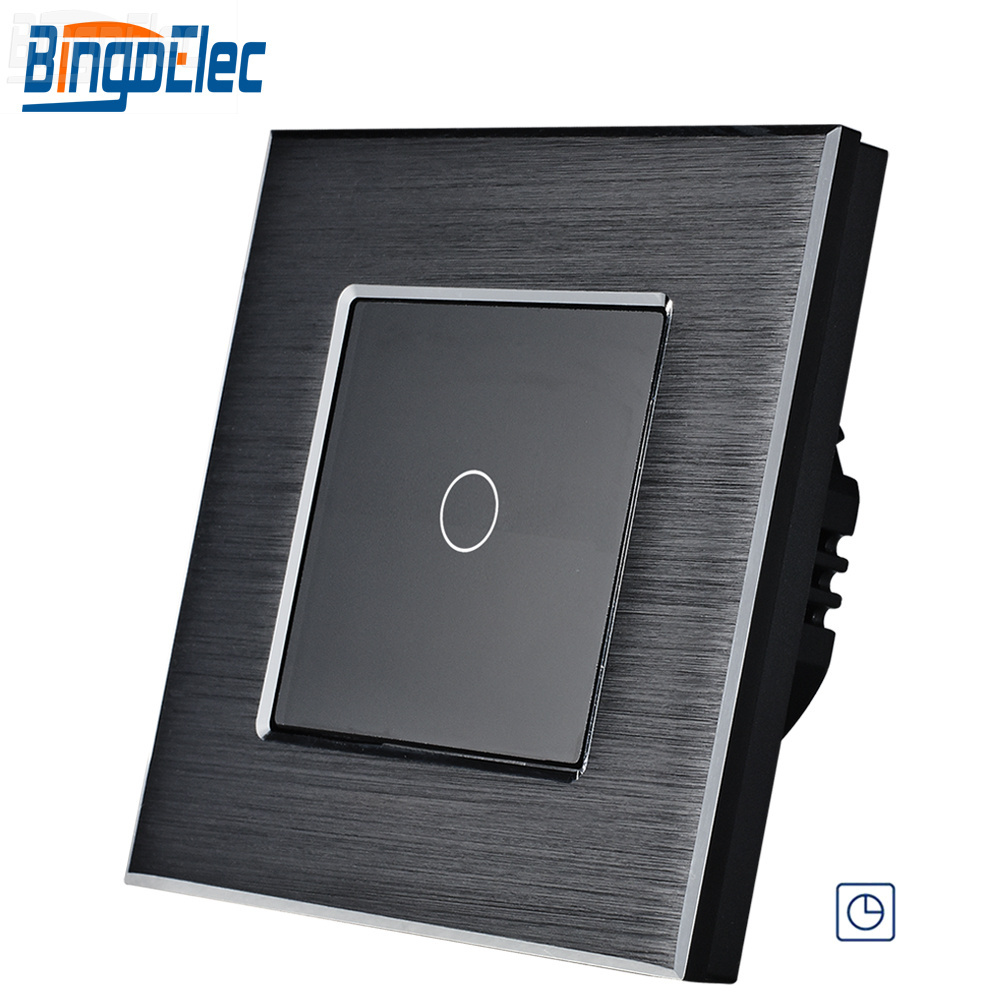

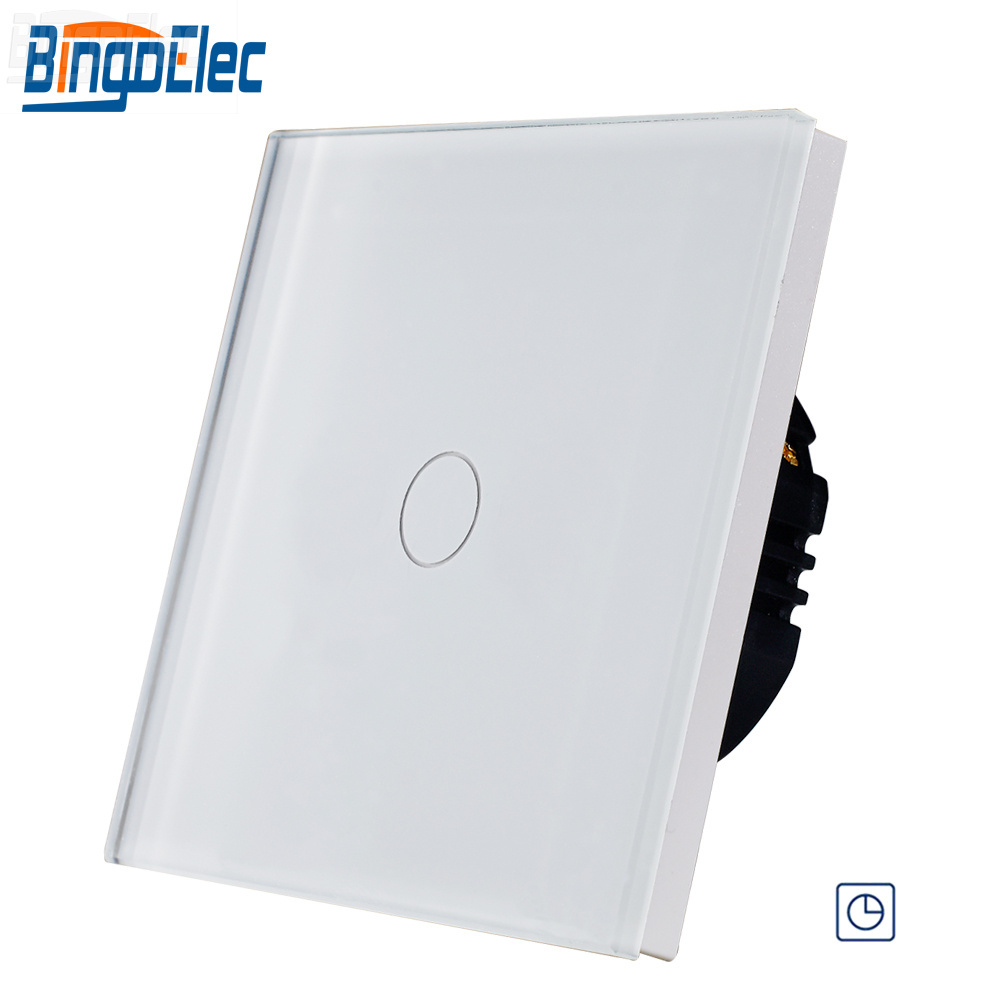

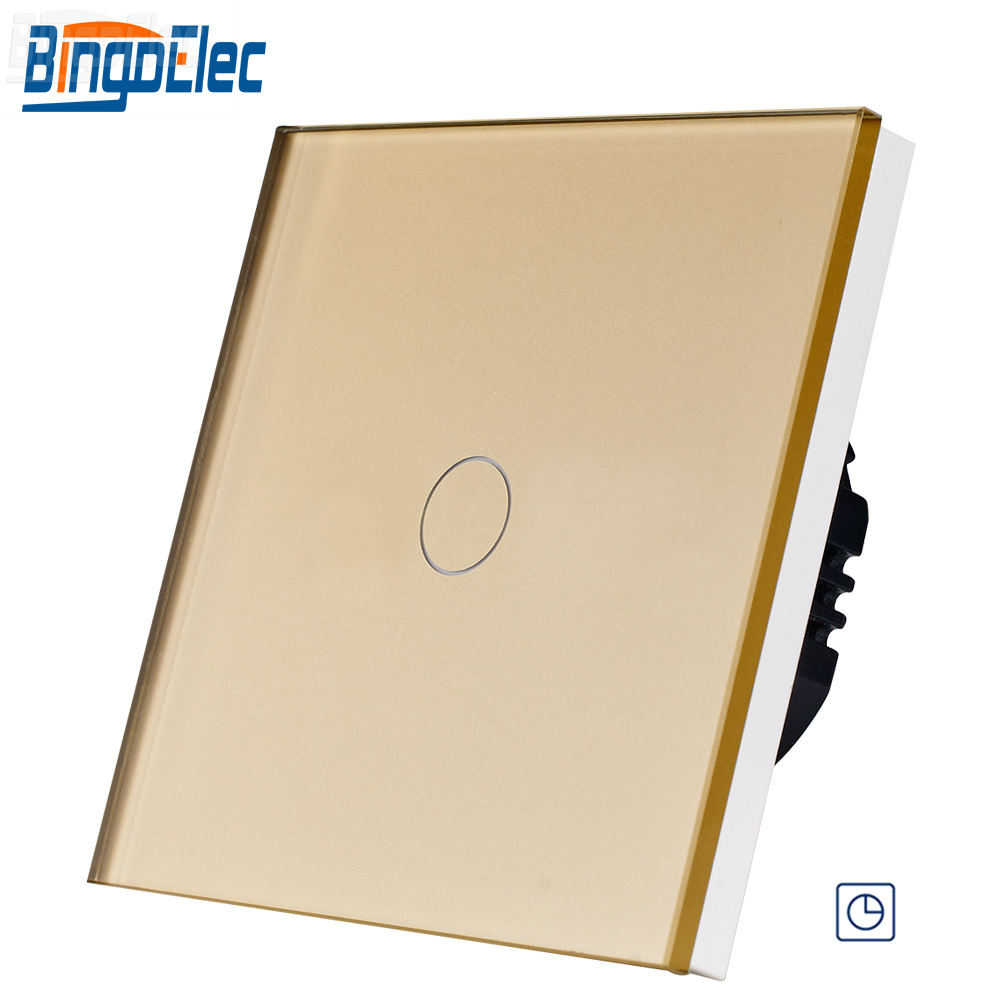

Bingoelec 90seconds 360seconds delay timer switch
|
|
Material
|
4mm toughened glass panel, 1.35mm iron frame and PC base
|
|
Load power
|
3-1000W/gang, total 2000W
|
|
Work temperature
|
-20°C-70°C
|
|
Mechanical Life
|
100,000 on-off times
|
|
Panel size
|
86*86mm,86*157mm,86*228mm,86*299mm available
|
|
Capability allowance
|
-15%~+10%
|
|
Base
|
round base
|
Our Advantages
1.test shows that our switch can work well even under 97% humidity.
2.strong anti-interference ability,test shows that our switch still work well under 100% interference conditions.
3.Good antistatic performance,test shows that our switch can work well under 30KV high voltage static electricity conditions.
4. product itself low power consumption 0.02W.
5.Our touch switch has function of automatic recognition whether there is load or not. For 2gang and 3gang touch switch, if there is no load or the lamp cannot work for one terminal, this terminal will be no power ( led back light not on if you touch it. switch much stable, one lamp on or off will never cause the other lamps flash), this function is first in the touch switch industry.
6.Top-grade PC plastic material. Cannot fire(Fire-resistant).
7.Modular design.Can match freely with frame and function parts. Easier to install.
8.backlight: the circle has blue backlight when light on, and has weak blue light(visable in dark) when light off.
