The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.
- Product Details
- {{item.text}}
Quick Details
-
Loading capacity:
-
≥ 80 m³/h
-
Overall machine mass:
-
8000 KG
-
Digging width:
-
4800mm
-
Digging Depth:
-
550mm
-
Digging Height:
-
2800mm
-
Digging distance:
-
1600mm
-
Unloading height:
-
1700mm
-
Unloading distance:
-
1800mm
-
Grade ability:
-
±25°
-
Main motor power:
-
45 KW
Quick Details
-
Weight (KG):
-
3150
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Yonglitong
-
Loading capacity:
-
≥ 80 m³/h
-
Overall machine mass:
-
8000 KG
-
Digging width:
-
4800mm
-
Digging Depth:
-
550mm
-
Digging Height:
-
2800mm
-
Digging distance:
-
1600mm
-
Unloading height:
-
1700mm
-
Unloading distance:
-
1800mm
-
Grade ability:
-
±25°
-
Main motor power:
-
45 KW
Product Description
|

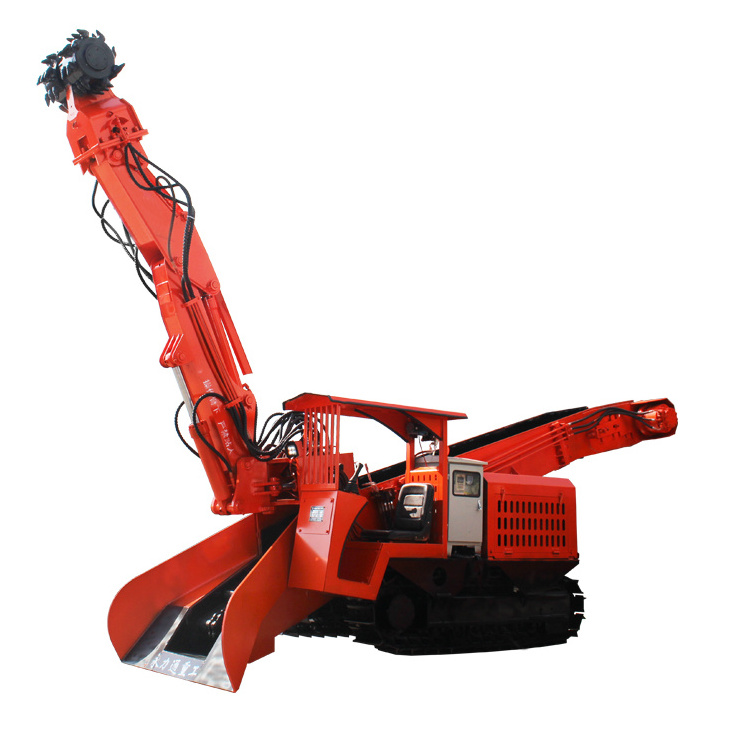

Model
|
Unit
|
ZWY-1.7M-80T
|
|
Loading capacity
|
m³/h
|
≥80
|
|
Overall machine mass
|
kg
|
8000
|
|
Digging width
|
mm
|
4800
|
|
Digging Depth
|
mm
|
550
|
|
Digging Height
|
mm
|
2800
|
|
Digging distance
|
mm
|
1600
|
|
Unloading height
|
mm
|
1700
|
|
Unloading distance
|
mm
|
1800
|
|
Climbing slope
|
°
|
±25
|
|
Main motor power
|
KW
|
45
|
|
Traveling speed
|
L/min
|
60-85
|
|
Applicable tunnel dimension
|
m
|
2.6*2.6
|
|
Milling head diameter
|
mm
|
460
|
|
Milling Head Width
|
mm
|
690
|
|
Milling head speed
|
mm
|
40-80
|
|
Milling head flow
|
L/Min
|
60-85
|
Certifications
Detailed Images
Working arm
Conveying belt
It is made of high hardness material. The special design is to ensure the successful conveying of the rock.
Chassis
Walking hydraulic motor adopts pre installation, porlong the service life.
Hydraulic system
After many times updating, the whole design is advanced and top. The hydraulic system adopts famous brand at home and abroad, so it can ensure working stability. It is controlled by the secondary, equipped with imported hydraulic joystick.
Why Choose Us
Trust your choose, we are the best.
1. We are a factory and we only produce slag scrapers, so we are professional and offer good prices.You can come and visit anytime.
2. "Yonglitong" is a well-known brand in the industry. It is also a guarantee of quality.
3. You can contact us at any time for any questions. Our services come in action.
4. Rich export experience, products are exported to Southeast Asia, Central Asia, South America, and Africa.
