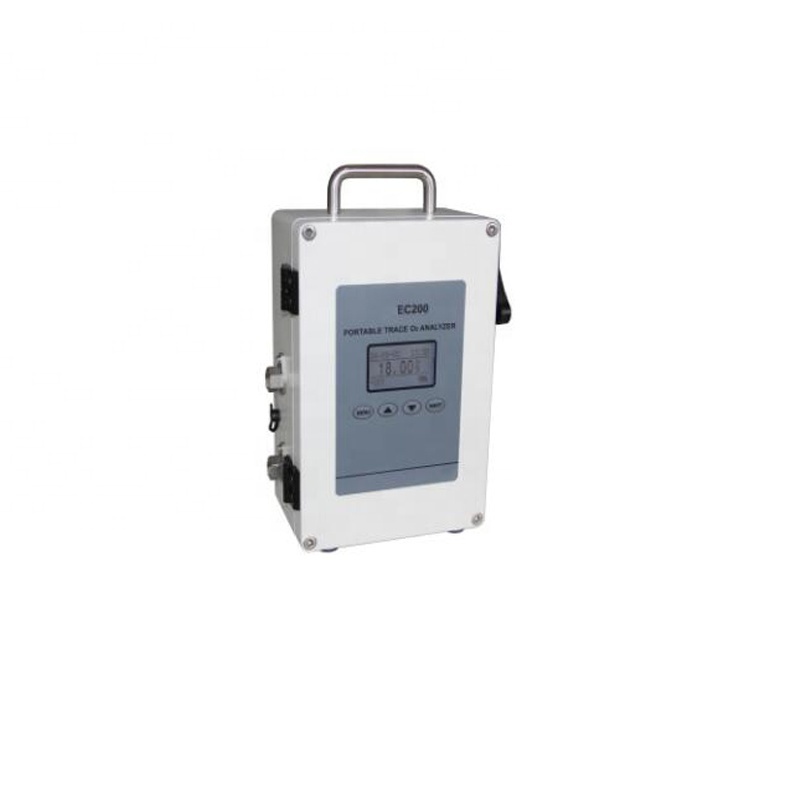

Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer

Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer

FOB Reference Price: Get Latest Price
≥1 Sets
US $7000
≥10 Sets
US $6500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
no
Model Number:
JY-EC200
Product name:
Portable Explosion-proof Oxygen O2 Analyzer
Measuring Principle:
Fuel Cell Principle
Measuring Range:
0 ~ 10/100/1000ppm, 0 ~ 25.00% O2
Response Time:
T90≤60S
Repeatability:
≤±1%FS
Sample Gas Flow:
600 ~ 800ml/min
Installation method:
Portable
Keywords:
Portable Explosion-proof Oxygen O2 Analyzer
Explosion-proof grade:
Exib IIC T4
Sampling Method:
Access type

Quick Details

Type:
Research
Warranty:
1 year
Place of Origin:
Henan, China
Brand Name:
no
Model Number:
JY-EC200
Product name:
Portable Explosion-proof Oxygen O2 Analyzer
Measuring Principle:
Fuel Cell Principle
Measuring Range:
0 ~ 10/100/1000ppm, 0 ~ 25.00% O2
Response Time:
T90≤60S
Repeatability:
≤±1%FS
Sample Gas Flow:
600 ~ 800ml/min
Installation method:
Portable
Keywords:
Portable Explosion-proof Oxygen O2 Analyzer
Explosion-proof grade:
Exib IIC T4
Sampling Method:
Access type

Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer

Product Description

Features
LCD display, intuitive display, easy to operate;
Using imported fuel cell oxygen sensor, it has fast response, high measurement accuracy, good linearity, long calibration period, weak acid resistance and weak alkali resistance.
Automatic temperature compensation function to reduce the error caused by temperature change on the measurement;
Any point calibration within the entire range, no need for multi-point calibration, making calibration easy and convenient;
Simple operation, long service life and easy maintenance;
Continuous use for more than 60 days after fully charging (without U disk).

Application
It is applied to the online measurement of hydrogen content in the ammonia decomposition and protective atmosphere equipment and the hydrogen content of the welding and cutting ratio in the explosion-proof grade Ex ia IIC T4; on-line monitoring of trace hydrogen content in the hydrogenation purification nitrogen generator.

Technical Parameters

Measuring Principle

Fuel Cell

Display Mode

128×64 lattice LCD

Measuring Range

0 ~ 10/100/1000ppm , 0 ~ 25.00% O2

(different ranges are available: constant or micro)

Measuring Accuracy

0 ~ 1000ppm /1.00% / 25.00%≤±1%FS

0 ~ 100ppm≤±2%FS

0 ~ 10ppm≤±5%FS

Repeatability

≤±1%FS

Response Time

T 90 60S

Output interface

Charging port, USB interface

Environment Temperature

-1 0 ~ +5 0℃

Environment humidity

<80%RH

Sample Gas Temperature

0 ~ 4 0℃

Sampling Method

Access type

Sample Gas Flow

6 00 ~ 8 00ml/min

Sample Gas Pressure

0.05Mpa≤ Inlet gauge pressure ≤0.35Mpa, stable pressure atmosphere

Background gas

N2 or inert gas, reducing gas and hydrocarbon mixture, etc

Service Life

> 24 months (Under normal use conditions)

Explosion-proof grade

Exib IIC T4

Weight

3.6Kg

Gas circuit interface

NPT 1/8 internal thread

Battery Capacity

4.2V/4400mA

Power supply

AC100~240V 50/60Hz

Installation method

Portable

Packaging & Shipping

Plastic paper inside, polyfoam filled, wooden box outside or as your requirement.

Shipping and transportation as customer request. Generally, our mode of transport are by sea, by air or rail transport .
