Quick Details
-
Brand Name:
-
NEW FELLOW
-
Model Number:
-
NF-A7
-
Type:
-
First-Aid Devices
-
N.W:
-
43kg
-
Max knee angle:
-
35 deg
-
Load-bearing:
-
250kg
-
Packing size:
-
197*68*40cm
-
Packing:
-
1PC/CTN
-
OEM&Design:
-
Available
-
Certificates:
-
CE/ISO
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NEW FELLOW
-
Model Number:
-
NF-A7
-
Type:
-
First-Aid Devices
-
N.W:
-
43kg
-
Max knee angle:
-
35 deg
-
Load-bearing:
-
250kg
-
Packing size:
-
197*68*40cm
-
Packing:
-
1PC/CTN
-
OEM&Design:
-
Available
-
Certificates:
-
CE/ISO

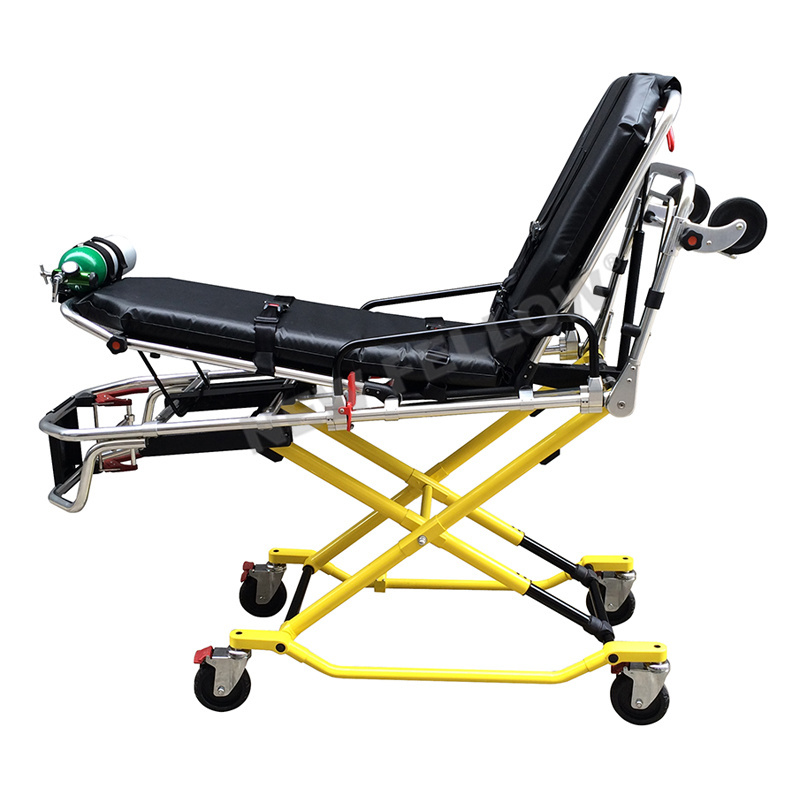

X-Frame Ambulance Equipment
Technical features:
X-frame ambulance equipment is easily raised when loading
When unloading, the safety U-bar will hold the stretcher on ambulance until the operator release it
Breakaway head section
Adjustable height
The backrest can be adjusted from 0 - 65 deg by gas spring
Swing-down side rails to protect patient when transfer
Only one person or two person can raise and slide the stretcher on to the ambulance
The X-frame ambulance equipment can be locked by the fixing device when it is in the ambulance
The X-frame ambulance equipment is made of high-strength aluminum alloy
φ 150mm wide rubber castors
Mainly used for ambulance, hospitals, emergency centers
Accessories:
Waterproof seamless welding PVC mattress(8cm thickness foam)
3pcs belts for chest, hip and knee
Fixing device L04
Optional:
IV pole
Pillow
|
Model |
High position |
Low position |
Max angle of the back |
Max angle of the knee part |
N.W |
Load Bearing |
Packing |
||
|
Quantity |
Size(L*W*H) |
G.W |
|||||||
|
NF-A7 |
195×56×100cm |
195×56×38cm |
75° |
35° |
43kg |
250kg |
1 |
197×68×40cm |
60kg |
Product : If the X-frame ambulance equipment is damaged under normal use conditions, without human factors, from the date of purchase, we supply two years warranty and lifetime service. During the warranty period, if the product has any quality problems, our company will provide free repair or replacement service.
On line : we have professional sales team, different market, different person, you can contact us by etc at any time. We are always ready.
