Quick Details
-
Model Number:
-
AZM 170-11ZRKA
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 °C-+60 °C
-
Max. Current:
-
250 V
-
Type:
-
Switch
-
Condition:
-
Original new
-
Package:
-
Original Package
-
Rated impulse withstand voltage Uimp:
-
4 kV
-
Thermal test current:
-
6 A
-
Rated control voltage:
-
24 VAC/DC
-
Switching element:
-
NO contact, NC contact
-
Switching principle:
-
Slow action
-
Switching frequency:
-
1,000 /h
-
Latching force:
-
30 N
Quick Details
-
Max. Voltage:
-
10 W
-
Place of Origin:
-
Germany
-
Brand Name:
-
Original
-
Model Number:
-
AZM 170-11ZRKA
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 °C-+60 °C
-
Max. Current:
-
250 V
-
Type:
-
Switch
-
Condition:
-
Original new
-
Package:
-
Original Package
-
Rated impulse withstand voltage Uimp:
-
4 kV
-
Thermal test current:
-
6 A
-
Rated control voltage:
-
24 VAC/DC
-
Switching element:
-
NO contact, NC contact
-
Switching principle:
-
Slow action
-
Switching frequency:
-
1,000 /h
-
Latching force:
-
30 N

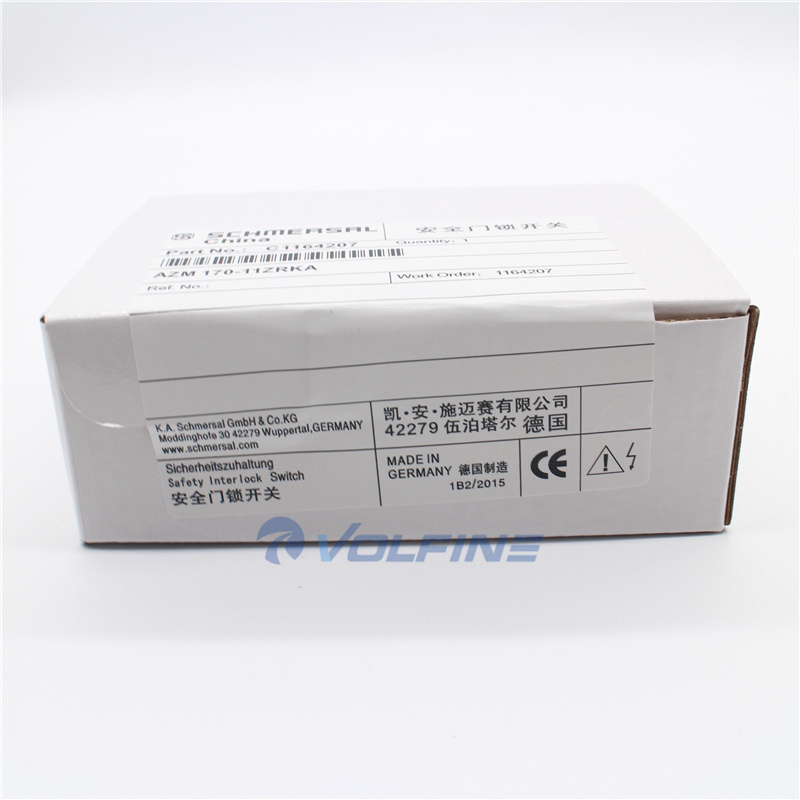

Schmersal safety door switch AZM 170-11ZRKA
- 1 Cable entry M 20 x 1.5
- IDC method of termination
- Manual release
- Thermoplastic enclosure
- Double-insulated
- Compact design
- Interlock with protection against incorrect locking.
- Long life
- High holding force
| Type of safety switch | bolting |
| Manufacturer series | AZM 170 |
| Contacts configuration | NC + NO |
| Number of key entry slots | 2 |
| IP rating | IP67 |
| Electrical connection | M20 |
| Body material | plastic |
| Colour | black |
| Contacts electrical parameters | 24V DC / 4A, 250V AC / 4A |
| Mechanical durability | 1000000 cycles |
| Operating temperature | -25...60°C |
| Related items | 101122893, 101122895 |
| Body dimensions | 90x84x30mm |
| Force | 1000N |
| Leads | spring clamps |
| Safety switches features | latching force 30N |
| no key | |
| power to lock | |
| Supply voltage | 24V AC |
| 24V DC | |
| Gross weight | 325.9 g |
|
|
