Quick Details
-
Brand Name:
-
ACS
-
Product Name:
-

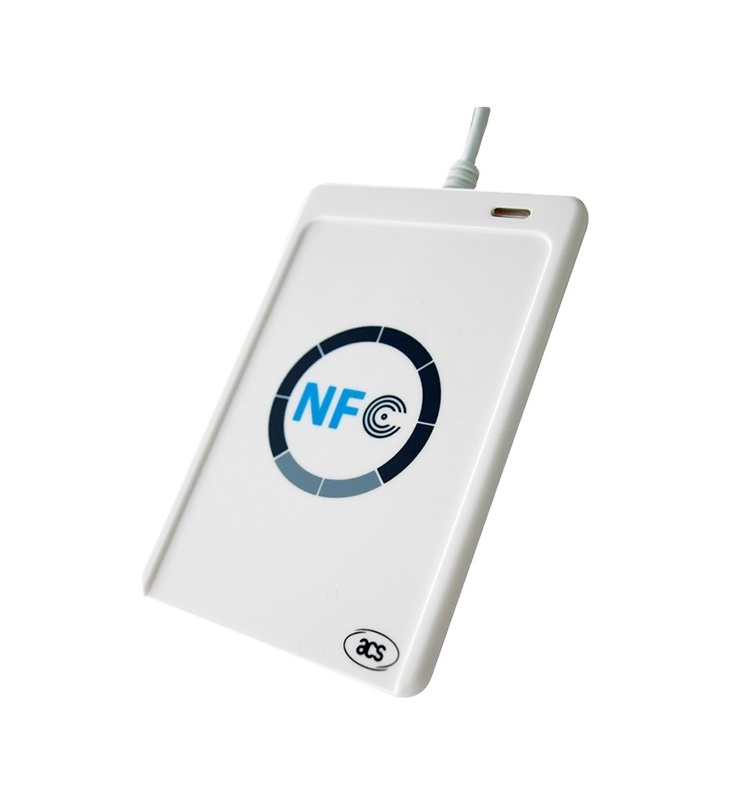

RFID NFC Card Reader&Writer
-
Interface:
-
USB
-
Function:
-
Read&Write
-
Model:
-
ACS ACR122U
-
Dimension:
-
98*65*13mm
-
OS:
-
All Windows OS
-
Supporting Card:
-
ISO/IEC 18092 NFC, ISO 14443 Type A & B, MF, FeliCa etc
-
Keyword:
-
acr122u card reader
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A/B, ISO 14443 A/B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACS
-
Product Name:
-
RFID NFC Card Reader&Writer
-
Interface:
-
USB
-
Function:
-
Read&Write
-
Model:
-
ACS ACR122U
-
Dimension:
-
98*65*13mm
-
OS:
-
All Windows OS
-
Supporting Card:
-
ISO/IEC 18092 NFC, ISO 14443 Type A & B, MF, FeliCa etc
-
Keyword:
-
acr122u card reader
|
Dimensions |
98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) |
|
Weight |
70.0 g |
|
Interface |
USB Full Speed |
|
Operating Distance |
Up to 50 mm (depends on the tag type) |
|
Supply Voltage |
Regulated 5V DC |
|
Supply Current |
200mA (operating); 50mA (standby); 100mA (normal) |
|
Operating Temperature |
0-50 °C |
|
Operating Frequency |
13.56 MHz |
|
Smart Card Interface Support |
ISO14443 Type A & B |
|
FeliCa |
|
|
4 types of NFC (ISO/IEC18092) tags |
|
|
Compliance / Certifications |
ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft® WHQL |
|
Operating System Support |
Windows® |
|
Win CE 5.0 and 6.0 |
|
|
Linux® |
|
|
Mac OS® |
|
|
Android™ |
