Quick Details
-
Brand Name:
-
Daheng
-
Voltage:
-
220V/380V can be customized
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
3.5*2.25*1.2 m
-
Weight:
-
800 kg
-
Features:
-
Easy Operation
-
Product name:
-
Lightweight Wall Panel Machine
-
Raw materials:
-
Concrete
-
Finished products:
-
Hollow slab,wall panel,beam,pillar
-
Usage:
-
Construction Material Making
-
Features of machine:
-
Long Worklife
-
Advantage:
-
High Efficent
-
Function:
-
Construction Building
-
Features of finished product:
-
High strength
-
Fuel:
-
Electricity
-
Formula:
-
Provide Formula
Quick Details
-
Application:
-
Making construction materials
-
Production Capacity:
-
500m2/day
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Daheng
-
Voltage:
-
220V/380V can be customized
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
3.5*2.25*1.2 m
-
Weight:
-
800 kg
-
Features:
-
Easy Operation
-
Product name:
-
Lightweight Wall Panel Machine
-
Raw materials:
-
Concrete
-
Finished products:
-
Hollow slab,wall panel,beam,pillar
-
Usage:
-
Construction Material Making
-
Features of machine:
-
Long Worklife
-
Advantage:
-
High Efficent
-
Function:
-
Construction Building
-
Features of finished product:
-
High strength
-
Fuel:
-
Electricity
-
Formula:
-
Provide Formula
Product Overview
Precast Prestressed Concrete Hollow Cored
Floor/Wall Slab/Beam/Pillar machine
The efficiency of hollow floor production by our machine is 3-5 times higher than that by other methods (drawing die, rapid demoulding, etc.). It saves 30-50 kg per cubic meter of cement, reduces the labor intensity of workers, makes the board faster, has compact texture, neat shape, accurate size, high site utilization rate and quick turnover. It is an ideal prefabricated component production equipment to replace other production methods.
The Hollow core slab forming machine works on the concrete platform. Driven by the motor and transmitted throught the speed reducer. The movement of the slipper block pushed the loosen materials to the forming container from the hopper. With the continuous working of the vibrate plates. The material condensed by pushing and discharging of air. Press the concrete be hard and strong. The concrete be shape to smooth slabs. At the same time, the machine move forward to produce the long panel because the reactive force overcomes the frictional resistance. The slab can be cut to different lengths from 4.2m to 18m. Finshed products with strong load capacity, smooth surface and good flatness.
It is a large-scale warehouse and civil residence of large-scale workshop, school, hospital, shopping mall, office building. The hollow plate with large span and high bearing capacity is economical and ideal production equipment.
Due to the strong adaptability for field, low requirement to the supporting facilities, low cost of investment, our hollow slab forming machine has a broad market prospect.
Pictures of Precast Concrete Hollow Slab machine
Technical data of concrete slab machine
|
Model
|
DH80*600
|
DH120*900
|
DH150*1200
|
|
Slab thickness(mm)
|
80
|
120
|
150
|
|
Width(mm)
|
600
|
900
|
1200
|
|
Hollow number
|
7
|
8
|
11
|
|
Dia of hollow(mm)
|
50
|
50
|
50
|
|
Vibrator(kw)
|
2
|
3
|
4
|
|
Main motor(kw)
|
5.5
|
5.5/7.5
|
7.5/11
|
|
Speed(m/min)
|
1.1-1.7
|
1.1-1.7
|
1.1-1.7
|

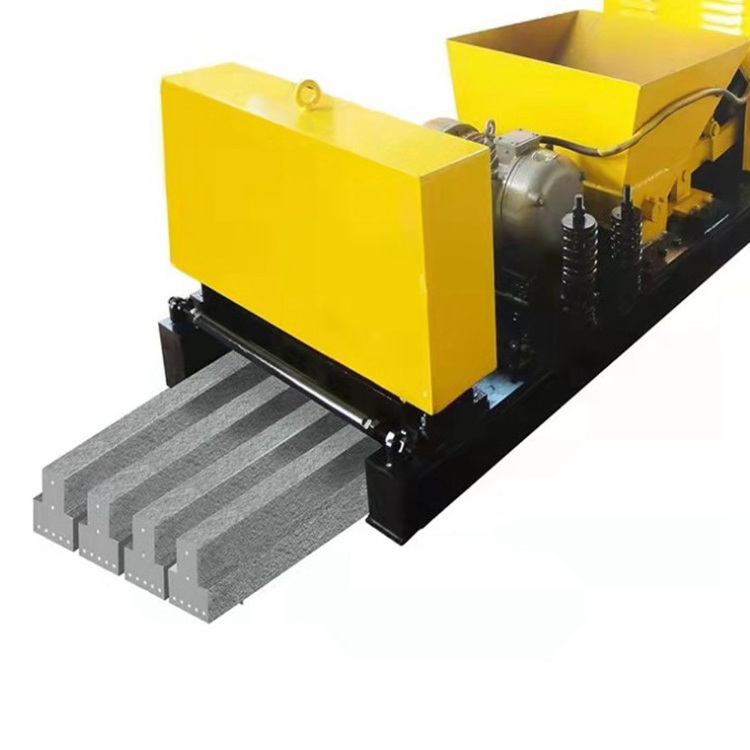

Pictures of concrete beam machine
Pictures of concrete pillar machine
Features:
1. Automatic walking, continuous operation and one-step molding are adopted.
2. The board has high strength, fast speed and good quality.
3. Save labor, time and materials
4. Reduce the labor intensity of workers.
