Quick Details
-
Table Travel (Y) (mm):
-
460
-
Spindle Taper:
-
Other
-
Dimension(L*W*H):
-
can discuss
-
Weight (T):
-
9 T
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 20000 r.p.m
-
Spindle Motor Power(kW):
-
30
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
48000 - 50000 mm/min
-
Rapid Feed Speed(m/min):
-
48-50
-
Tool Magazine Capacity:
-
30
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DAHUIMT
-
Voltage:
-
380V50HZ
-
Product name:
-

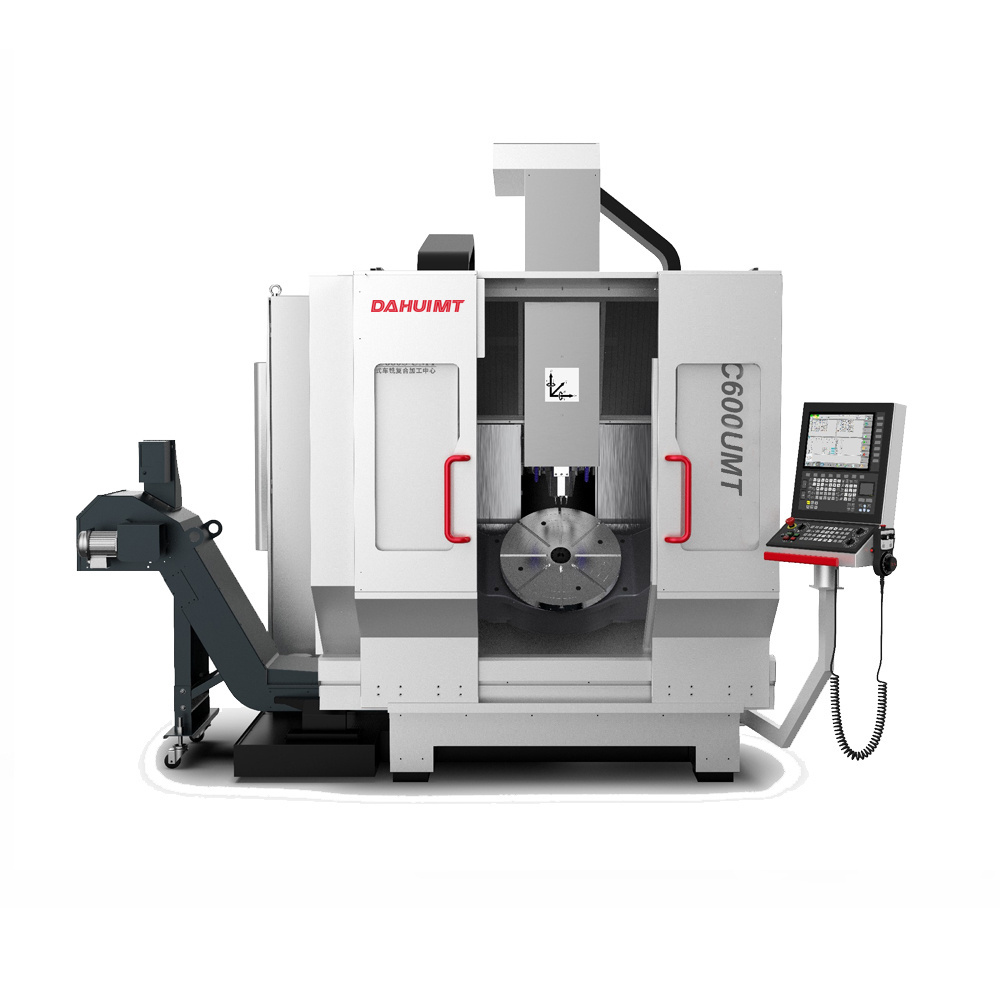

5 Axis CNC Milling Machine
-
Max. workpiece turning diameter:
-
580
-
Table diameter:
-
370*450
-
Workpiece weight:
-
150-300kg
-
X / Y / Z axis movement:
-
450-460-350mm
-
A-axis rotation range:
-
130 ~130°mm
-
C-axis rotation range:
-
Unlimited
-
Distance from spindle face to table:
-
90~540mm
-
highest Speed:
-
20000
Quick Details
-
Table Size (mm):
-
370
-
Number of Axes:
-
5
-
Table Travel (X) (mm):
-
450
-
Table Travel (Y) (mm):
-
460
-
Spindle Taper:
-
Other
-
Dimension(L*W*H):
-
can discuss
-
Weight (T):
-
9 T
-
Positioning Accuracy (mm):
-
0.008
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 20000 r.p.m
-
Spindle Motor Power(kW):
-
30
-
Max. Table Load(kg):
-
300 kg
-
Feed Speed(mm/min):
-
48000 - 50000 mm/min
-
Rapid Feed Speed(m/min):
-
48-50
-
Tool Magazine Capacity:
-
30
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DAHUIMT
-
Voltage:
-
380V50HZ
-
Product name:
-
5 Axis CNC Milling Machine
-
Max. workpiece turning diameter:
-
580
-
Table diameter:
-
370*450
-
Workpiece weight:
-
150-300kg
-
X / Y / Z axis movement:
-
450-460-350mm
-
A-axis rotation range:
-
130 ~130°mm
-
C-axis rotation range:
-
Unlimited
-
Distance from spindle face to table:
-
90~540mm
-
highest Speed:
-
20000
Related products
Products
Recommended
Product Description
|
ITEM
|
VGW400SU
|
|
Max. workpiece turning diameter
|
Φ580 mm
|
|
Table diameter
|
370×φ450 mm
|
|
Workpiece weight
|
300 kg
|
|
X / Y / Z axis movement
|
450-460-350 mm
|
|
A-axis rotation range
|
130 ~130° mm
|
|
C-axis rotation range
|
Unlimited mm
|
|
Distance from spindle face to table
|
90~540 mm
|
|
Highest Speed
|
20000
|
|
Rated power
|
30 kw
|
|
Tool handle
|
HSK- A63
|
|
Positioning lock
|
not available
|
|
A-axis drive method
|
Torque motor double direct drive
|
|
Rated torque
|
1200 Nm
|
|
C-axis drive method
|
Torque motor direct drive
|
|
Rated torque
|
860 Nm
|
|
X axis / Y axis / Z axis
|
48 m / min
|
|
A axis
|
30 rpm
|
|
C aixs
|
80 rpm
|
|
X/Y/Z aixs
|
standard mm
|
|
A/C axis
|
standard mm
|
|
X/Y/Z aixs
|
0.008,0.005 mm
|
|
A/C axis
|
8,5 mm
|
|
X/Y/Z aixs
|
0.005,0.003 mm
|
|
A/C axis
|
5,3
|
|
Tool magazine capacity
|
36 bars
|
|
Max. Tool diameter
|
Φ80 mm
|
|
Max. Tool length
|
300 mm
|
|
Max. tool weight
|
8 kg
|
|
Machine Size
|
3356×4051×2851 mm
|
|
Machine Weight
|
9000 kg
|
Our Advantages
Company Introduction
Dalian Dahui Machinery Equipment Co.
, Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like:
CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories
. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.
Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.
Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
