Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TAOXING
-
Dimensions(L*W*H):
-
73x58x128cm
-
Weight:
-
100 KG
-
Certification:
-
CE
-
Product name:
-
Semi Auto Cylindrical Silk Screen Printing Machine
-
Application area:
-
cup,bottle, tube
-
Speed:
-
720pcs/hour
-
Air pressure::
-
4.0~6.0 kfg/cm2
-
After Warranty Service:
-
Video technical support
-
Showroom Location:
-
Bangladesh
-
Marketing Type:
-
Hot Product 2019
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TAOXING
-
Dimensions(L*W*H):
-
73x58x128cm
-
Weight:
-
100 KG
-
Certification:
-
CE
-
Product name:
-
Semi Auto Cylindrical Silk Screen Printing Machine
-
Application area:
-
cup,bottle, tube
-
Speed:
-
720pcs/hour
-
Air pressure::
-
4.0~6.0 kfg/cm2
-
After Warranty Service:
-
Video technical support
-
Showroom Location:
-
Bangladesh
-
Marketing Type:
-
Hot Product 2019
Application for Semi Auto Cylindrical Silk Screen Printing Machine
TX-250S-9 Semi Auto Cylindrical Silk Screen Printing Machine is suitable for surface printing on cylindrical objects and oval , such as Paper Cup, blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc
|
SPECIFICATIONS FOR TX-250S-9 Semi Auto Cylindrical Silk Screen Printing Machine
|
|
|
|
|||
|
Maximum Print Area Round:
|
|
70mm Ø
|
|
|||
|
Maximum Print Area Oval:
|
|
210mm Arc Length
|
|
|||
|
Maximum print Length:
|
|
200mm
|
|
|||
|
Maximum Screen Frame Size:
|
|
430*280mm
|
|
|||
|
Printing Cycle Speed:
|
|
720pcs/hour
|
|
|||
|
Electric Source:
|
110V/220V 50-60Hz 60W
|
Air Pressure:
|
5-6Ba
|
|||
|
Dimensions:
|
73x58x128cm
|
Weight:
|
100KG
|
|||
Main Features for Semi Auto Cylindrical Silk Screen Printing Machine
1.Pneumatic controlled with shock absorbers
2.Microprocessor controlled - PCB
3.Vertical part lift with height adjustment
4.Print stroke controlled with rodless cylinder
5.X/Y/R positioning ware-mounting table
6.Linear ball bearings on hardened shafts
7.Squeegee tilt, skew, and height adjustable
8.Screen frame angle & tilt adjustable
9.Synchronized bottle inflation system with regulator
10.Regulated squeegee pressure with pressure gauge
11.Floor levelers & casters
12.Foot switch controlled
Round print device with open and close unit
Straight diameter size of fixture installation port
Paper cup printing fixture
Cup holder fixture&Screen version
Title goes here.

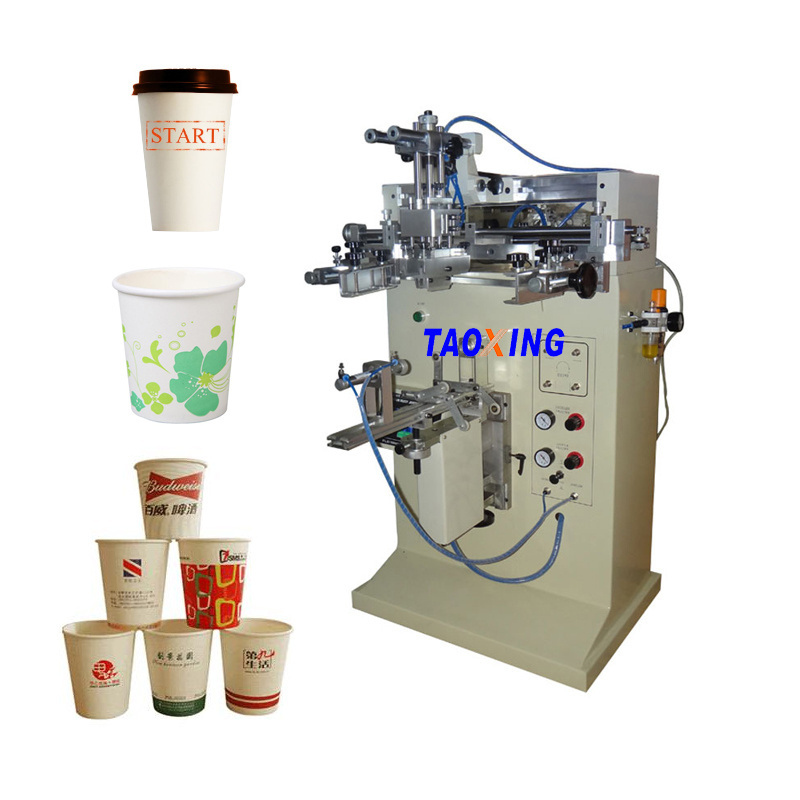

Overall picture of the machine
★ Packing & Delivery
Q: Are you a factory or trading company? A: We are a professional manufacturing factory specialize in printing equipment with more than 18 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized? A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
development,manufacture, installation, test and maintenance.
Photo of Factory
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* custom contact us
After-Sales Service
* 1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
