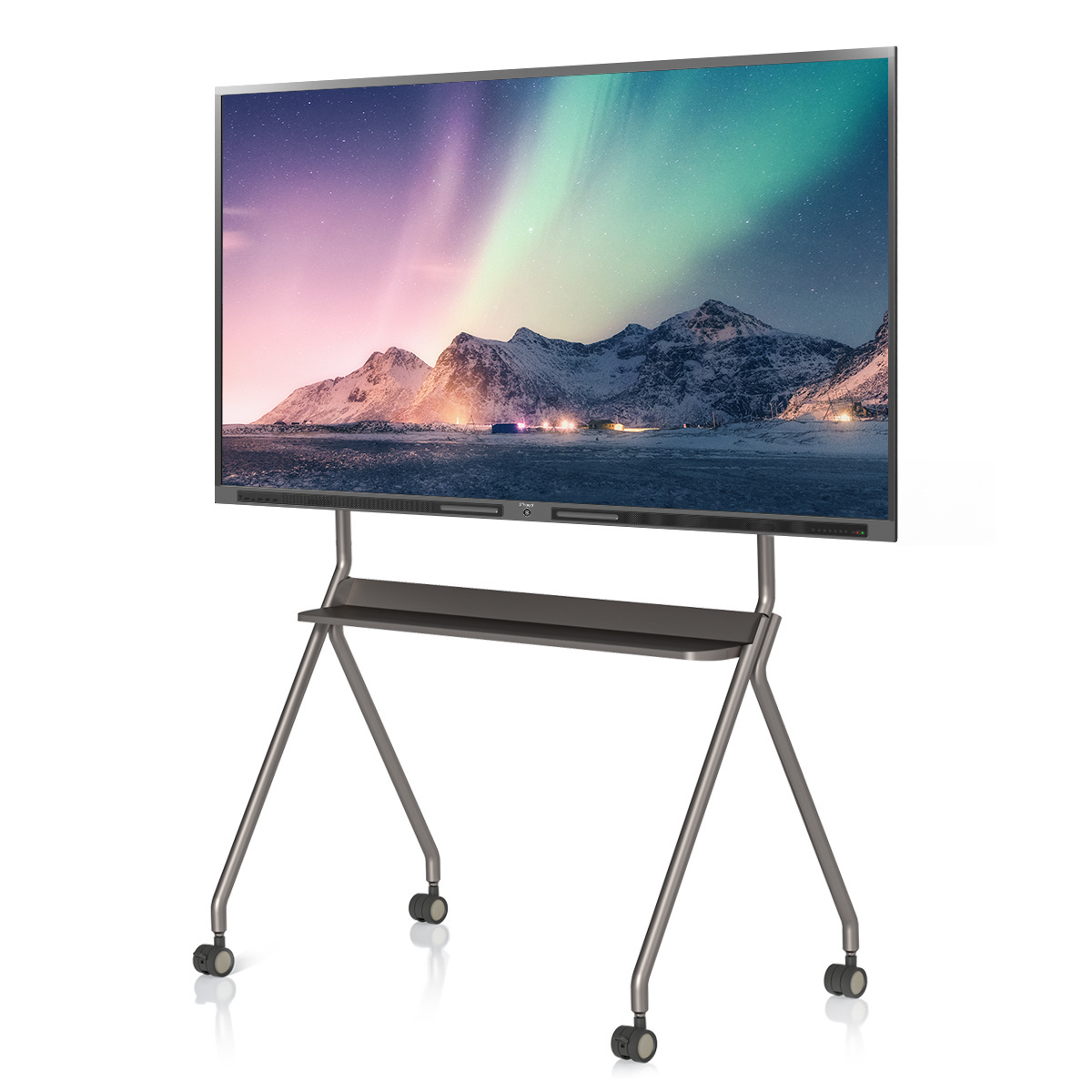

86 Inch Mobile Tv Smart Board Interactive Touch Screen Whiteboard With Speaker

86 Inch Mobile Tv Smart Board Interactive Touch Screen Whiteboard With Speaker

FOB Reference Price: Get Latest Price

≥60 Pieces

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HJ-TD86

Weight:: 96KG

Packing Dimension:: 2125*1350*225mm

Product Dimension:: 86"

Product name:: Interactive display

Touch points:: 20 Points

Operating system:: Dual System

Touch Type:: Infrared touch screen

Screen tyep:: OLED

Size:: 86 Inch

Material:: Aluminum Alloy Frame

Application:: Education.Training.Office. meeting

Feature:: Multi Eye Protection

Quick Details

Panel Size:: 86inches

Place of Origin:: China

Brand Name:: STboard

Model Number:: HJ-TD86

Weight:: 96KG

Packing Dimension:: 2125*1350*225mm

Product Dimension:: 86"

Product name:: Interactive display

Touch points:: 20 Points

Operating system:: Dual System

Touch Type:: Infrared touch screen

Screen tyep:: OLED

Size:: 86 Inch

Material:: Aluminum Alloy Frame

Application:: Education.Training.Office. meeting

Feature:: Multi Eye Protection

Interactive Flat Panel

Fashion Appearance

Aluminum alloy face frame, space gray, ultra-narrow edge design; 55"/65"/75"/86''/98'' Fingerprint unlock; Camera Unlock
Air detection; Collective hearing aid system
High performance modular design
The integrated design of Windows and Android systems

Whiteboard writing, multimedia playback and intelligent recording of meeting
contents 20-point touch +2mm fine pen technology, smooth writing experience

Product Paramenters

Parameter

Screen Size

65inch

75inch

85inch

86inch

98inch

100inch

Whole Size (mm)

1498x918x96

1723x1044x99

1965x1180x99

2212x1305x106

2275x1363x120

Packing Size (mm)

1660x1065x225

1875x1185x225

2115x1325x225

2435x1490x275

NW (KG)

58.5

107

GW (KG)

73.5

125

141

Shell Material

Aluminum alloy frame, aluminum back shell

Color

The default front frame is black (optional silver gray) and black back shell

System version	Android 11.0
Main chip	A311D2
CPU	A734 + A534 (4 Core）2.28Ghz
GPU	G52*8(8 Core)
DDR SIZE	Default 4GB, the maximum can be expanded to 8GB
eMMC Flash	Default 32GB, the maximum can be expanded to 128GB
OSD language	Multi-lingual（26 national languages）
Front interface	USB TOUCH1，HDMI IN1，Type C1，USB 3.03
Side interface	DP IN,，HDMI In*2,，USB3.0 ，TYPE B,，HDMI OUT,Type-C,MIC,USB2.0,OTG,USB2.0,USB3.0
Bottom interface	RJ45 IN，RJ45 OUT，Earphone/Line Out&Coax，COAX OUT，RS232，PC Audio IN，VGA IN

Display Specification

Display size (mm)

1428x804

1650x929

1872x1053

1895x1066

2159 x1215

2203x1240

Backlight type

DLED

Resolution

3840 * 2160（4k@60HZ）

Brightness

400±50cd/㎡

Dynamic contrast

5000:1

Viewing angle

178°

Screen ratio

16:9

Display color

10 bit/1.07 Billion

Refresh rate

60Hz

Life time

50000 hours

Touch parameter
Touch panel	4mm ordinary explosion-proof glass/AG anti-glare glass（Mohs 7）
Touch technology	Infrared/capacitive touch
Touch points	Android 20 points，Windows 40 points
Touch resolution	32768 * 32768
Touch accuracy	2mm
Response time	5ms
Write Methods	Finger or non-transparent object
Power
Input Power	AC 180-240V 50/60Hz
Power consumption	240W	320W	350W	380W
Optional Configuration
Camera, Fingerprint, Hearing Loop, Light Sensitive
