Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control
Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control

Theatre light LED fresnel 40W RGBW film light, church light DMX RDM control

FOB Reference Price: Get Latest Price
≥20 Pieces
US $188
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product Weight（kg）:
2.2
Input Voltage(V):
AC100-240V/50-60Hz
Lamp Luminous Flux(lm):
3000
CRI (Ra>):
0
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
iFrog
Emitting Color:
RGBW
Certification:
RoHS/ce
Product name:
Mini Fresnel 40C
Keyword:
Fresnel light, stage light, LED light
Control mode:
DMX, RDM
Weight:
2.2kg
Feature:
Even mixing, powerful output
Voltage:
100V-240V/50-60Hz
Color:
RGBW
Luminous Efficacy(lm/w):
1000

Quick Details

Type:
Fresnel Lights
Application:
Theatre
Warranty(Year):
1-Year
Product Weight（kg）:
2.2
Input Voltage(V):
AC100-240V/50-60Hz
Lamp Luminous Flux(lm):
3000
CRI (Ra>):
0
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
iFrog
Emitting Color:
RGBW
Certification:
RoHS/ce
Product name:
Mini Fresnel 40C
Keyword:
Fresnel light, stage light, LED light
Control mode:
DMX, RDM
Weight:
2.2kg
Feature:
Even mixing, powerful output
Voltage:
100V-240V/50-60Hz
Color:
RGBW
Luminous Efficacy(lm/w):
1000
Product Description

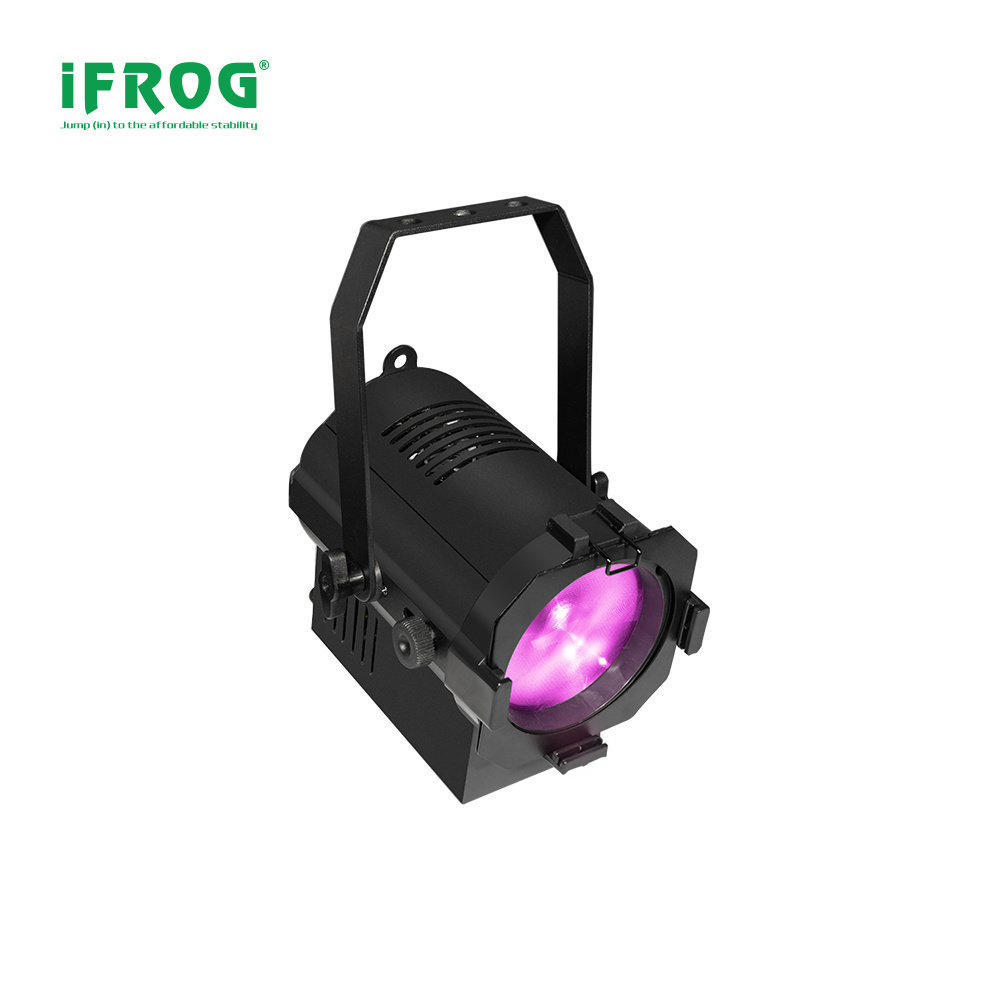

Mini Fresnel 40C
The Mini Fresnel 40C zoom is a portable LED fresnel light, it's powered by 40W RGBW LED. 40Watt Red + 40Watt Green + 40Watt Gree + 40Watt White and also 40Watt in output. Which means it a 160Watt LED in such a small bdy.

It features 25 - 80° zoom, flat and even color mixing, 3000K ~ 8000K color temperature adjustable. It deliver a smooth, soft flat field of light. Rotating barn door, color frame included for the shape of the light.

Key Features:

• 40W LED(40W R+40W G+40W B+40W W) • RGBW flat and even color mixing • 25-80° manual zoom • Smooth dimming, flicker free • Super compact, easy for set up • Rotary, key, DMX control of dimmer • DMX-RDM compliant, 4 dimmer modes • 4-leaf rotatable barndoor included • Track mount version selectable

Application:

• Small event • Small theatre • Stage wash
• Church
• VLogger
Technical specifications:
Power supply:
AC100-240V, 50/60Hz
Light source:
40W LED
LED color:
40W R+40W G+40W B+40W W
Color temperature:
3000K ~ 8000K
Zoom range:
25°- 80° manual zoom
Power connection:
PowerCON in
Signal connection:
3-pin XLR in&out(5-pin optional)
Control channels:
ARC.1(3CH), AR1.D(4CH), ARC.2(4CH), AR2.D(5CH), AR2.S(6CH), HSV(3CH), STAG(11CH)
Control mode:
DMX, RDM
Dimmer speed:
4 grade
Housing:
Colour black, Aluminum
Size:
230 x 156 x 279mm
N.W.:
2.2 kg(barn door incl.)
G.W.:
2.8 kg
Accessories(incl.):
Power cable, barn door, Gel frame
Accessories(opt.):
Clamp, Safety rope
Compliance:
CE
Environment:
IP20
Detailed Images
A powerful LED fresnel
Usually when people taking about a 40Watt RGBW LED fresnel. It means total power consumption is 40Watt. So when it comes to each LED power - it's 10Watt. 10watt Red, 10Watt Green...

However, we do things differently. Each RGBW LED is 40Watt. Four times brighter.
Only 2.2 kg
Can you believe such a powerful fixture have weight only 2.2kg? We did it.

The light weight and tiny body makes this fixture so portable in almost all application. Especially idea for outdoor shootings.
Manual Zoom Function
Zoom function is the first and one of the most important features that should be in our theatrical and studio fixtuers.

The Mini 40C fresnel come with zoom range 25° - 80°. Easily adjust spot size with just one zoom slider.
PowerCon connection
Though almost all users hate IEC power connector, competitors and even big brands still choose IEC power connector.

We are not that stubborn. The body do not have much space to put in & out connector. But PowerCon in is must for professional fixtures.
Dimmer Frequency and RDM
Dimmer frequency is very useful and important in viedo shooting. All our theatrical lighting fixture support adjustable of dimmer frequency.

The Mini Fresnel 40C support 1.2 - 24.0KHz frequency selectable.

Standard RDM protocol support makes our fixtures more user frendly. Easily change DMX address, DMX channels, monitor information from the unit etc.
Accessories
4-leaf rotating barndoor
Color frame
Power cable
Certificate
Company Introduction
iFrog(a brand of Guangzhou Hotion Technology Co., Ltd) has been engaged in R&D, manufacturing durable, advanced and affordable studio & theater lighting, professional stage lighting, entertainmenting lighting as well as architecture lighting products. Our company is ISO9001:2015 recognized, with modern production line, full QC system and a series of test machines. Products are CE, RoHS, RED, ETL certificated.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
