Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyester
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yousan
-
Model Number:
-
P3313
-
Product Name:
-
Heat Resistant Transfer Tape
-
Color:
-
Clear
-
Tan printed polycoated paper.:
-
5.5 N/10mm
-
Thickness:
-
0.06mm/0.13mm
-
Length:
-
55m
-
Width:
-
24MM /48MM etc
-
Shape:
-
Size Customized
-
Release Liner:
-
Tan printed polycoated paper.
-
Sample:
-
Freely
-
Products Level:
-
High Quality and Performence
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Polyester
-
Feature:
-
Waterproof
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yousan
-
Model Number:
-
P3313
-
Product Name:
-
Heat Resistant Transfer Tape
-
Color:
-
Clear
-
Tan printed polycoated paper.:
-
5.5 N/10mm
-
Thickness:
-
0.06mm/0.13mm
-
Length:
-
55m
-
Width:
-
24MM /48MM etc
-
Shape:
-
Size Customized
-
Release Liner:
-
Tan printed polycoated paper.
-
Sample:
-
Freely
-
Products Level:
-
High Quality and Performence

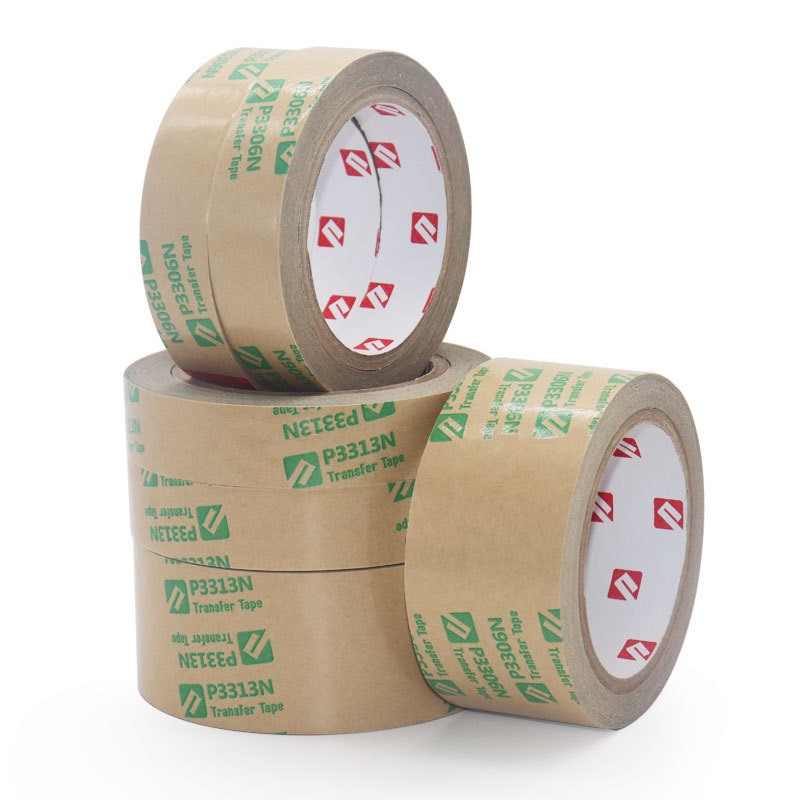

Acrylic Adhesive Double Sided Heat Resistant Transfer Tape for FPC Metal
Product Description
Heat Resistant Transfer Tape :
Double Sided Transfer Tape is made by evenly coating high-performance acrylic pressure-sensitive adhesive on the release paper. It has excellent bonding effect, good weather resistance, good temperature resistance, good water resistance, can prevent falling off and deformation, and is easy to die-cut.
Heat Resistant Transfer Tape Application:
- Nameplates, labels, signs: used in screen printing, advertising, aviation, medical and industrial equipment, automobiles, home appliances, electronic markets and other industries.
- Soft board FPC: used in mobile phones, notebook computers, PDAs, digital cameras, LCM and other electronic products.
- Membrane switch: including flexible, rigid, concave-convex and other types of membrane switches.
- Anti-shock foam: good Initial Tack and stickiness, high cohesion, and good plasticization resistance.
Data Sheet:
|
Product Code
Technical Parameters |
P3305 | P3306H | P3306N | P3310 | P3313 | P3313H | P3313N |
| Color | Transparent | ||||||
| Total Thickness[mm] | 0.05 | 0.06 | 0.06 | 0.1 | 0.13 | 0.13 | 0.13 |
| Adhesive | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic |
| Initial Tack[mm] | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| 180°Peel Strength[N/inch] | 18 | 13 | 13 | 12 | 18 | 18 | 18 |
| Retentivity[hour] | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Long-Term Temperature Resistance [℃] | 80 | 150 | 150 | 80 | 80 | 150 | 150 |
| Short-Term Temperature Resistance [℃] | 120 | 200 | 200 | 120 | 150 | 200 | 200 |
