Quick Details
-
Voltage:
-
220v/110v/380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UE
-
Model Number:
-
UE-100
-
Warranty:
-
1 year
-
Usage:
-
Car Baking Spray Paint Booth
-
COLOR:
-
Can be customized
-
Fans kind:
-
Centrifugal Fans CE
-
Baking temperature:
-
60~80℃
-
Baking method:
-
Riello diesel burner
-
Colour:
-
Can be customized
-
Packing detail:
-
20ft container,FCL
Quick Details
-
Power:
-
7kw
-
External Size:
-
7000mmx5900mmx3400mm, 7000*5900*3400mm
-
Internal Size:
-
6900x3900x2650mm, 6900*3900*2650mm
-
Voltage:
-
220v/110v/380v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UE
-
Model Number:
-
UE-100
-
Warranty:
-
1 year
-
Usage:
-
Car Baking Spray Paint Booth
-
COLOR:
-
Can be customized
-
Fans kind:
-
Centrifugal Fans CE
-
Baking temperature:
-
60~80℃
-
Baking method:
-
Riello diesel burner
-
Colour:
-
Can be customized
-
Packing detail:
-
20ft container,FCL
Products Description

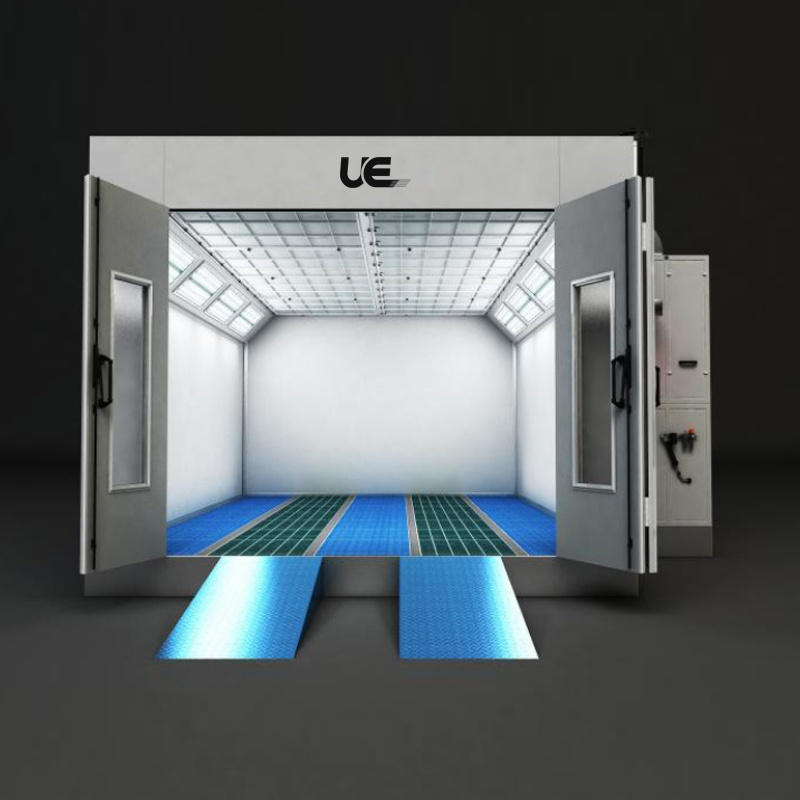

UE-100 Spray Booth,its volume is 22 cubic meters. Can put three lift machine again,We recommend you to A small cabinet.
Products Description
Product Paramenters
|
Outside Dimension (mm)
|
7000×5900×3400
|
|
Inside Dimension(mm)
|
6900×3900×2650
|
|
Front Door(mm)
|
3000×2600(W*H)
|
|
Service door(mm)
|
800×2000(W*H)
|
|
Power
|
7kw
|
Features
Features
About Us
1.The outer diameter size of the spray paint room is 7000 * 5000 * 3200, inner diameter size 6900 * 3900 * 2650, and door size 2940 * 2450.
2.The room body adopts EPS insulation plate, with good sealing and insulation performance, and a thickness of 50mm,
double-sided 03 iron sheet.
3.The bottom grille and climbing platform are welded with 3 * 3 flat iron mechanism, lane aggravation of 3 * 4, and additional load-bearing legs.
4.The grille is a plane of 10 # groove steel or convex steel, standing leg of 8 #groove steel, welded.
5.The lighting system adopts a new design, 24 sets of 40W Huaqiang efficient LED tubes, state-of-the-art electronic ballast, no shadow during paint operation, up to 800 lux, and still working normally at low pressure to 180 volts.
6.The roof beam is welded with 4 * 4 galvanized square pipe and never rust, laying the foundation for the purification of the sprinkler environment.
7.The second floor bending parts are made of 045 color coating plate folding, beautiful and generous.
8.The filtration system adopts VF600G first-class three-dimensional rubber filtration cotton, whose life is 2 times that of plane rubber. Using advanced technology to achieve sheet airflow arrangement, it can filter dust particles in the air, paint surface without dust debris, and greatly improve the air flow, so as to ensure the clean air and the filtration efficiency reaches more than 98%.
9.The filter cotton frame is riveted with 025 galvanized square pipe with strong bearing force and never rust.
10.The heating system adopts four square copper core wire connected to 8 sets of luxury carbon fiber heating and baking lamps, with high heat conversion rate At 95%.
11.The air supply system adopts two 4KW YDW-420L fans, which is introduced by Siemens technology
Built-in motor fan, low noise, high air volume and good ventilation, to ensure that the average air flow rate in the operation
area is in 0.3M/S, can meet the air and cleanliness requirements, improve paint utilization and ensure air volume in the room.
Built-in motor fan, low noise, high air volume and good ventilation, to ensure that the average air flow rate in the operation
area is in 0.3M/S, can meet the air and cleanliness requirements, improve paint utilization and ensure air volume in the room.
12.The 25,000 m3/H, gas change number was 260 / N.
13.The box is welded with 4 * 4 square pipe, and the main sealing port is the
composite panel inlaid with aluminum alloy, which is more beautiful and lays a foundation for noise reduction.
composite panel inlaid with aluminum alloy, which is more beautiful and lays a foundation for noise reduction.
14.The air tube is a mechanism 04 galvanized plate, with a diameter of 60 * 60, smooth exhaust, the mechanism is more robust and more beautiful.
15.The electric control system, automatic temperature control, with leakage protection function, high safety factor. The door and
edges are made with aluminum alloy edges and strong grip page to ensure the beauty and durability after installation.
edges are made with aluminum alloy edges and strong grip page to ensure the beauty and durability after installation.
16.The Safety anti-pressure world lock, can ensure that the paint room pressure is too high, automatically open the door, to ensure the safety of the staff.
