Quick Details
-
Brand Name:
-
SDTW
-
Product name:
-
scooptram
-
type:
-
diesel engine scooptram
-
Engine:
-
Deutz Engine
-
Local Service Location:
-
Peru
-
After sales Service:
-
Engineers available to service machinery overseas
-
Min. Turning Radius:
-
3569 / 6425 mm
-
Tramming capacity:
-
7000 kg
-
Maximum breakout force:
-
131 KN
-
Standard bucket:
-
3m3 (4 yd3 )
Quick Details
-
Weight (KG):
-
60000
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDTW
-
Product name:
-
scooptram
-
type:
-
diesel engine scooptram
-
Engine:
-
Deutz Engine
-
Local Service Location:
-
Peru
-
After sales Service:
-
Engineers available to service machinery overseas
-
Min. Turning Radius:
-
3569 / 6425 mm
-
Tramming capacity:
-
7000 kg
-
Maximum breakout force:
-
131 KN
-
Standard bucket:
-
3m3 (4 yd3 )

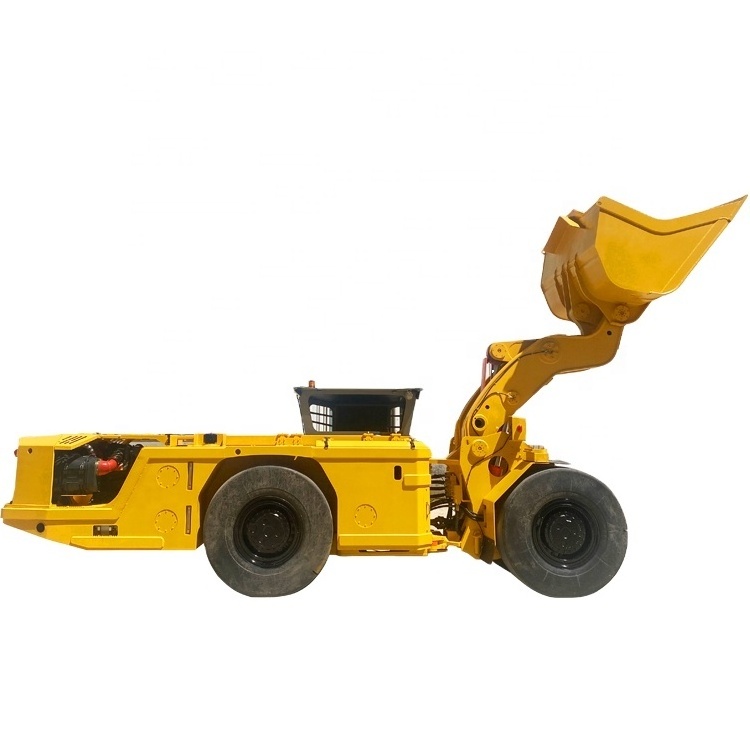

China made high quality CY-30 underground mining machinery articulated mucking loader small scooptram diesel Mine LHD
Product datails
Product description
|
Capacity
|
|
Speed
|
|
|||
|
Tramming Capacity
|
7000 kg
|
1st gear
|
0~4.7 km/h
|
|||
|
Maximum Breakout force
|
131 KN
|
2nd gear
|
0~9.4 km/h
|
|||
|
Maximum Tractiom
|
170 KN
|
3rd gear
|
0~18.4 km/h
|
|||
|
Standard Bucket
|
3.0 m3 (4 yd3)
|
Weight, Empty
|
|
|||
|
Main Dimensions
|
|
Operation weight
|
17600 kg
|
|||
|
Overall Size
|
9044 X 2107 X 2238 mm
|
Front axle load
|
6790 kg
|
|||
|
Wheelbase
|
3184 mm
|
Rear axle load
|
10810 kg
|
|||
|
Max. Lifting Height
|
4935 mm
|
Weight, Laden
|
|
|||
|
Discharge Height
|
1810 mm
|
Front axle load
|
14900 kg
|
|||
|
Discharge Distance
|
1650 mm
|
Rear axle load
|
9700 kg
|
|||
|
Min. Turning Radius
|
3569 / 6425 mm
|
|
|
|||
|
Bucket Motion Time
|
|
|
|
|||
|
Raising time
|
≤6.5 s
|
Dumping time
|
≤3.7 s
|
|||
|
Lowering time
|
≤3.2 s
|
|
|
|||
|
POWER TRAIN
|
|
|
|
|||
|
Engine
|
|
Axle
|
|
|||
|
Model
|
DEUTZ BF6M1013EC
|
Brand
|
DANA
|
|||
|
Torque Converter
|
|
Model
|
16D2149
|
|||
|
Brand
|
DANA
|
Tire
|
17.5-25 PR20 L-5S TT
|
|||
|
Model
|
C273
|
|
|
|||
|
Transmission
|
|
|
|
|||
|
Brand
|
DANA
|
|
|
|||
|
Model
|
RT32360
|
|
|
|||
