Quick Details
-
ODM:
-
YES
-
Size:
-
Customers Request
-
Sample:
-
Provided
-
Standard:
-
IEC61109
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Red/Grey
-
OEM:
-
YES
-
ODM:
-
YES
-
Size:
-
Customers Request
-
Sample:
-
Provided
-
Standard:
-
IEC61109

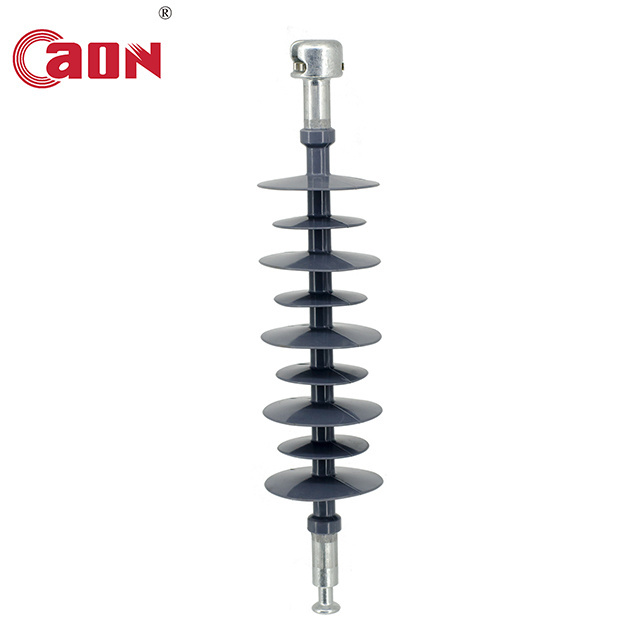

1.Size and technical data of 33kV strain polymeric suspension type insulator
TYPE:FXBW-33/80
| Rated voltage(KV) | Rated mechanical tension load(KN) |
Structure height(mm) H |
Min electric arc distance(mm) h |
1min power frequency wet withstand voltage (kv) |
Min.Nominal creepage distance(mm |
Full wave lightning impulse withstand voltage(peak value) |
| 33 | 80 | 615±15 | 442 | 95 | 1180 | 230 |
2.Materials of 33kV strain polymeric suspension type insulator
1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.
4).5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
3. Company advantage:
(The world's only one insulators maker who can produce all material as below by ourselves)
1-We produce epoxy resin fiberglass rod.
2-We produce HTV silicone rubber.
3-We produce HDG metal fittings.
4-Famous and top brand in China.
5-Superior quality and competitive price.
6-Almost 20 years experience with insulators, surge arresters and fuse cutouts.
7-Exported to more than 35 countries.
8-Guarantee: we can give 15 years wanrantee period after shipment.
9-ISO9001 & ISO14001 & OHSAS18001 and third party support and assurance from Envertec-Europe.
