Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
ShanDong China
-
Brand Name:
-
LES
-
Weight (KG):
-
48 KG
-
Marking Area:
-
110x110mm
-
Core Components:
-
UV Laser Source
-
Mode of Operation:
-
PC+computer control
-
Feature:
-
UV Laser marking machine
-
Product Name:
-
UV Laser marking machine
-
Machine Power:
-
3w/5w (Optional)
-
Laser wavelength:
-
355nm
-
Marking material:
-
Metal and Nonmetal Materials
-
Marking Speed:
-
8000mm/s
-
Minimum line width:
-
0.02mm
-
Repeated accuracy:
-
0.001mm
-
Cooling system:
-
Air Cooling
-
Minimum Character:
-
0.2x0.2mm
-
Work Voltage:
-
220v/110v(Optional)
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
355nm UV Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
ShanDong China
-
Brand Name:
-
LES
-
Weight (KG):
-
48 KG
-
Marking Area:
-
110x110mm
-
Core Components:
-
UV Laser Source
-
Mode of Operation:
-
PC+computer control
-
Feature:
-
UV Laser marking machine
-
Product Name:
-
UV Laser marking machine
-
Machine Power:
-
3w/5w (Optional)
-
Laser wavelength:
-
355nm
-
Marking material:
-
Metal and Nonmetal Materials
-
Marking Speed:
-
8000mm/s
-
Minimum line width:
-
0.02mm
-
Repeated accuracy:
-
0.001mm
-
Cooling system:
-
Air Cooling
-
Minimum Character:
-
0.2x0.2mm
-
Work Voltage:
-
220v/110v(Optional)

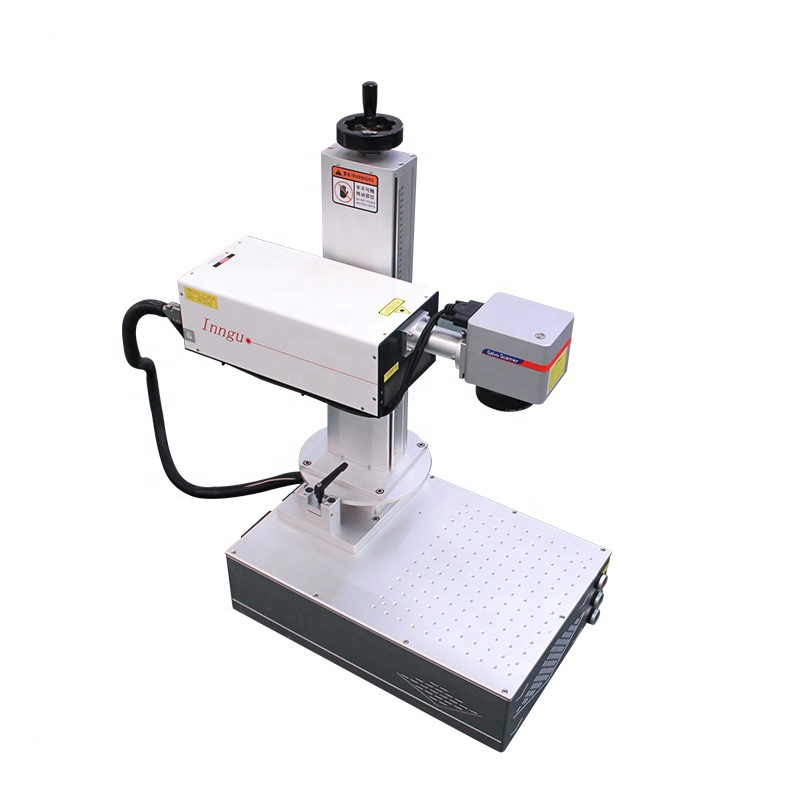

Products Description
Equipment function:
Excellent performance, easy to operateUV laser marking machine using 355nm UV laser, UV laser due to the focusing spot is verysmall, and the processing heat affected zone is small so you can carry out ultra-fine marking, special material marking effect has higher requirements of customerspreferred products.Compared with infrared laserthe focusing spot of ultraviolet light at 355nm is verysmallwhich can greatly reduce the mechanical deformation of the material and the processing heat affected zone is smallTherefore it is mainly used for ultra-fine marking, engraving, especially for the high-end market of ultra-fine processing such as electronic products. cosmetics medicines food and other high polymer materials.
Excellent performance, easy to operateUV laser marking machine using 355nm UV laser, UV laser due to the focusing spot is verysmall, and the processing heat affected zone is small so you can carry out ultra-fine marking, special material marking effect has higher requirements of customerspreferred products.Compared with infrared laserthe focusing spot of ultraviolet light at 355nm is verysmallwhich can greatly reduce the mechanical deformation of the material and the processing heat affected zone is smallTherefore it is mainly used for ultra-fine marking, engraving, especially for the high-end market of ultra-fine processing such as electronic products. cosmetics medicines food and other high polymer materials.
Equipment features：
Fiber laser marking machine adopts fiber laser output laser,Fine marking is realized by digital high speed vibroscope system、High quality processing technology can improve production efficiencyreduce energy consumption and reduce environmental pollution.
1.--Fast speedis more than 2 times the traditional model.
Fiber laser marking machine adopts fiber laser output laser,Fine marking is realized by digital high speed vibroscope system、High quality processing technology can improve production efficiencyreduce energy consumption and reduce environmental pollution.
1.--Fast speedis more than 2 times the traditional model.
2.--Easy to operate,light path completely closed maintenance free stable and reliable.
3.--Lona service lifepump source life of more than 100.000 hours.
4.--The laser is resistant to high reflection and can mark all metals.
5.--High precision and 2540dpi resolution.
6.--Stable power outputexcellent beam qualityair-cooledcoolingcompact models.
Machine configuration
Machine parameters
|
Product name
|
UV laser marking machine
|
|
|
|
|||
|
Laser type
|
UV laser
|
|
|
|
|||
|
Laser wavelength
|
355nm
|
|
|
|
|||
|
Power
|
3w/5w/10w/12w/15w
|
|
|
|
|||
|
Standard marking area
|
110mm*110mm
|
|
|
|
|||
|
Optional marking area
|
140mm*140mm, 200mm*200mm, 250mm*250mm, 300mm*300mm
|
|
|
|
|||
|
Marking speed
|
8000mm/s
|
|
|
|
|||
|
Repeated accuracy
|
0.003mm
|
|
|
|
|||
|
Minimum line width
|
0.01mm
|
|
|
|
|||
|
Minimum character
|
0.2mm
|
|
|
|
|||
|
Power supply
|
AC220V±10% 50Hz or AC110V±10% 60Hz
|
|
|
|
|||
|
Cooling way
|
Air cooling/water cooling
|
|
|
|
|||
|
Operation temperature
|
0-45℃
|
|
|
|
|||
|
Operation system
|
Win XP, Win7, Win8, Win10, 32bit/64bit
|
|
|
|
|||
|
Compatible files format
|
PLT, DXF, AI, DST, BMP, PNG, JPG, JPEG, PNA, TIF etc.
|
|
|
|
|||
Machine application
Applicable Industry and Material:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc.
Machine optional accessories
Rotary Device
--
Its main purpose is to help you mark round objects such as cups.
69mm Ring Rotary
--
Its main purpose is to help you mark objects like rings.
Camera positioning system
--
It will automatically identify the position to be marked, and then start the marking work, which is very convenient.
Autofocus system
--It automatically finds the marking focus, saving you a lot of work time.
Machine packing
Packing:
1.--Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.--All the spare parts of the machine were covered by some soft materials, mainly using pearl wool. Avoiding all damages that could happen in the delivery process. Then we'll cover plastic wrap out it tightly, make sure intact of the covered soft
materials, also avoiding Waterproof and rust proof.
1.--Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.--All the spare parts of the machine were covered by some soft materials, mainly using pearl wool. Avoiding all damages that could happen in the delivery process. Then we'll cover plastic wrap out it tightly, make sure intact of the covered soft
materials, also avoiding Waterproof and rust proof.
Our factory
FAQ
Q: Are you manufacturer ?
A
: Yes,We are factory.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy operate?
A : There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q:What’s your MOQ and delivery?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How is your after sales service?
A: Our sales are online for 24-hours.
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM
Q: This is the first time I use this kind of machine, is it easy operate?
A : There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
Q:What’s your MOQ and delivery?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How is your after sales service?
A: Our sales are online for 24-hours.
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
