Quick Details
-
Max. Turned Length (mm):
-
1500 mm
-
Brand Name:
-
STYLECNC
-
Voltage:
-
220V/2P or 380V/3P
-
Weight (KG):
-
1100
-
Power (kW):
-
4 - 5.5
-
Name:
-

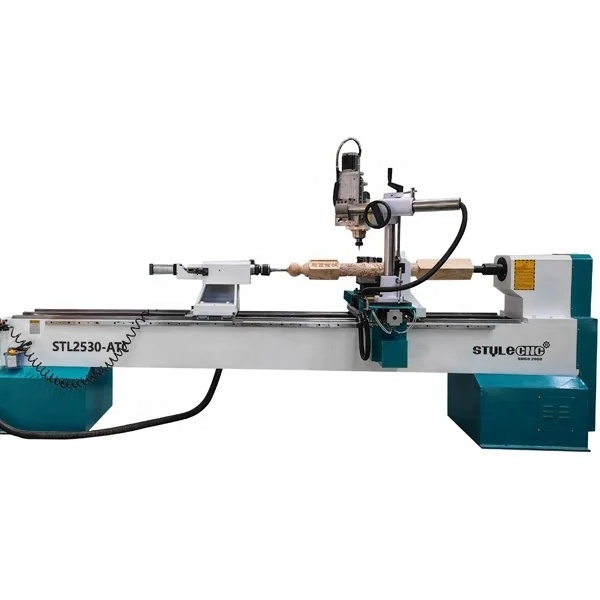

ATC CNC Wood Lathe with Automatic Tool Changer
-
Max turning length:
-
100mm -1500mm
-
Max turning diameter:
-
20mm - 300mm
-
Number of axis:
-
Single axis
-
Maximum feed rate:
-
200cm/min
-
CNC Controller:
-
Panel controller
-
CNC Software:
-
Autocad
-
Spindle for Carving:
-
3.5kw air cooling
-
Motor:
-
Big torque stepper motor
-
Double axis:
-
Optional
Quick Details
-
Max. Swing Diameter (mm):
-
300 mm
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Place of Origin:
-
Shandong, China
-
Max. Turned Length (mm):
-
1500 mm
-
Brand Name:
-
STYLECNC
-
Voltage:
-
220V/2P or 380V/3P
-
Weight (KG):
-
1100
-
Power (kW):
-
4 - 5.5
-
Name:
-
ATC CNC Wood Lathe with Automatic Tool Changer
-
Max turning length:
-
100mm -1500mm
-
Max turning diameter:
-
20mm - 300mm
-
Number of axis:
-
Single axis
-
Maximum feed rate:
-
200cm/min
-
CNC Controller:
-
Panel controller
-
CNC Software:
-
Autocad
-
Spindle for Carving:
-
3.5kw air cooling
-
Motor:
-
Big torque stepper motor
-
Double axis:
-
Optional
Video
Features
1. The wood lathe adopts advanced DSP system with USB connection, operated with handle, convenient operation.
2. The whole lathe machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe machine body is stabilized and will not be deformed forever.
3. The ATC CNC wood lathe adopts domestic top brand stepper motor to ensure high precision.
4. Operating system has friendly easy operation interface, english suggestion and simple setting method.
5. Spindle System is divided into single axial and biaxial.
6. Transmission system adopts Hiwin square rail and ball screw to control the linear error effectively .
7. One-time tool setting to finish the whole workpiece.
8. Compatible with several CAD/CAM design software such as Type3, Artcam, etc.
9. The ATC wood lathe can completely work offline and do not take any computer resources.
10. 4th axis for 3D carving and cutting.
11. Automatic tool changer system.
ATC knife table
Applications
The ATC CNC wood lathe with automatic tool changer system is used for roman columns, wooden handles, baseball bats, stairway newel posts, staircases, stairway balusters, end table legs, dining table legs, sofa table legs, chair legs, bar stool legs, chair arm posts, chair stretchers, bed rails, bun feet, lamp posts and so on.
Technical Parameters
|
Model
|
STL1530-S4-ATC
|
|
Max turning length
|
100mm-1500mm
|
|
Max turning diameter
|
20mm-300mm
|
|
Spindle
|
3.5KW air cooling spindle with motor
|
|
Number of axis
|
Single axis, two blade
|
|
Maximum feed rate
|
200cm/min
|
|
Spindle speed
|
0-3000r/min
|
|
Minimum setting unit
|
0.01cm
|
|
Control system
|
Panel controller
|
|
Driving system
|
Stepper motor
|
|
Power supply
|
AC220v/60hZ
|
|
Whole power consumption
|
5.5kw
|
|
Overall dimensions
|
4100*1500*1300mm
|
|
Weight
|
1800kgs
|
