Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DN-MICRO
-
LCD outline size:
-
495.6(W)*292.2(H)*11 (D)MM
-
Name:
-
21.5"tft LCD Module
-
Active Area:
-
476.64 (H)*268.11(H) mm
-
Resolution:
-
1920*1080
-
Ratio:
-
16:9
-
Brightness:
-
250 cd
-
Pixel pitch:
-
0.1695(H)*0.1695(V)
-
AD board interface:
-
40 & 50 pin &LVDS & VGA
-
work Voltage:
-
DC9-DC15V
Quick Details
-
Type:
-
TFT
-
Display Size:
-
21.5 inch
-
Supplier Type:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DN-MICRO
-
LCD outline size:
-
495.6(W)*292.2(H)*11 (D)MM
-
Name:
-
21.5"tft LCD Module
-
Active Area:
-
476.64 (H)*268.11(H) mm
-
Resolution:
-
1920*1080
-
Ratio:
-
16:9
-
Brightness:
-
250 cd
-
Pixel pitch:
-
0.1695(H)*0.1695(V)
-
AD board interface:
-
40 & 50 pin &LVDS & VGA
-
work Voltage:
-
DC9-DC15V
Products Description

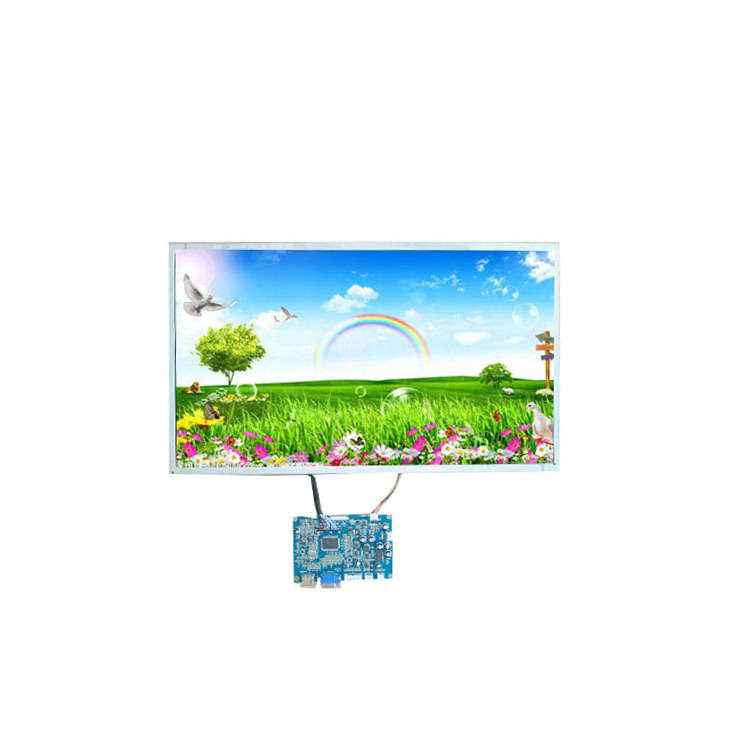

This color LCD Module model of DN-HD156AU,which is composed of DN-HD156AU VER:1.00 and 21.5 inch M215HGEL23 Panel( resolution 1920*1080).It supports CVBS / VGA /LVDS / HDMI Signal input and PC -RGB ,OSD menu ,the Brightness and contrast can be adjusted by keyboard ,This Module can be used for industrial control,video doorphone ,instrumetation,medical equipment ,security monitor ,car display ,POS machine or other display electronic equipment etc.
|
LCD Module
|
Display dimension
|
21.5 inch
|
|
|
Ratio
|
16:9
|
|
|
Backlight
|
LED
|
|
LCD Panel
|
Model
|
M215HGEL23
|
|
|
LCD overall dimension
|
495.6(W)*292.2(H)*11 (D)MM
|
|
|
View Angel(U/D/L/R)
|
50/70/70/70
|
|
|
Resolution
|
1920RGB*1080
|
|
|
Brightness
|
250 cd
|
|
|
Display Area
|
476.64 (H)*268.11(H)
|
|
LCD Board
|
Model
|
DN-HD156AU
|
|
|
Driver Board Size
|
128(W)*85(H) * 16(D) MM
|
|
|
Work Voltage
|
Min:DC9 S:DC12V( default) Max:DC15V
|
|
|
Current (DC 12V Power supply)
|
DC90mA±10mA
|
|
|
Power consumption
|
1.08W(TYP)
|
|
|
Start-up time
|
1.20W(TYP)
|
|
|
Operation temperature
|
0-60
|
|
|
Storage temperature
|
-20-70
|
|
|
Relative Humidity
|
5-95RH
|
|
|
Signal input
|
CVBS & VGA & LVDS & HD MI
|
More Product
Our Advantages
About US
Exhibition
Certifications
Production Process
FAQ
Q1:Where to get the datasheet before orafter purchase?
Please send amail to"dn-micro@Hotmail",we will reply you in 24hours
Q2:How do you add the extra function,does it need for charge?
just confirm the funsion with seller before your place an order,simple function is free
Q3:Payment terms of customized service and mass order?
Customized Service:
According tp product requirement of charge,100% T/T in advance,we will provide 2~3pcs free sample.
Mass Order: 30% T/T as deposit in advance,the balance will be paid before shipping,we can't accept paypal.
