Quick Details
-
Warranty:
-
1 year, One Year
-
Brand Name:
-
JIHPUMP
-
Model Number:
-
293KC/ZL
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
≤24W
-
Structure:
-
Rotary Pump
-
Outlet Size:
-
up to 4mm
-
Power:
-
Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Nonstandard
-
Motor:
-
DC Geared Motor
-
Pump Head Qty:
-
1
-
Flow rate:
-
Max 270ml/min
-
Certificate:
-
CE RoHS ISO9001
Quick Details
-
Application:
-
Automotive Industry, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
-
Pressure:
-
1bar, Low Pressure
-
Voltage:
-
DC12V, 24V, 24V/12V DC
-
Warranty:
-
1 year, One Year
-
Brand Name:
-
JIHPUMP
-
Model Number:
-
293KC/ZL
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
≤24W
-
Structure:
-
Rotary Pump
-
Outlet Size:
-
up to 4mm
-
Power:
-
Electric
-
Theory:
-
Rotary Pump
-
Standard or Nonstandard:
-
Nonstandard
-
Motor:
-
DC Geared Motor
-
Pump Head Qty:
-
1
-
Flow rate:
-
Max 270ml/min
-
Certificate:
-
CE RoHS ISO9001
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1. China leading manufacturer of peristaltic pumps.
2. 18+years of experience in peristaltic pumps.
3. More than 20,000 cooperative customers.
4. Sold over 2 million peristaltic pumps.
Products Description:
|
Features
|
|
|
|
|||
|
Gear reduction
|
No slip, no backflow
|
Accurate and stable measurement
|
Small and exquisite
|
|||
|
Multiple flow rate configurations
|
Flexible exit direction
|
4 hose diameters
|
Multiple colors
|
|||
Hot Sale Products ：
|
Product Parameters
|
|
|
||
|
Product name
|

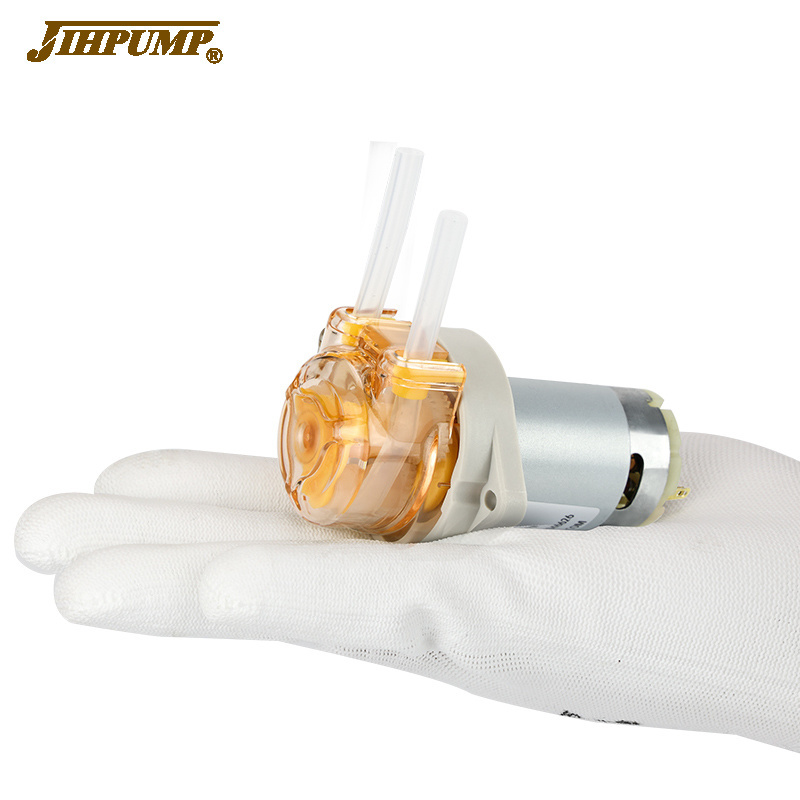

JIHPUMP DC 12V 24V Volt Small Mini Micro OEM Peristaltic Pump for Food Grade Medical Honey Soap Water Liquid Dosing Pumps Price
|
|
||
|
Model
|
293KC
|
FZ-C series（Rechargeable models）
|
||
|
Motor type
|
Stepper motor
|
|
||
|
Motor Features
|
Constant speed operation, forward rotation or reverse rotation, optional JZL-B speed control board to realize speed control
|
|
||
|
Motor life
|
500-1000h
|
|
||
|
Power supply
|
DC12V/24V，1A electricity
|
DC 12.6V,2A(overvoltage can not be charged)
|
||
|
Power:
|
15W
|
|
||
|
work environment
|
Temperature 0～60℃, relative humidity＜85%RH
|
|
||
|
Weight
|
145g
|
|
||
|
Outlet pressure
|
≤0.1MPa
|
|
||
|
Noise
|
≤80dB (The horizontal distance between the test product and the noise meter is 0.3 meters)
|
|
||
|
Function
|
Start and stop, forward and reverse (change positive and negative poles), speed up and down (speed control board can be additionally configured)
|
|
||
|
Main material
|
Pump Cover: Polycarbonate Wheel Frame: Polyacetal Roller: Polyamide
|
|
||
|
Reference flow： Unit(ml/min）
|
|
|
|
|
|
|||||
|
Hose type
|
Silicon hose
|
|
|
|
BPT hose
|
|||||
|
Tube ID*δ
|
ID1.0*δ1.0
|
ID2.0*δ1.0
|
ID3.0*δ1.0
|
ID4.0*δ1.0
|
ID3.0*δ1.0
|
|||||
|
Voltage speed
|
/
|
/
|
/
|
/
|
/
|
|||||
|
12V 600rpm
|
23
|
81
|
151
|
225
|
150
|
|||||
|
24V 680rpm
|
29
|
114
|
182
|
270
|
175
|
|||||
|
Explain
|
1. The flow rate is measured with clean water at room temperature of 23°C and no pressure at the inlet and outlet.
2. The life of the DC motor is about 500-1000 hours, and it is recommended for short-time gap operation.
|
|
|
|
|
|||||
Common Applications:
Medical testing analyzer
,
Experimental detection equipment
,
Aquarium filling
,
Inkjet printing equipment
，
Cleaning disinfectant delivery，
Food seasoning distribution ，
Environmental protection water quality analysis
etc.
Applications Industry:
Pharmaceutical industry
, Environmental protection instrument, Analytical Instruments, Inkjet Ink,
Food and Drink industry
, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，
Smart Home Appliances，
.
|
①Pump head
|
Multiple color pump covers meet the matching of different colors, which is convenient for visual management.
|
|
②Hose
|
Four inner diameters Hose optional
|
|
③Base
|
Imported materials High performance and reliability
|
|
④Roller
|
3 Reduction of rotor and driving gear
|
|
⑤Motor
|
12V 600rpm, 24V 680rpm
|
Various pump cover colors are available
Meet the matching of different colors and facilitate visual management
Meet the matching of different colors and facilitate visual management.
Connected to the hose Way:
The pump tube outlet directly to the pump.
Installation method / panel installation
Appearance and installation holes are compatible with friction peristaltic pumps, which is convenient for performance upgrade and quick replacement
.
DC motor control mode
1.Constant speed operation:
Control the start and stop of the pump through the power on and off
2.
Optional JZL-B Circuit board:
Product functions: start and stop, forward and reverse rotation, speed regulation
Power supply power: DC 12 ~ 24V, 2A Speed regulation mode 1: built in potentiometer speed regulation Speed regulation mode 2: external potentiometer speed regulation (optional) Suitable motors: 28, 32, 36, 37, tt-555, rg50
293KC Product size and installation hole drawing
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Packing&Shipping:
Standard export packing for JIHPUMP peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
Contact Us :
Email :sales@jihpump.com
FAQ:
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
