- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WCMI
-
Place of Origin:
-
Tianjin, China
-
Certification:
-
CE FCC ROHS
-
Read Distance:
-
30-230mm
-
Precisions:
-
1d ≥5mil / 2d ≥10mil
-
Symbol Contrast:
-
≥25%
-
Scan Card Support:
-
ISO14443A/B, Support ID physical ID
-
Scan Code Feedback:
-
Buzzer; The green light indicates code scanning
-
Scan Mode:
-
Active/Passive,support induction mode
-
Interface:
-
Wiegand,RS232,RS485
-
Voltage:
-
DC 12V(5V-30V)
-
IP Protection:
-
Front IP54
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
A4
-
Brand Name:
-
WCMI
-
Place of Origin:
-
Tianjin, China
-
Certification:
-
CE FCC ROHS
-
Read Distance:
-
30-230mm
-
Precisions:
-
1d ≥5mil / 2d ≥10mil
-
Symbol Contrast:
-
≥25%
-
Scan Card Support:
-
ISO14443A/B, Support ID physical ID
-
Scan Code Feedback:
-
Buzzer; The green light indicates code scanning
-
Scan Mode:
-
Active/Passive,support induction mode
-
Interface:
-
Wiegand,RS232,RS485
-
Voltage:
-
DC 12V(5V-30V)
-
IP Protection:
-
Front IP54
Product Description

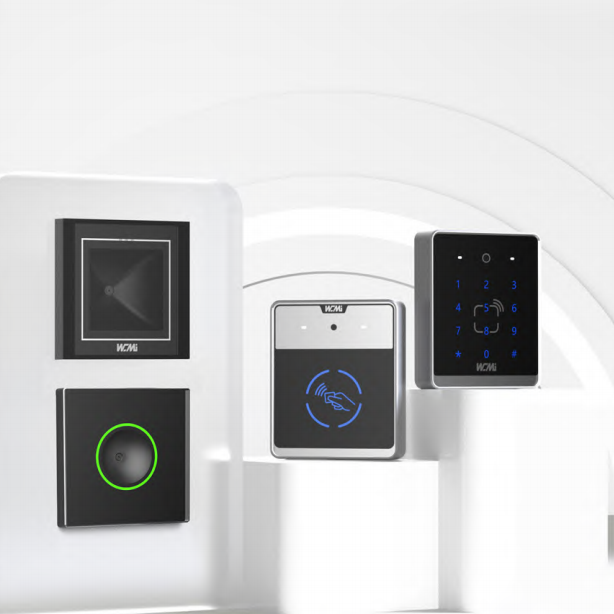

AC8630 is an wall-mounted access control scan code box with high integration and excellent performance. It supports M1, ID card and other credit card applications. With advanced image recognition algorithms，it easily read nearly all kinds of 1D and 2D codes.It can be widely used in various places such as communities, campuses, office buildings, etc.
Specification
|
item
|
value
|
|
Private Mold
|
Yes
|
|
Products Status
|
Stock
|
|
Type
|
Barcode Scanner
|
|
Scan Element Type
|
CMOS
|
|
Colour Depth
|
32 Bit
|
|
Interface Type
|
usb
|
|
Max Paper Size
|
A4
|
|
Optical Resolution
|
640*480
|
|
Scan Speed
|
80 fps/s
|
|
Brand Name
|
WCMi
|
|
Place of Origin
|
China
|
|
Warranty(Year)
|
1-Year
|
|
After-sales Service
|
Return and Replacement, Repair, Free spare parts, Call Center and on-line Technical Support
|
|
Software development kit (SDK)
|
Yes
|
|
color
|
Black
|
|
Image Sensor
|
640 x 480 CMOS,30fps
|
|
View Angle
|
Horizontal 63°, Vertical51°
|
|
Reading distance
|
0-200mm (6-inch mobile phone, wechat QR payment code)
|
|
Symbol Contrast
|
≥25%
|
|
Weight
|
100g
|
|
Scan code feedback
|
Light indication, serial port output
|
|
Interface
|
ergen, RS232, RS485, USB
|
|
Material
|
PC+ armoured glass
|
|
recognition mode
|
Active / passive, with support for induction mode
|
|
Dimensions
|
86mm*86mm*38mm
|
