Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyde-Maosheng
-
Product Name:
-
TQLZ Grain cleaning machine
-
Rated Capacity:
-
22-60 t/h cleaning
-
Where to Use:
-
Raw grain cleaning section, Seed cleaning plant
-
Function:
-
Grain separator to remove impurities by sifting action
-
Total Power:
-
1.5 kW
-
Grain Processing Screen Size:
-
150x200 cm
-
Design Technology:
-
Patented 201020207537.2
-
OEM Service:
-
Yes, grain cleaning screen customized
-
Supply range:
-
Turnkey project of flour mill, seed processing plant and grain storage
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
3100
-
Type:
-
Grain Processing Equipment
-
Use:
-
Raw Grain Precleaning Grading
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyde-Maosheng
-
Product Name:
-
TQLZ Grain cleaning machine
-
Rated Capacity:
-
22-60 t/h cleaning
-
Where to Use:
-
Raw grain cleaning section, Seed cleaning plant
-
Function:
-
Grain separator to remove impurities by sifting action
-
Total Power:
-
1.5 kW
-
Grain Processing Screen Size:
-
150x200 cm
-
Design Technology:
-
Patented 201020207537.2
-
OEM Service:
-
Yes, grain cleaning screen customized
-
Supply range:
-
Turnkey project of flour mill, seed processing plant and grain storage
-
After Warranty Service:
-
Video technical support
car grain cleaner mobile grain cleaning machine
Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976

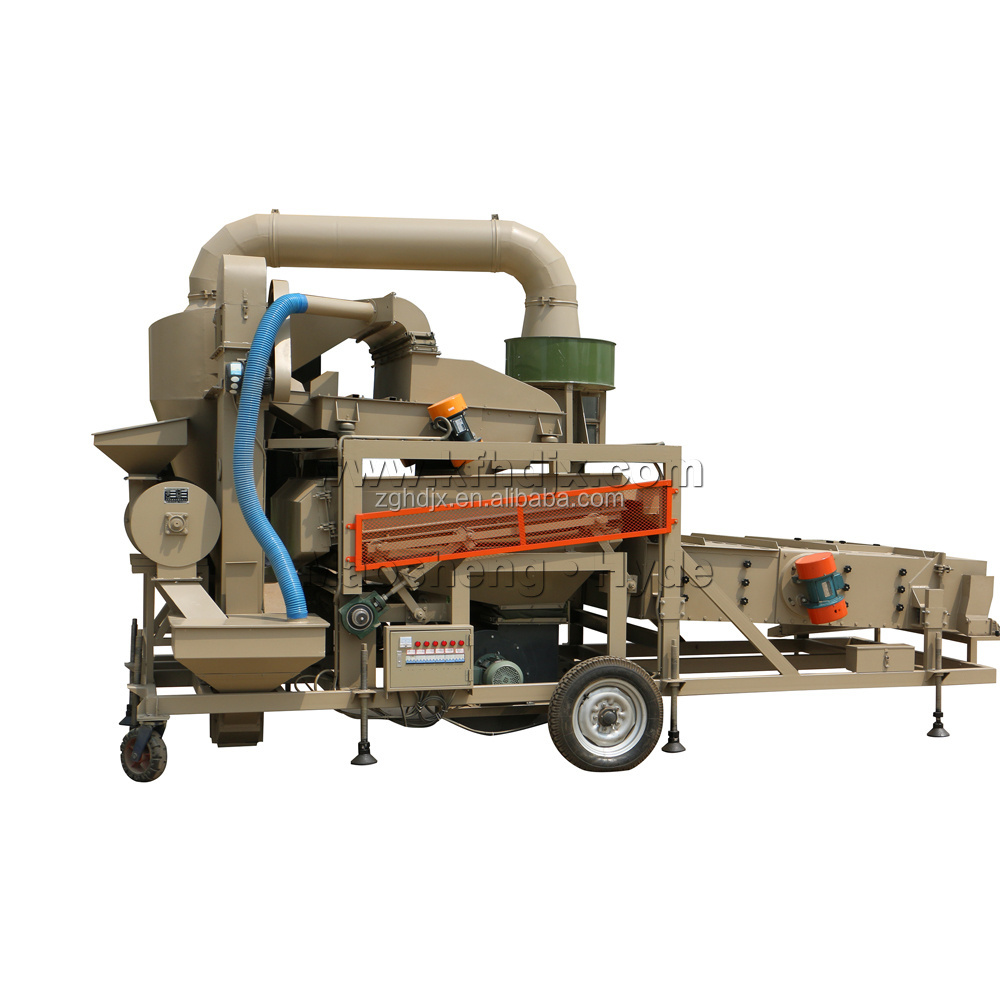

5XFZ Combined seed cleaner for Grains Seeds Pre-cleaning & Size Grading
1) Function: pre-cleaning and cleaning raw grains and seeds, grading by size, removing large and small impurities, and dust with aspirator system.
2) Application: raw grains and seeds
3) Capacity: 1~120 t/h for pre-cleaning, 1~25t/h for cleaning (based on wheat)
Application of 5XFZ combined seed cleaner
5XFZ combined seed cleaner r is widely used for pre-cleaning and cleaning of grains and seeds for granary and seed company , and raw grains for flour mill, rice mill, feed, chemical and food processing industry . One machine can clean various grains such as wheat, maize, rice, beans, oil seeds by changing different screens.
Hyde 5XFZ combined seed cleaner can further remove light impurities and dust if equipped with vertical air aspirator, and get ideal air cleaning effect by adjusting the machine according to impurity content of raw grains.
| For 3t/h beans cleaning plant | For 2t/h sesame cleaning plant |
| For 60t/d wheat flour mill | For 15t/h coffee bean cleaning plant |
Technical Specification of 5XFZ combined seed cleaner
|
Model |
Screen Size (W x L*layer)
|
Capacity on Wheat (t/h) |
Screen Angle (°) |
Power (kW) |
Weight (kg) |
Size (L x W x H) (mm) |
Air Suction Volume (m3/min)
|
||
|
Pre-cleaning |
Cleaning |
Pre-cleaning |
Cleaning |
||||||
|
5XFZ-5 |
2400*1500*3 |
6 |
5 |
6 |
6 |
15 |
190 |
2400*1250*3
|
22 |
|
5XFZ-10 |
2400*1500*3 |
12 |
10 |
6 |
6 |
15 |
3100 |
6000*2350*3560mm |
32 |
Features of 5XFZ combined seed cleaner
Modular drawer-type screens, easy to replace.
With grain flow distribution structure. Flow control system can be added.
* Large screen holes below for garlic slices cleaning
Different models of vibration screen cleaners and Mobile vibro cleaners with cyclone dust collector or aspirator.
Our main products are:
- Seed cleaning machines
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
- Flour mill complete plants: 40~1000 t/d.
- Dryer and grain handling
Seed cleaning machines:
Air Screen Fine Cleaner Seed Gravity Separator Indented Cylinder Separator
Stone Separator Vibration Screen Cleaner Separator Rotary Cleaner
