Also have modbus interface
support bi-direction energy measuring
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KY
-
Model Number:
-
KYM4160C
-
Accuracy Class:
-
class 1 or class 0.5s
-
Output Voltage:
-
85 to 275V AC
-
Operating Temperature:
-
'-25 to +55℃
-
Dimensions:
-
98*75*80mm
-
Product name:
-
Single Phase Electric Meter
-
model:
-
KYM4160C
-
Operational voltage:
-
85 to 275V AC
-
Max current:
-
80A
-
connect type:
-
direct connect
-
measure:
-
bi-directional energy
-
Interface and communication protocol:
-
RS485:Modbus RTU
-
wireless Communication:
-
zigbee
-
Installation method:
-
din rail type
-
Measurement accuracy:
-
class 1 or class 0.5s
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-99999
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KY
-
Model Number:
-
KYM4160C
-
Accuracy Class:
-
class 1 or class 0.5s
-
Output Voltage:
-
85 to 275V AC
-
Operating Temperature:
-
'-25 to +55℃
-
Dimensions:
-
98*75*80mm
-
Product name:
-
Single Phase Electric Meter
-
model:
-
KYM4160C
-
Operational voltage:
-
85 to 275V AC
-
Max current:
-
80A
-
connect type:
-
direct connect
-
measure:
-
bi-directional energy
-
Interface and communication protocol:
-
RS485:Modbus RTU
-
wireless Communication:
-
zigbee
-
Installation method:
-
din rail type
-
Measurement accuracy:
-
class 1 or class 0.5s
Product Description

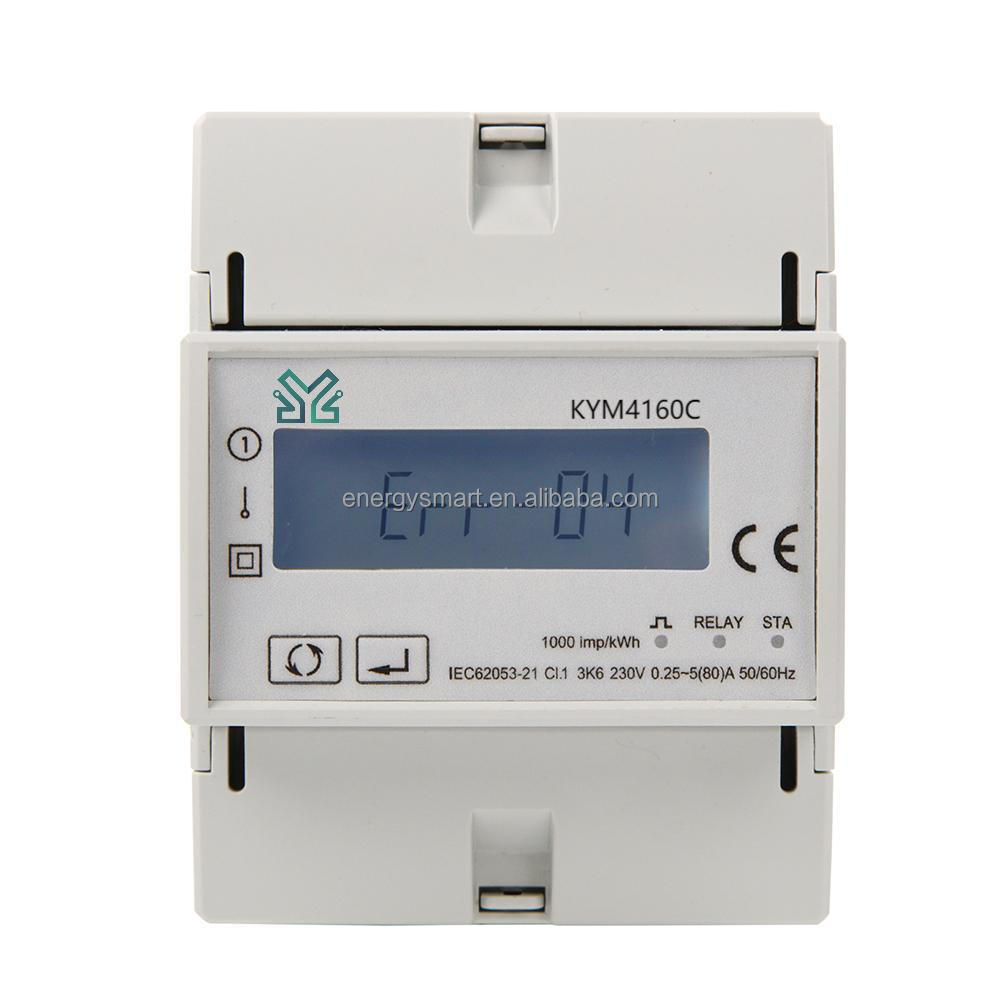

KYM4100C series products are single phase multi-function rail installtion enegery meter. This series of products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc., It also can support tuya wifi, tuya zigbee and also can do modbus communication type, the in-built relay can remotely control off/on the device. The
Characters as below:
1.Max current:80A
2. Standard 2-modulus width,TH35-7.5 type rail installation
3.Touch key design improves the operation of the keys and reduces the key failure rate.
4.Multi-function parameter measurement for voltage, current, active power, reactive power, apparent power, power factor, and phase angle
5.Support two-way energy metering, providing monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days.
Products Display
this single phase energy meter carrying tuya platform, can connect with
tuya app and tuya software
, communication can choose M
WIFI,Zigbee,NB,4G
Products Application
Specification
|
|
Rate voltage (Un)
|
110V or 230V AC
|
|
|
Operational voltage
|
85 to 275V AC
|
|
|
Maximum current(Imax)
|
80A
|
|
|
Pulse constant
|
1000 imp/kWh
|
|
|
Display
|
LCD with backlight
|
|
|
Maximum reading of energy
|
999999.99 kWh/kVarh
|
|
|
Measure type
|
Single phase two wire
|
|
|
Voltage, Current
|
±0.5%
|
|
|
Active power
|
±1.0% or 0.5%
|
|
|
Reactive power
|
±2.0%
|
|
|
Apparent power
|
±1.0%
|
|
|
Active energy
|
±1.0% or 0.5%
|
|
|
Reactive energy
|
±2.0%
|
|
|
Power factor
|
±1.0%
|
|
|
Frequency
|
±0.2%
|
|
Environmental Characteristics
|
Operating Temperature
|
'-25 to +55℃
|
|
|
Storage Temperature
|
'-40 to +80℃
|
|
|
Humidity
|
< 90%, non-condensing
|
|
Communications
|
Interfaces standard and protocols
|
2-wire RS485, Modbus RTU Optional: Mbus
|
|
|
Wireless
|
WIFI, LoRa, NB-IoT, 4G，Zigbee
|
Products size and Wiring drawings
Packing & Delivery
Package and be customized or our standard
Delivery time: within 10 days after payment
