Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIDA GLASS
-
Model Number:
-
AR glass
-
Material:
-
Soda-lime glass/Aluminosilicate glass
-
Type:
-
Tempered glass
-
Edge:
-
Grinding/Polished
-
Color:
-
Clear, black, white, customized
-
Printing:
-
Customized
-
Certificate:
-
RoHs, REACH
-
Size:
-
Customised
-
Surface treatment:
-
AR/AG/AF coating
-
Transmittance:
-
>94%
Quick Details
-
Application:
-
Workshop, Home Office
-
Usage:
-
Industrial, Medical, Display screen, Instrument
-
Thickness:
-
0.5-19mm, 0.5-19mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIDA GLASS
-
Model Number:
-
AR glass
-
Material:
-
Soda-lime glass/Aluminosilicate glass
-
Type:
-
Tempered glass
-
Edge:
-
Grinding/Polished
-
Color:
-
Clear, black, white, customized
-
Printing:
-
Customized
-
Certificate:
-
RoHs, REACH
-
Size:
-
Customised
-
Surface treatment:
-
AR/AG/AF coating
-
Transmittance:
-
>94%

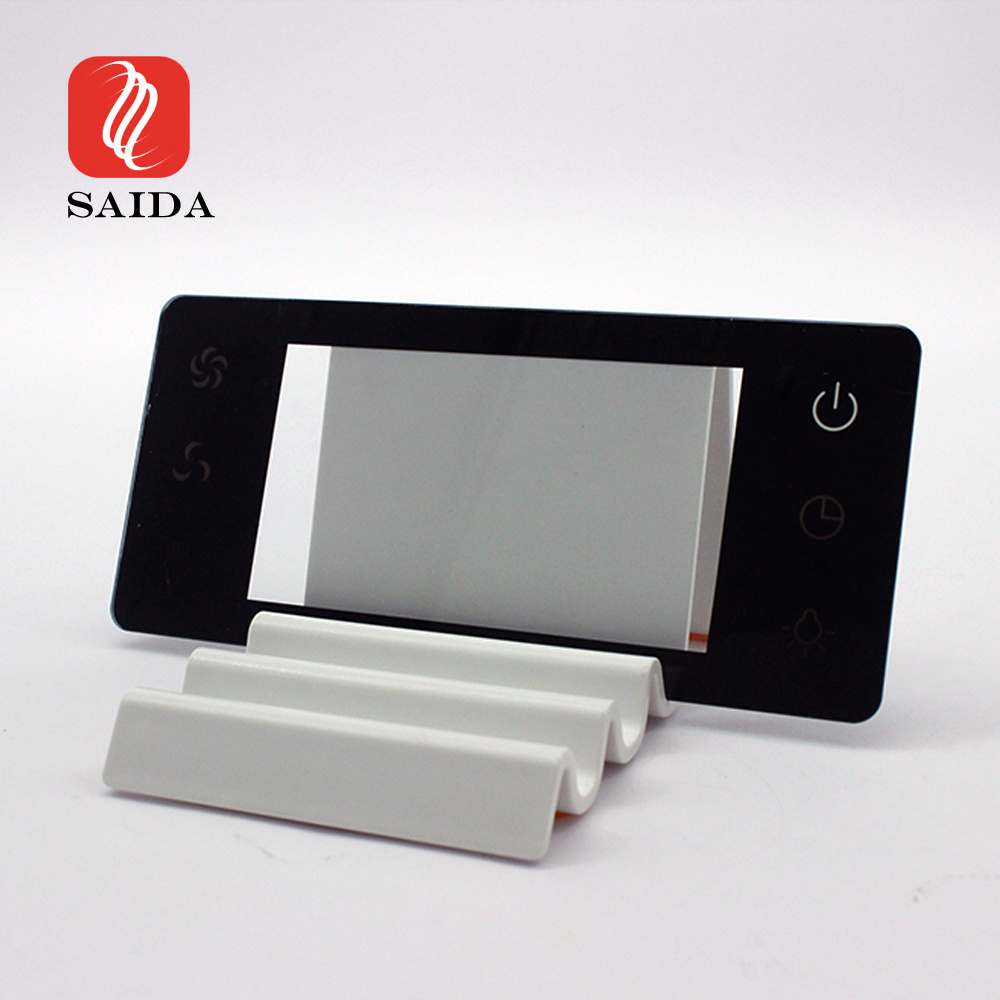

High Transmission AR Coating Anti-Reflective Cover Glass
|
Product Type
|
High Transmission AR Coating Anti-Reflective Cover Glass
|
|
|
|
|
|
|||||
|
Glass Material
|
Soda lime glass/Aluminosilicate glass/Low Iron glass/Borosilicate glass
|
|
|
|
|
|
|||||
|
Size
|
Size can be customized
|
|
|
|
|
|
|||||
|
Thickness
|
0.5-12mm
|
|
|
|
|
|
|||||
|
Tempered
|
Thermal Tempered/Chemical Tempered
|
|
|
|
|
|
|||||
|
Edge treatment
|
CNC grind, polished, chamfered
|
|
|
|
|
|
|||||
|
Hole
|
Round/Square (Irregular hole are available)
|
|
|
|
|
|
|||||
|
Color
|
Black/White/Silver (up to 7 layers of colors)
|
|
|
|
|
|
|||||
|
Printing Method
|
Normal Silkscreen printing/High Temperature Silkscreen printing
|
|
|
|
|
|
|||||
|
Coating
|
Anti-Glaring
Anti-Reflective Anti-Fingerprint Anti-Scratches |
|
|
|
|
|
|||||
|
Production Process
|
Cut-Edge Polish-CNC-Clean-Tempered-Print-Clean-Inspect-Pack
|
|
|
|
|
|
|||||
|
Features
|
Anti-scratches/Waterproof/anti-fingerprint/anti-fire/easy to clean/high-pressure scratch resistant
|
|
|
|
|
|
|||||
Product Description:
Anti reflective glass
AR coating glass is formed by coating multi-layer nano-optical materials on the glass surface by vacuum reactive sputtering to achieve the effect of increasing the transmittance of the glass and reducing the surface reflectivity.
It is mainly used in display product protection screens such as: 3D TVs, tablet computers, mobile phone panels, Media advertising machines, educational machines, cameras, medical instruments and industrial display equipment, etc.
AR glass compared with other related products:
|
AR glass
|
High transmittance (max be 99%), low reflection (less than 2%), easy to clean, no aging, no deformation, not easy to scratch and leave traces, etc.
|
|
AR film on surface
|
Low transmittance, not resistant to acid and alkali, easy to detach from moisture absorption, poor scratch resistance (≤3H), easy to create on the surface destructive scratches.
|
|
Acrylic panel
|
High reflectivity, lack of texture, not resistant to acid and alkali, easy to age, poor scratch resistance (≤3H), easy to manufacture destructive scratches, poor flatness, not suitable for large-size display products
|
The features of AR glass
Parameters of AR glass
|
Parameters
|
Ordinary glass
|
One side AR glass
|
Double sides AR glass
|
|
|
Color
|
Clear
|
Blue-purple
|
Natural color
|
|
|
Optical curve
|
|
V
|
W
|
|
|
Transmittance
|
≤89%
|
≥93%
|
≥98%
|
|
|
Reflection
|
≥8.4%
|
≤5.2%
|
≤1%
|
|
|
Application
|
Low-end product
|
Mid-range display panel
|
High-end display panel
|
|
|
Hardness
|
≥7H
|
≥7H
|
≥7H
|
|
|
High temperature resistance
|
|
Fully tempered or semi-tempered at 650 degrees, AR coating layer no change.
|
|
|
Glass panel application:
Product Description
What is safety glass?
Tempered or toughened glass is a type of safety glass processed by controlled thermal or chemical strengthened to increase its strength compared with normal glass.
Tempering puts the outer surfaces into compression and the interior into tension.
Tempered or toughened glass is a type of safety glass processed by controlled thermal or chemical strengthened to increase its strength compared with normal glass.
Tempering puts the outer surfaces into compression and the interior into tension.
Edge & Angle & Shape Work
Packing & Delivery
double side protective film,
wraped by kraft paper,
then in Polywood crates.
