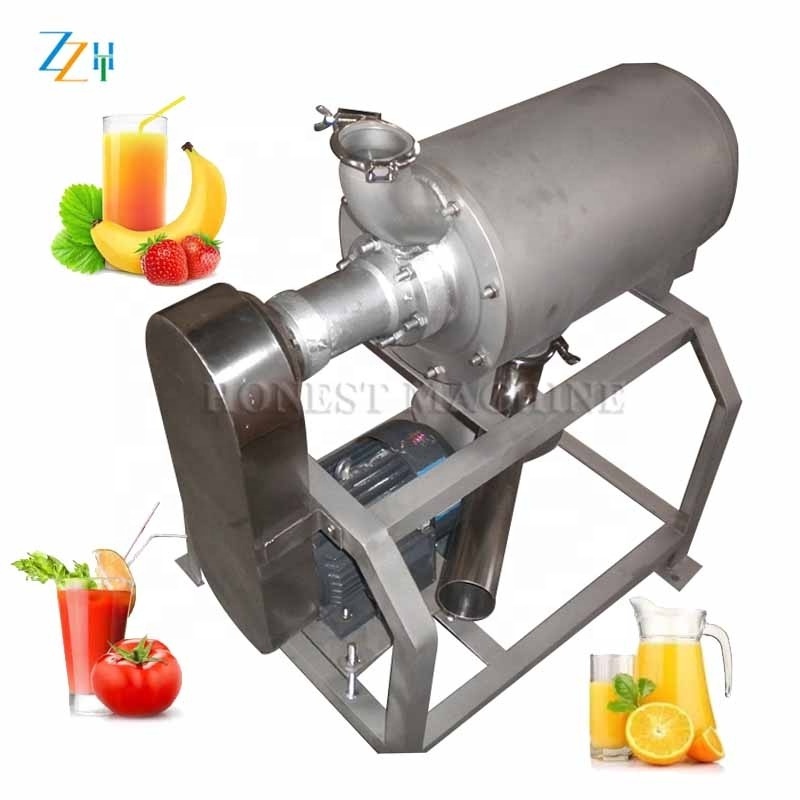

High Performance Orange Pulping Machine / Persimmon Pulp Machine / Guava Pulp Machine

Structure introduction

1 Single channel denucleation:For denucleate structure, designed to denucleate use;

2 Double channels denucleation:Structure and to the first line of the nuclear structure of single channel pulper, the name of the second structure is beating structure, beating role;

3 Double channels beater:Each structure and single channel beater.

4 Double channels denucleation beater:First channel is the same with single channels denucleation beater no increase in single channel pulper rotor structure., The second channel has the same structure with single channel beater.

Working principle

1, )DJ beater: motor through a belt drive, make installed on the spline scraper high-speed rotation, when after the broken fruit through the inlet into the machine, pulp tray to send the materials uniform rows to be scraper and screen mesh. Due to the effect of rotation of the scraper and the existence of the lead Angle, make the material move along the cylinder to the outlet, the moving track of spiraling, material on the scraper and the effect of the centrifugal force in the process of moving between cylindrical screen was chopped, juice and meat quality (has) pulp through into the next procedure, from the mesh (double, three pulper for linkage) repeat the above process, such as the skins and seeds from the slag discharge, in order to achieve the purpose of automatic separation. As long as the different specifications of the mesh screen and adjust the size of the scraper lead Angle, it can change different beating speed, to obtain satisfactory results.

2, )MDJ beater: motor through a belt drive, the installation in the high speed of rotor on the spline, and fruit by the inlet into the machine, feeding the blade material screw conveyor to beating stick, in beating bar, under the action of the material being mash. Due to the existence of the centrifugal force, the material of the juice and meat quality (paste), through the mesh on the screen into the next beating (screen hole according to the size of the fruit nuclear), the nucleus by the slag slurry discharge slag notch, so as to realize automatic slag slurry separation.

This machine has ChanDaoHe double two models, when used in stone fruits (mango) beating, if choose single channel to nuclear beater, flesh from the hopper into the buffer tank, nuclear from the slag discharge. To nuclear double beater, head to go nuclear, two way beating realizes automatic separate the stone of the fruit, fruit and slag. Recommended users choose priority to nuclear two-channel beater. Beating the principle reference DJ beater.

If you need further information, please contact us freely, we will do our best to cooperate with you.
