Quick Details
-
Model Number:
-
XYK 114/117
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
700PSI
-
Contact Material:
-
Silver Alloy
-
Set Point:
-
5-650psi(Pressure ,Factory Calibrated)
-
Electric Rating:
-
120VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA
-
Contact Type:
-
SPST NO or NC
Quick Details
-
Max. Voltage:
-
AC250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LY
-
Model Number:
-
XYK 114/117
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
700PSI
-
Contact Material:
-
Silver Alloy
-
Set Point:
-
5-650psi(Pressure ,Factory Calibrated)
-
Electric Rating:
-
120VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA
-
Contact Type:
-
SPST NO or NC

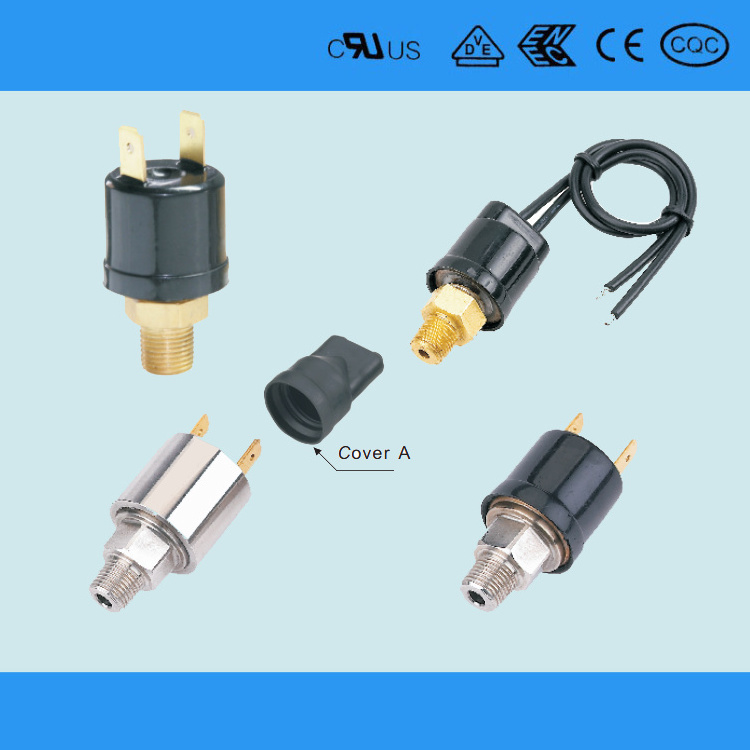

XYK-114/117 Pressure Switch
Automatic Reset
Single-Pole,single throw switch
normally open or normally close
Factory calibrated set point from 5 PSI to 650PSI
High cycle life-Proven reliability
Custom engineered solutions
Applications: Comperssors & Pumps,Hydraulics
Pneumatics,Engine Controls
Construction Equipment
Agricultural Equipment
| Model | XYK-117 | XYK-114 |
| Set Point | 5-650psi(Pressure ,Factory Calibrated) | |
| -1.5- -12.5psi(Vacuum , Factory Calibrated) | ||
| Electric Rating | 120VAC,5.8FLA-34.8L | |
| 120VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA | ||
| Proof Pressure | 700psi, other are optional | |
| Temperature | -20~90℃ | |
| Contact Material | Ag alloy | |
| Contact type | SPST NO or NC | |
| Terminal | 6.3mm Blade | Wire leads with connector |
Size and Drawing
