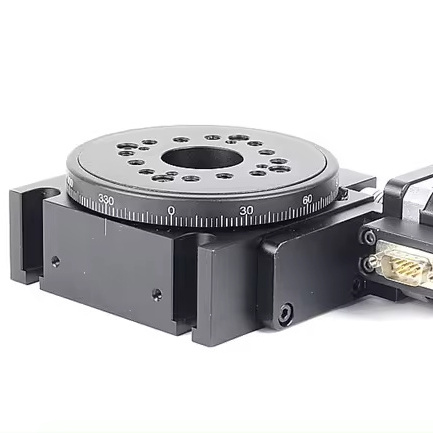

Motorized Rotation Stages

FOB Reference Price: Get Latest Price

≥1 Sets

US $378

≥5 Sets

US $340

≥10 Sets

US $321

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Aluminium alloy

Power:: motor

Voltage:: 220V

Product name:: Rotation stage

Quick Details

Place of Origin:: Beijing, China

Brand Name:: SOFN

Model Number:: 7SRA1100

Material:: Aluminium alloy

Power:: motor

Voltage:: 220V

Product name:: Rotation stage

Character
·RS232 for computer control
·High load capacity, long life
·Worm drive,little hysteresis,double direction rotation
·Reducing clearance for long time working
·Central hole for positioning
·Metallic wrapped spring coupling, low noise
·Servomotor is also available for industrial application

Specifications

model	7SRA1100
Platform diameter(mm)	100
Transmission ratio	180:1
Repeatability(°)	0.005
Motor	42
Stationary moment (N.m)	0.4
Rating current (A)	1.7
Maximum speed (°/sec)	25
Resolution (8-subdivision) (°)	0.00125
Central hole diameter(mm)	46 ^+0.025
Central load capacity (Kg)	50
weight(Kg)	1.8
