Data Monitoring
Voltage, Current, Tmperature, etc.
Safety Protection
Overcharge, Overdischarge, Overcurrent, Overtemperature, Online alarm, etc.
Data Interaction
CAN, RS485,
- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
640*400*1604mm
-
Weight:
-
184kg
-
Nominal Voltage:
-
153.6V
-
Nominal Capacity:
-
300ah, 400Ah, 1000Ah
-
Battery type:
-
Lifepo4 battery
-
OEM/ODM:
-
Avaiable
-
Warranty:
-
5Years
-
Cycle life:
-
6000 Times
-
Payment:
-
Paypal.TT.Western Union
-
MOQ:
-
2
-
Shipping:
-
UPS DHL Fedex TNT
-
Apllication:
-
Home Solar Energy Storage Sysytem
Quick Details
-
Model Number:
-
High voltage solar system battery
-
Brand Name:
-
CTS
-
Place of Origin:
-
Hunan, China
-
Dimension (L*W*H):
-
640*400*1604mm
-
Weight:
-
184kg
-
Nominal Voltage:
-
153.6V
-
Nominal Capacity:
-
300ah, 400Ah, 1000Ah
-
Battery type:
-
Lifepo4 battery
-
OEM/ODM:
-
Avaiable
-
Warranty:
-
5Years
-
Cycle life:
-
6000 Times
-
Payment:
-
Paypal.TT.Western Union
-
MOQ:
-
2
-
Shipping:
-
UPS DHL Fedex TNT
-
Apllication:
-
Home Solar Energy Storage Sysytem

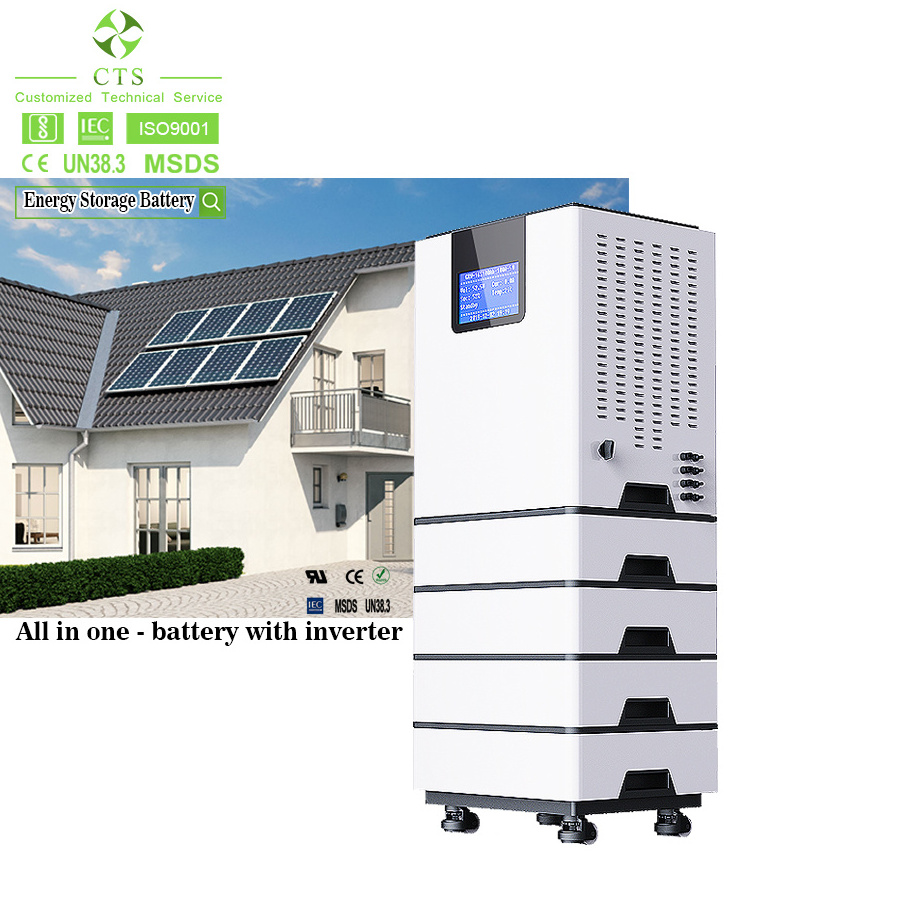

CTS 10kw 15kw 20kwh 30 kwh lifepo4 high voltage solar lithium ion batteries for cars
★ A+++ LFP cell and reliable BMS design
★ Module design with flexiable expansion to 30kwh
★ Pulley and rail design ensures easy and quick in stallation of the system
★ Build in MPPT with 99% efficient
★ High voltage battery with high voltage inverter provide high efficient storage system
★ Operating temperature ranges from -10C to 55C
|
System specification
|
|
|
|
|
||||
|
Model
|
HS15-HP8T
|
HS20-HP10T
|
HS25-HP12T
|
HS30-HP12T
|
||||
|
Inverter parameter
|
|
|
|
|
||||
|
PV input power
|
10kW
|
13kw
|
15kw
|
15kw
|
||||
|
Max.input current of single MPPT
|
12.5A
|
|
|
|
||||
|
Max PV Open Circuit Voltage
|
1000VDC
|
|
|
|
||||
|
MPPT Voltage Range
|
180~850VDC
|
|
|
|
||||
|
MPPT tracker/strings
|
2/1
|
|
|
|
||||
|
EPS output power
|
8.8KVA
|
11KVA
|
13.2KVA
|
13.2KVA
|
||||
|
EPS output current
|
12.7A
|
15.9A
|
19.1A
|
19.1A
|
||||
|
EPS output voltage
|
400VAC
|
|
|
|
||||
|
EPS output frequency
|
50/60HZ
|
|
|
|
||||
|
EPS Transfer Time
|
≤ 20ms
|
|
|
|
||||
|
AC grid voltage/range
|
400/360~440
|
|
|
|
||||
|
Grid frequency
|
50/60HZ, Auto detect
|
|
|
|
||||
|
Power factor
|
0.8lagging-0.8leading
|
|
|
|
||||
|
THDi
|
<3%
|
|
|
|
||||
|
AC output topology
|
3W+N+PE
|
|
|
|
||||
|
Battery parameter
|
|
|
|
|
||||
|
Battery Type
|
LiFePo4
|
LiFePo4
|
LiFePo4
|
LiFePo4
|
||||
|
Rated voltage
|
153.6V
|
204.8V
|
256V
|
307.2V
|
||||
|
Energy(25°C, 0.5C）
|
15.36kwh
|
20.48kwh
|
25.6kwh
|
30.72kwh
|
||||
|
System parameter
|
|
|
|
|
||||
|
Display
|
7 inch touch LCD
|
|
|
|
||||
|
System charge/discharge efficient
|
>98%
|
|
|
|
||||
|
Operating temperature
|
-10°C~60°C
|
|
|
|
||||
|
Humidity
|
15%~85%(No condensation)
|
|
|
|
||||
|
Size(W*D*H)
|
640*400*1604mm
|
640*400*1872mm
|
640*400*2140mm
|
640*400*2408mm
|
||||
|
weight
|
184kg
|
232kg
|
280kg
|
328kg
|
||||
★Can be stacked
Mobile home enrgy storage battery, A single battery is 5KH, which can
be satcked up to 30KH,Effectively respond tosudden power outages and
planned power restrictions
Optional Off-grid/on-grid inverter
Integrateddesign,Off-grid operation
supporting emergencypower
supply,switchable at any time，
multiple inverter modes,3/4/5KW
★ Intelligent Battery Management System
Smart 7 Inch Touch screen display the parameters of theequipment in real time,and the runningstatus is clear at a glance.
Residential Energy Storage System
The intelligent small energy storage system is combined with advanced LiFe-PO4 lithium batteries, hybrid inverters, energy management systems, and photovoltaic module systems, which is suitable for household energy storage, farms, and other applications.
10+ years to sharpen a sword. We do only one thing, professional customization. 20 + R&D team 150 front-line production employees
10 production lines 20,000 square meter plant Capacity up to 500mwh
