Quick Details
-
Model Number:
-
XJ-S5
-
Certification:
-
CE
-
Voltage:
-
230/380V
-
Flow Rate:
-
0.015-0.05m³/s
-
design head:
-
10-30m
-
Type:
-
Double jet excitation oblique impact water turbine
-
Power(kw):
-
5
-
Water Head(m):
-
10-30
-
Flow Rate(m3/s)::
-
0.015-0.05
-
Suggested pipe diameter:
-
>100
-
Suggested water head:
-
>15m
Quick Details
-
Power:
-
5KW
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Royway
-
Model Number:
-
XJ-S5
-
Certification:
-
CE
-
Voltage:
-
230/380V
-
Flow Rate:
-
0.015-0.05m³/s
-
design head:
-
10-30m
-
Type:
-
Double jet excitation oblique impact water turbine
-
Power(kw):
-
5
-
Water Head(m):
-
10-30
-
Flow Rate(m3/s)::
-
0.015-0.05
-
Suggested pipe diameter:
-
>100
-
Suggested water head:
-
>15m
Water turbine are widely used in recent years, with the competitive price and other advantages,oblique impact turbine,Kaplan turbine ,francis tubine and axial-flow type tubine have been known and are deeply loved by masses of customers both at home and aboard.
Product Description
Oblique Impact Turbine
Oblique impact turbine
is mainly suitable for use with a water head of 20-100 meters, using pipeline installation and simple installation. There are mainly two types of horizontal and vertical units. Horizontal units have the advantages of simple structure, convenient maintenance, reducing the height of the factory building, reducing excavation depth, etc. Vertical units have the advantages of small factory area size, multiple nozzles can be installed on one runner, high specific speed, relatively small size of units with the same capacity, and light weight. According to the changes in user water flow rate,vertical and horizontal models are further divided into single nozzle and double nozzle models
|
Product Name
|

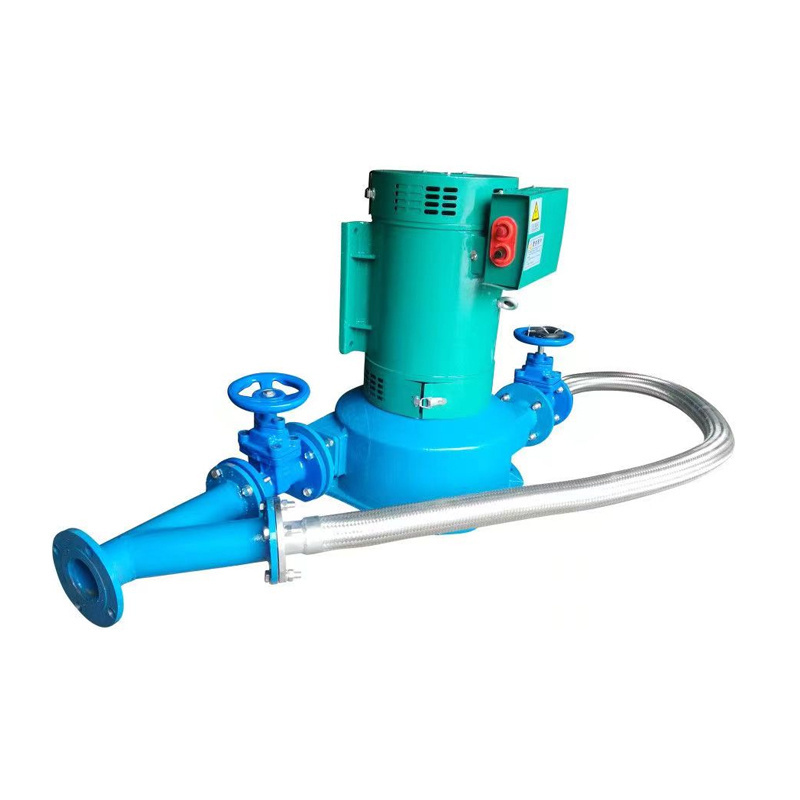

Double jet excitation oblique impact water turbine
|
Power(kw)
|
5
|
|
Head(m)
|
10-30
|
Flow(m³/s)
|
0.015 -0.05
|
Before purchasing the unit, the following information needs to be provided:
① How many meters of water head?
② What is the flow rate (m³/s)?
③ Generator voltage level? 380V, 50Hz or 60Hz, 3 phase ?
