Get passed CE/ROHS certification
2, Low temperature resistance -25℃, high temperature resistance +80℃
3, UV resistance, flame retardant grade V1-V0
4, Integrated housing molding, waterproof IP65, available for indoor &outdoor
5, High luminous efficiency, high brightness, good subsidiary lighting for site
6, Portable reel design, convenient movement and installation
7, No external power adapter, direct AC110V/220V connecting wire, long distance running , suitable for subway, tunnel, mine,
bridge ,underground mine road and other applications
- Product Details
- {{item.text}}
Quick Details
-
Color Rendering Index(Ra):
-
85
-
Product Weight（kg）:
-
12.5
-
Input Voltage(V):
-
AC100-265V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
25 - 85
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
SHENZHEN CHINA
-
Brand Name:
-
DELIKAY
-
Model Number:
-
DL-AC22
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Lamp Luminous Flux(lm):
-
22000
-
Warranty(Year):
-
3-Year
-
Color Rendering Index(Ra):
-
85
-
Product Weight（kg）:
-
12.5
-
Input Voltage(V):
-
AC100-265V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
25 - 85
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
SHENZHEN CHINA
-
Brand Name:
-
DELIKAY
-
Model Number:
-
DL-AC22
We provide you with full range of LED lights and accessory parts in the field of signs, advertising, decoration! One-stop service & turn-key solution available!
|
Model
|
Width:mm
|
Lamp bead
|
CCT
|
Packing
|
GW,: kgs
|
|
2835-144-220V
|
10
|
2835
|
3000-6500K
|
50m/reel/ctn
|
9
|
|
2835-240-220V
|
10
|
2835
|
3000-6500K
|
50m/reel/ctn
|
9.5
|
|
5050-60-220v
|
10
|
5050
|
3000-6500k
|
50m/reel/ctn
|
9.2
|
High voltage LED strip lights are a popular option for a variety of lighting projects or holiday decoration ,because they offer bright light, colorfull options, easy installation. With PVC or silicone tube outside, it has good waterproof performance and perfect lighting effect in indoor and outdoor scenes .
Popular model details
Installation Accessories
Cautions!
1
. Each roll of LED strip lighttake the rectifier bridge stack and AC plug which can connect the utility power directly. DO NOT overload. The circuit has a circuit protector to ensure its working voltage ranges ±5% of its rated parameter.
2. If you need to customize the length, it should be cut at the clipping position marked on the strip body which usually is 1meter per cutting. Please take the end cap with silicone glue at the cutting position to get waterproof performance.
3. Do not twist the strip light sharply and continuously in which case may cause fatigue damage to the PCB . The twisting angle should not be above 45 degrees, and do not bend the strip light in an arc less than 60mm in diameter.
4. Please install the product in places with good ventilation conditions. DO NOT light up the whole roll untill spread out the lights, to get better heat dissipation .
5. In order to ensure the life span of the strip light, DO NOT pull, crash and squeeze the strip light sharply during
installation. The installation and fixing must be firm, without flapping or swinging.
6. Part of this product is waterproof of IP65, and the connector part is only for pre-fixing and protecting against electric shock when shipped from the factory; When used outdoors, the joint must be placed in an environment without water or sealed by professional electricians to ensure that the joint position will be waterproof
2. If you need to customize the length, it should be cut at the clipping position marked on the strip body which usually is 1meter per cutting. Please take the end cap with silicone glue at the cutting position to get waterproof performance.
3. Do not twist the strip light sharply and continuously in which case may cause fatigue damage to the PCB . The twisting angle should not be above 45 degrees, and do not bend the strip light in an arc less than 60mm in diameter.
4. Please install the product in places with good ventilation conditions. DO NOT light up the whole roll untill spread out the lights, to get better heat dissipation .
5. In order to ensure the life span of the strip light, DO NOT pull, crash and squeeze the strip light sharply during
installation. The installation and fixing must be firm, without flapping or swinging.
6. Part of this product is waterproof of IP65, and the connector part is only for pre-fixing and protecting against electric shock when shipped from the factory; When used outdoors, the joint must be placed in an environment without water or sealed by professional electricians to ensure that the joint position will be waterproof
Packing details

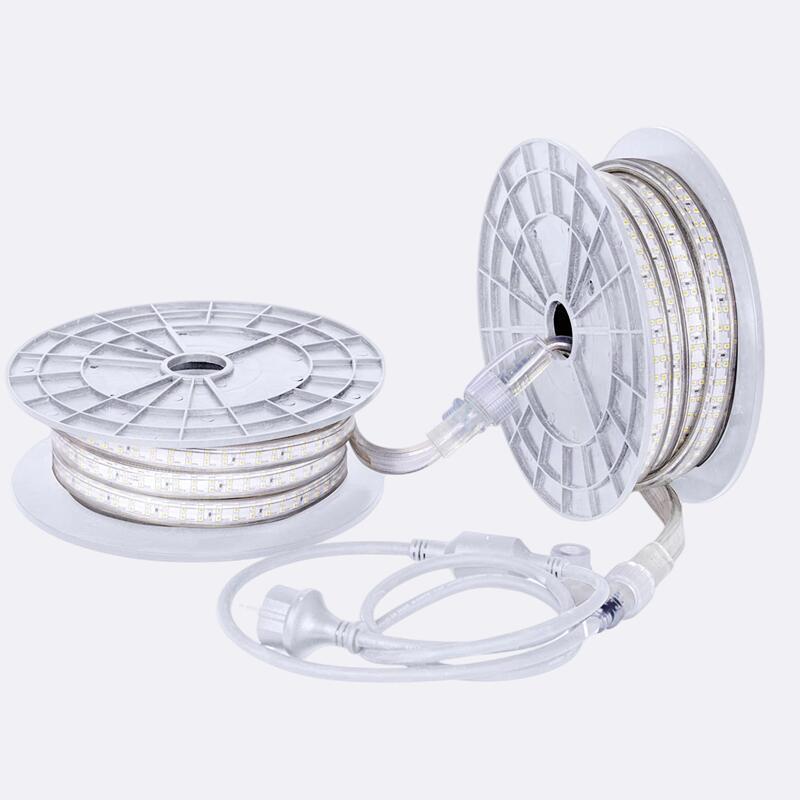

50m/reel plastic reel. 50m/reel is available
50m/reel/ctn
Ctn size: 38*38*25cm GW: 9Kgs
Ctn size: 38*38*25cm GW: 9Kgs
Remark: the high volt strip is a little heavy so we suggest to ship by sea in which way can get lower shipping cost.
Our Showroom
Huizhou Delikay Decor Materials Co.,ltd is specilized in the field of signage lighting, residential lighting and engineering lighting. We are always committed to supply with green , ECO-friendly and energy-saving lighting products, as well as professinonal solutions for worldwide customers in the signs ,decoration and building contractor industrial. What we pursue is the simple and minimal style, to serve our customer in a manner of easy and relaxed interaction working.
Workshop&production line
Certificate
FAQ
1: What's the MOQ?
For the LED light, the order is range from 500-5000pcs just based on total value.
2:What's your service?
We can provide integrated service including the chosen of LED lights, power supply and aluminum profile matched solution, as well
as related cabinet, wall panel. You can even DIY the simple decoration for your house or store.
3::How about the shipment?
We can help you do the partial mixed loading in the case of several goods. Save your time and cost.
For the LED light, the order is range from 500-5000pcs just based on total value.
2:What's your service?
We can provide integrated service including the chosen of LED lights, power supply and aluminum profile matched solution, as well
as related cabinet, wall panel. You can even DIY the simple decoration for your house or store.
3::How about the shipment?
We can help you do the partial mixed loading in the case of several goods. Save your time and cost.
§ We are always committed to supply our customers with green products, ECO-friendly and energy-saving.
§ What we focus on is help you save time ,energy and labour cost. We can do most of the work for you!
