Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
240 mm
-
Range of Spindle Speed(r.p.m):
-
1120 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
1.1 T
-
Color:
-
Customized
-
Name:
-
Vertical Cylinder Boring machine
-
Product name:
-
Brake Lathe machine
-
Item:
-
T8216D
-
Payment Term:
-
T/T 30% Deposit
-
Bored hole diameter:
-
15-150mm
-
Motor power:
-
1.5kw
Quick Details
-
Table Size (mm):
-
1850*110*1700 mm
-
Table Travel (X) (mm):
-
320 mm
-
Table Travel (Y) (mm):
-
80 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
240 mm
-
Range of Spindle Speed(r.p.m):
-
1120 r.p.m
-
Place of Origin:
-
China
-
Weight (T):
-
1.1 T
-
Color:
-
Customized
-
Name:
-
Vertical Cylinder Boring machine
-
Product name:
-
Brake Lathe machine
-
Item:
-
T8216D
-
Payment Term:
-
T/T 30% Deposit
-
Bored hole diameter:
-
15-150mm
-
Motor power:
-
1.5kw
Product Description

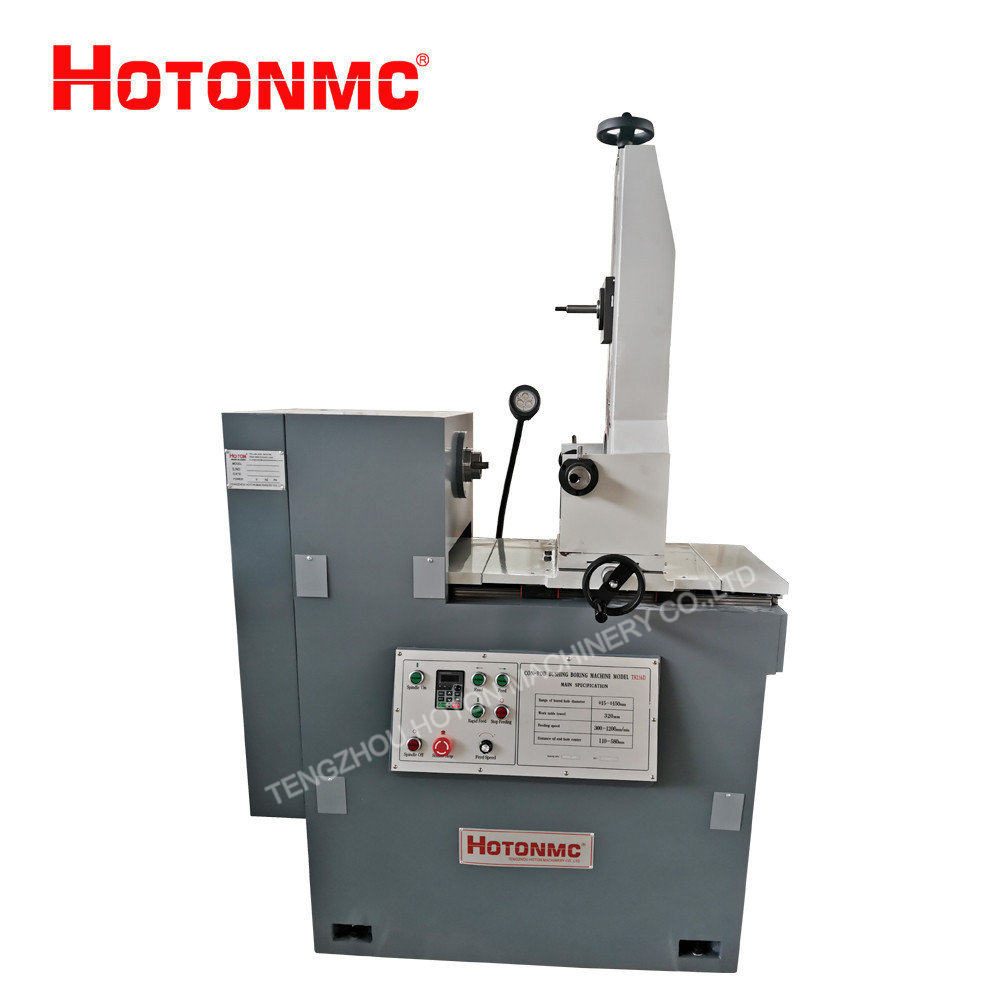

The machine is mainly used for boring the hole (rod bushing and copper bush) of of diesel and gasoline engine of automobiles and
tractors and also can make the micro boring on its base hole.
Feature
1. The feeding system of the tools has two ways: manual and automatic.
2. The auto feeding system adopts the stepless regulation, suitable for processing different size and materials of con-rod
bushing.
3. The machine is equipped with complete accessories, convenient for processing different size of rod.
4. Linear guide and ball screw for stable movement of worktable
|
Specification
|
T8216D
|
|
Bored hole diameter
|
15 to 150 mm
|
|
Distance of rod 2 hole centers
|
85 to 600mm
|
|
Longitudial travel of work table
|
320mm
|
|
Spindle speed (Stepless speed regulation)
|
140 to 1200rpm
|
|
Tranverse adjusting amount of fixture
|
80mm
|
|
Feeding speed of worktable
|
0-320mm/min,stepless
|
|
Boring rod diameter
|
Adjustable boring head,
boring rod 8 pcs |
|
Main motor power
(Frequency conversion motor) |
1.5kw
|
|
Feed servo motor
|
0.11kw
|
|
Machine size
|
1600x760x1900mm
|
|
Packing size
|
1800x960x2200
|
|
Net Weight
|
1000/1200kg
|
|
N.W/G.W
|
700/ 900 kg
|
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment. If you have another question, pls feel free to contact us as below.
