Quick Details
-
Place of Origin:
-
Shanxi, China
-
Connector Body:
-
Brass per(QQ-B-626)
-
Center contact male:
-
Brass per(QQ-B-626)
-
Center contact female:
-
Beryllium copper per(QQ-C-530)
-
Insulator:
-
PTFE
-
Crimp ferrule:
-
Annealed copper
-
Gasket:
-
Silicone rubber
-
Nominal impedance:
-
50Ω
-
Frequency range:
-
0-4 GHz
-
VSWR:
-
1.25+0.05 X f GHz
-
Working voltage:
-
250 Volts rms
Quick Details
-
Brand Name:
-
Fulong
-
Type:
-
RF connector
-
Model Number:
-
SMB
-
Place of Origin:
-
Shanxi, China
-
Connector Body:
-
Brass per(QQ-B-626)
-
Center contact male:
-
Brass per(QQ-B-626)
-
Center contact female:
-
Beryllium copper per(QQ-C-530)
-
Insulator:
-
PTFE
-
Crimp ferrule:
-
Annealed copper
-
Gasket:
-
Silicone rubber
-
Nominal impedance:
-
50Ω
-
Frequency range:
-
0-4 GHz
-
VSWR:
-
1.25+0.05 X f GHz
-
Working voltage:
-
250 Volts rms

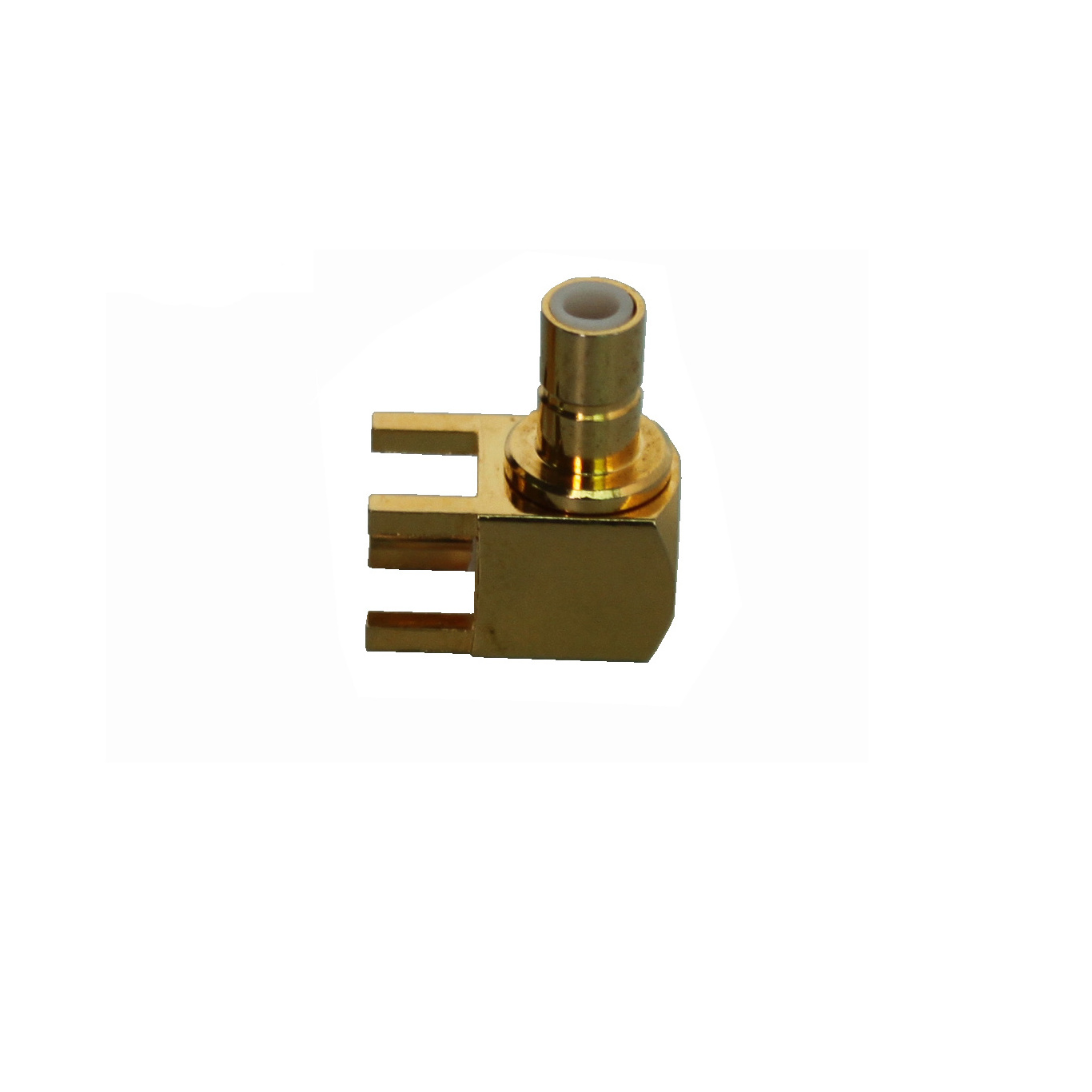

RF SMB Connector
Product Details
| Technical Data | |||
| 1)Material/Plating | |||
| Material | Plating | ||
| Connector Body | Brass per(QQ-B-626) | Gold plating | |
| Center contact male | Brass per(QQ-B-626) | Gold plating | |
| Center contact female | Beryllium copper per(QQ-C-530) | Gold plating | |
| Insulator | PTFE | ||
| Crimp ferrule | Annealed copper | Gold plating | |
| Gasket | Silicone rubber | ||
| 2)Electrical | |||
| Nominal impedance | 50Ω | ||
| Frequency range | 0-4 GHz | ||
| VSWR | 1.25+0.05 X f GHz | ||
| Working voltage | 250 Volts rms | ||
| Dielectric withstanding voltage | 750 volts rms | ||
| Insulation resistance | 1000MΩ min | ||
| Contact resistance | Center conductor 6.0mΩ | ||
| Out conductor 1.5mΩ | |||
| 3)Mechanical&Environmental | |||
| Mating | Snap or coupling | ||
| Cable retention | 8 lbs typical | ||
| Engage force | 6.0 lbs MAX | ||
| Disengage force | 1.0 lbs MIN | ||
| Durability | ≥500 cycles | ||
| Temperature range | PTFE -55℃ to + 155℃ | ||
