Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
Z83 V
-
Hard Drive Capacity:
-
4G 64G
-
Type:
-
Desktop
-
Graphics Card Type:
-
Integrated Card
-
Intel CPU:
-
Intel Atom x5-Z8300 Processor (2M Cache, up to 1.84 GHz)
-
OS:
-
Support window 10
-
RAM:
-
4GB
-
ROM:
-
64GB
-
Ethernet:
-
1000Mbps Lan
-
Expand memory:
-
SD Card support 128G
-
Product Name:
-
win10 Mini PC 4K Intel Atom Processor
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
EMMC
-
Video Memory Type:
-
GDDR4
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
Z83 V
-
Hard Drive Capacity:
-
4G 64G
-
Type:
-
Desktop
-
Graphics Card Type:
-
Integrated Card
-
Intel CPU:
-
Intel Atom x5-Z8300 Processor (2M Cache, up to 1.84 GHz)
-
OS:
-
Support window 10
-
RAM:
-
4GB
-
ROM:
-
64GB
-
Ethernet:
-
1000Mbps Lan
-
Expand memory:
-
SD Card support 128G
-
Product Name:
-
win10 Mini PC 4K Intel Atom Processor

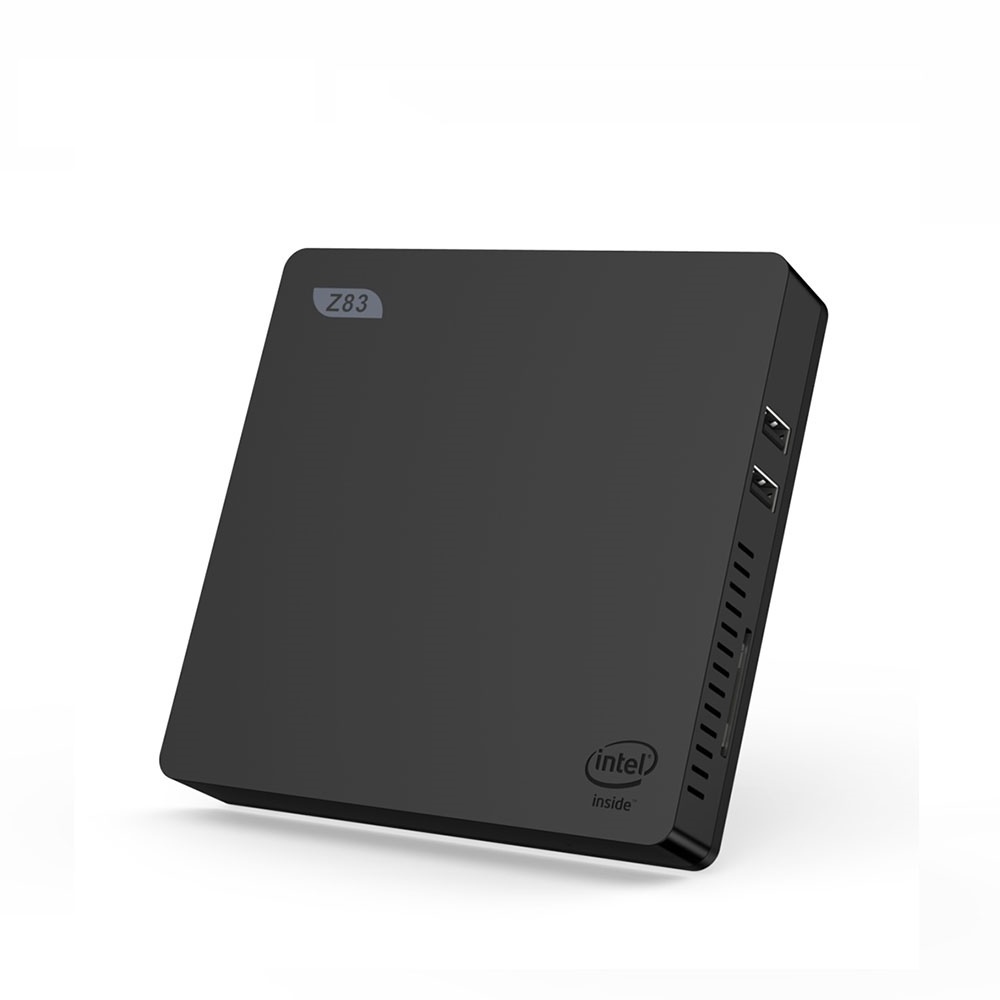

Z83V Window 10 Mini PC 4K Intel Atom Processor 64Bit HD 2GB + 32GB + 128G Media Player
Z83 V
|
Features |
|
|
CPU |
Intel Atom X5-Z8350 Processor, 2M Cache, up to 1.92 GHz |
|
GPU |
Intel HD Graphics 400 |
|
OS |
Windows 10 OS |
|
Memory DDR3 |
2GB/4GB DDR3 |
|
Emmc |
32GB/64GB EMMC |
|
Max Extended Capacity |
SD Card (Support 128GB) |
|
External HDD |
Up to 1TB |
|
Wi-Fi/BT |
Support IEEE 802.11a/b/g/n/ac,2.4G+5.8G Dual WIFI, 1000M LAN, BT 4.0 |
|
Dimensions |
119.5*119.5*24mm |
|
Performance |
|
|
Processor Base Frequency |
1.44 GHz |
|
Burst Frequency |
1.84 GHz |
|
Scenario Design Power (SDP) |
2 W |
|
CoCache |
2 MB |
|
Instruction Set |
64-bit |
|
Button & Ports |
|
|
Button |
1*Power Button |
|
DC-in |
1*DC in Port |
|
USB 3.0 |
1* Standard USB Port |
|
USB 2.0 |
2* Standard USB Port |
|
HD |
1*HD A Type Port |
|
RJ-45 |
1*RJ45 (1000Mbps network connection) |
|
Headphone microphone |
1*Headphone microphone jack |
|
SD Card |
1* SD card slot |
|
Power LED |
1* Power LED with two - color |
|
Power management |
|
|
Power management |
Adapter DC12V 2A(100-240V,50/60Hz) |
|
Environment |
|
|
Work Environment |
5°C -- 35°C,30%--90% Humidity |
|
Storage Environment |
.-20°C -- 60°C,10%--90% Humidity |
|
Package Specifications |
|
|
Packing size |
130*121*86.5mm |
|
Advanced Technologies |
|
|
Intel 64-bit |
yes |
|
Intel Identity Protection Technology |
yes |
|
PRECAUTIONS FOR USE |
|
|
1. Failure to use the included Power Adapter may violate regulatory , compliance requirements and may expose the user to safety hazards. |
|
|
2. The system is installed as a clean version |
|
|
3. Support Windows 10 system and Linux system |
|
|
4. Do not use harsh of chemical solvent , Cleaning products , We recommend using a soft cloth to wipe |
|
|
5. Do not throw Product into fire , avoid having Fire accident |
|
|
6. Do not attempt to open the housing or to repair, if a failure occurs, please contact the customer service |
|
|
7. Please note seepage while clean electronics, be careful of electric shock. |
|
|
8. Check for any frayed or damaged cords or plugs. |
|
|
9. Don't arbitrary discard the product ,We should protect the environment |
|
