Quick Details
-
Brand Name:
-
Yingke
-
Model Number:
-
YK-MPPT15
-
Work Time (h):
-
24
-
Max PV Power:
-
13440W
-
Max PV Voltage:
-
175Vdc/230v
-
Certificate:
-
CE
-
Warranty:
-
3 years
-

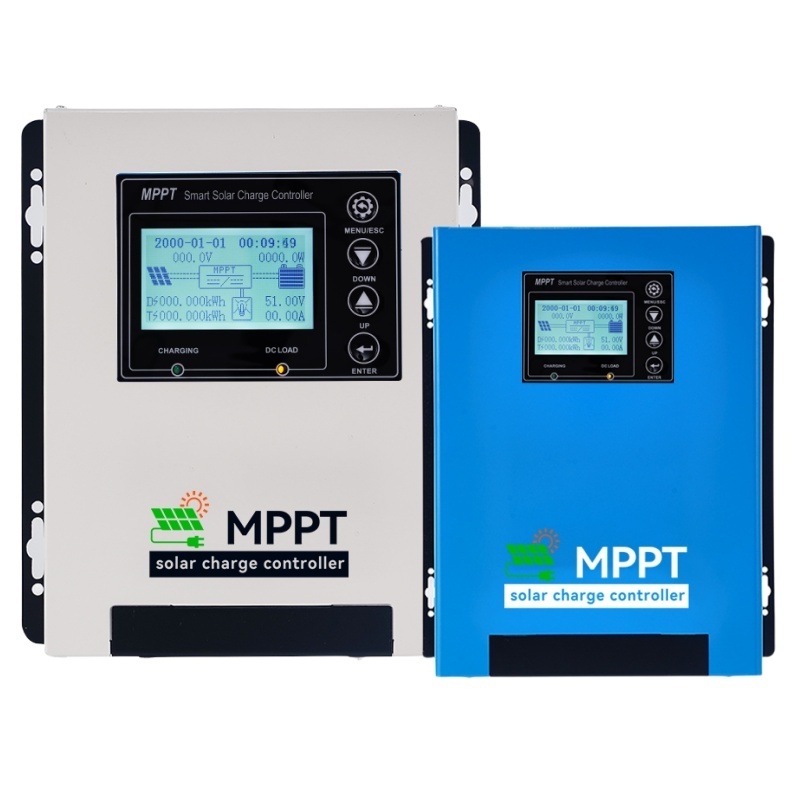

Product name:
-
Solar Charger Controller
-
Charge mode:
-
MPPT automatic maximum power point tracking
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
MPPT efficiency:
-
99.97%
-
Feature:
-
Mppt Solar Charger Controller
-
Keywords:
-
MPPT Charger Controller
-
Max PV Input Power:
-
DC175V/230v
-
Rated Voltage:
-
12V/24V/48V/96V Auto Switch
-
Display:
-
LCD/LED Display
-
OEM & ODM:
-
Welcomed
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yingke
-
Model Number:
-
YK-MPPT15
-
Work Time (h):
-
24
-
Max PV Power:
-
13440W
-
Max PV Voltage:
-
175Vdc/230v
-
Certificate:
-
CE
-
Warranty:
-
3 years
-
Product name:
-
Solar Charger Controller
-
Charge mode:
-
MPPT automatic maximum power point tracking
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
MPPT efficiency:
-
99.97%
-
Feature:
-
Mppt Solar Charger Controller
-
Keywords:
-
MPPT Charger Controller
-
Max PV Input Power:
-
DC175V/230v
-
Rated Voltage:
-
12V/24V/48V/96V Auto Switch
-
Display:
-
LCD/LED Display
-
OEM & ODM:
-
Welcomed
Product Description
|
Technical Parameter
|
|
|
|
|
|
|
||||||
|
Model No.
|
|
MPPT-10
|
MPPT-15
|
MPPT-20
|
MPPT-30
|
MPPT-40
|
||||||
|
Rated Charge Current
|
|
10A
|
15A
|
20A
|
30A
|
40A
|
||||||
|
Charge Voltage
|
|
12V/24V
|
|
12V/24V/48V
|
|
|
||||||
|
Charging pattern
|
MPPT automatic maximum power point tracking
|
|
|
|
|
|
||||||
|
System type
|
12V/24V/48V
|
Auto sensing / Manual setting
|
|
|
|
|
||||||
|
Static power
|
12V/24V/48V
|
≤ 2W
|
|
|
|
|
||||||
|
Overall efficiency
|
12V/24V/48V
|
≥96.5%
|
|
|
|
|
||||||
|
PV modules utilization
|
12V/24V/48V
|
≤ 99.97%
|
|
|
|
|
||||||
|
Input characteristic
|
|
|
|
|
|
|
||||||
|
MPPT working voltage range
|
12V SYSTEM
|
DC18V-DC170V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V-DC170V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V-DC170V
|
|
|
|
|
||||||
|
Input low
voltage protection
|
12V SYSTEM
|
DC16V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC30V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC60V
|
|
|
|
|
||||||
|
|
12V SYSTEM
|
DC18V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V
|
|
|
|
|
||||||
|
Input voltage limit
|
|
12/24/48-DC170V
|
|
|
|
|
||||||
|
Input over-voltage protection
|
|
12/24/48-DC175V
|
|
|
|
|
||||||
|
Input over-voltage recovery
|
|
12/24/48-DC170V
|
|
|
|
|
||||||
|
Solar panel maximum input power
|
12V SYSTEM
|
140W
|
210W
|
280W
|
420W
|
560W
|
||||||
|
|
24V SYSTEM
|
280W
|
420W
|
560W
|
840W
|
1120W
|
||||||
|
|
48V SYSTEM
|
550W
|
825W
|
1100W
|
1650W
|
2200W
|
||||||
|
Output characteristic
|
|
|
|
|
|
|
||||||
|
Battery type available (Defaut to lead-acid
battery) |
12V/24V/48V
|
Maintenanc-free lead acid battery, colloidal battery, liquid battery, LIFEPO4 lithium series battery (other types of batteries are available by customizing)
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Protect current
|
12V/24V/48V
|
12A
|
17A
|
22A
|
32A
|
42A
|
||||||
|
Protection
|
|
Input high voltage, Input connection, output connection, short circuit, over
temperature, high temperature protection. |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Noise
|
|
40dB
|
|
|
|
|
||||||
|
Cooling
|
|
Intelligent fan cooling, low temp. fan runs slow or stop.
|
|
|
|
|
||||||
|
Size
|
|
120*155*63
|
|
212*186*72
|
|
|
||||||
|
Package size
|
|
300*310*170
|
|
380*315*175
|
|
|
||||||
|
Net Weight （kg)
|
|
1.2
|
1.3
|
1.5
|
1.6
|
1.8
|
||||||
|
Gross Weight （kg)
|
|
1.6
|
1.7
|
1.95
|
2.05
|
2.25
|
||||||
|
*Products Specification are subjected to changed without further notice.
|
|
|
|
|
|
|
||||||
|
Technical Parameter
|
|
|
|
|
|
|
||||||
|
Model No.
|
|
MPPT-50
|
MPPT-60
|
MPPT-80
|
MPPT-100
|
MPPT-120
|
||||||
|
Rated Charge Current
|
|
50A
|
60A
|
80A
|
100A
|
120A
|
||||||
|
Charge Voltage
|
|
12V/24V/48V
|
|
48V/96V
|
|
|
||||||
|
Charging pattern
|
MPPT automatic maximum power point tracking
|
|
|
|
|
|
||||||
|
System type
|
12V/24V/48V/96V
|
Auto sensing / Manual setting
|
|
|
|
|
||||||
|
Static power
|
12V/24V/48V/96V
|
≤ 2W
|
|
|
|
|
||||||
|
Overall efficiency
|
12V/24V/48V/96V
|
≥96.5%
|
|
|
|
|
||||||
|
PV modules utilization
|
12V/24V/48V/96V
|
≤ 99.97%
|
|
|
|
|
||||||
|
Input characteristic
|
|
|
|
|
|
|
||||||
|
MPPT working voltage range
|
12V SYSTEM
|
DC18V-DC170V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V-DC170V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V-DC170V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC130V-DC230V
|
|
|
|
|
||||||
|
Input low
voltage protection
|
12V SYSTEM
|
DC16V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC30V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC60V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC12V
|
|
|
|
|
||||||
|
|
12V SYSTEM
|
DC18V
|
|
|
|
|
||||||
|
|
24V SYSTEM
|
DC34V
|
|
|
|
|
||||||
|
|
48V SYSTEM
|
DC65V
|
|
|
|
|
||||||
|
|
96V SYSTEM
|
DC130V
|
|
|
|
|
||||||
|
Input voltage limit
|
|
12/24/48-DC170V 96V-DC230V
|
|
|
|
|
||||||
|
Input over-voltage protection
|
|
12/24/48-DC175V 96V-DC235V
|
|
|
|
|
||||||
|
Input over-voltage recovery
|
|
12/24/48-DC170V 96V-DC230V
|
|
|
|
|
||||||
|
Solar panel maximum input power
|
12V SYSTEM
|
700W
|
900W
|
1140W
|
1400W
|
1680W
|
||||||
|
|
24V SYSTEM
|
1400W
|
1700W
|
2260W
|
2600W
|
3360W
|
||||||
|
|
48V SYSTEM
|
2800W
|
3400W
|
4540W
|
5600W
|
6720W
|
||||||
|
|
96V SYSTEM
|
5600W
|
7200W
|
9120W
|
11200W
|
13440W
|
||||||
|
Output characteristic
|
|
|
|
|
|
|
||||||
|
Battery type available (Defaut to lead-acid
battery) |
12V/24V/48V
|
Maintenanc-free lead acid battery, colloidal battery, liquid battery, LIFEPO4 lithium series battery (other types of batteries are available by customizing)
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Protect current
|
12V/24V/48V
|
52A
|
62A
|
82A
|
102A
|
122A
|
||||||
|
Protection
|
|
Input high voltage, Input connection, output connection, short circuit, over temperature, high temperature protection.
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
Noise
|
|
50dB
|
|
|
|
|
||||||
|
Cooling
|
|
Intelligent fan cooling, low temp. fan runs slow or stop.
|
|
|
|
|
||||||
|
Size
|
|
252*181*82
|
|
330*280*120
|
|
|
||||||
|
Package size
|
|
310*250*135
|
|
380*315*175
|
|
|
||||||
|
Net Weight （kg)
|
|
2.5
|
2.5
|
6.5
|
6.8
|
7
|
||||||
|
Gross Weight （kg)
|
|
3.1
|
3.1
|
7.3
|
7.5
|
8
|
||||||
|
*Products Specification are subjected to changed without further notice.
|
|
|
|
|
|
|
||||||
