Quick Details
-
Weight (KG):
-
530
-
Name:
-
Electric Motor Recycling Machine
-
Application:
-
Motor Rotor Crushing Machine
-
Usage:
-
Scrap Copper Recycling
-
Advantage:
-
100% Recycling
-
Voltage:
-
380V 50HZ 3 Phase (Suport Customize)
-
Copper purity:
-
99.99% Recycling Rate
-
Color:
-
Suport Customize
-
Weight:
-
530
-
Power:
-
4.5KW
-
Feature:
-
Three-function
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SUNY GROUP
-
Power (kW):
-
4.5
-
Weight (KG):
-
530
-
Name:
-
Electric Motor Recycling Machine
-
Application:
-
Motor Rotor Crushing Machine
-
Usage:
-
Scrap Copper Recycling
-
Advantage:
-
100% Recycling
-
Voltage:
-
380V 50HZ 3 Phase (Suport Customize)
-
Copper purity:
-
99.99% Recycling Rate
-
Color:
-
Suport Customize
-
Weight:
-
530
-
Power:
-
4.5KW
-
Feature:
-
Three-function
STATOR COPPER EXTRACTOR
PRODUCT DESCRIPTION

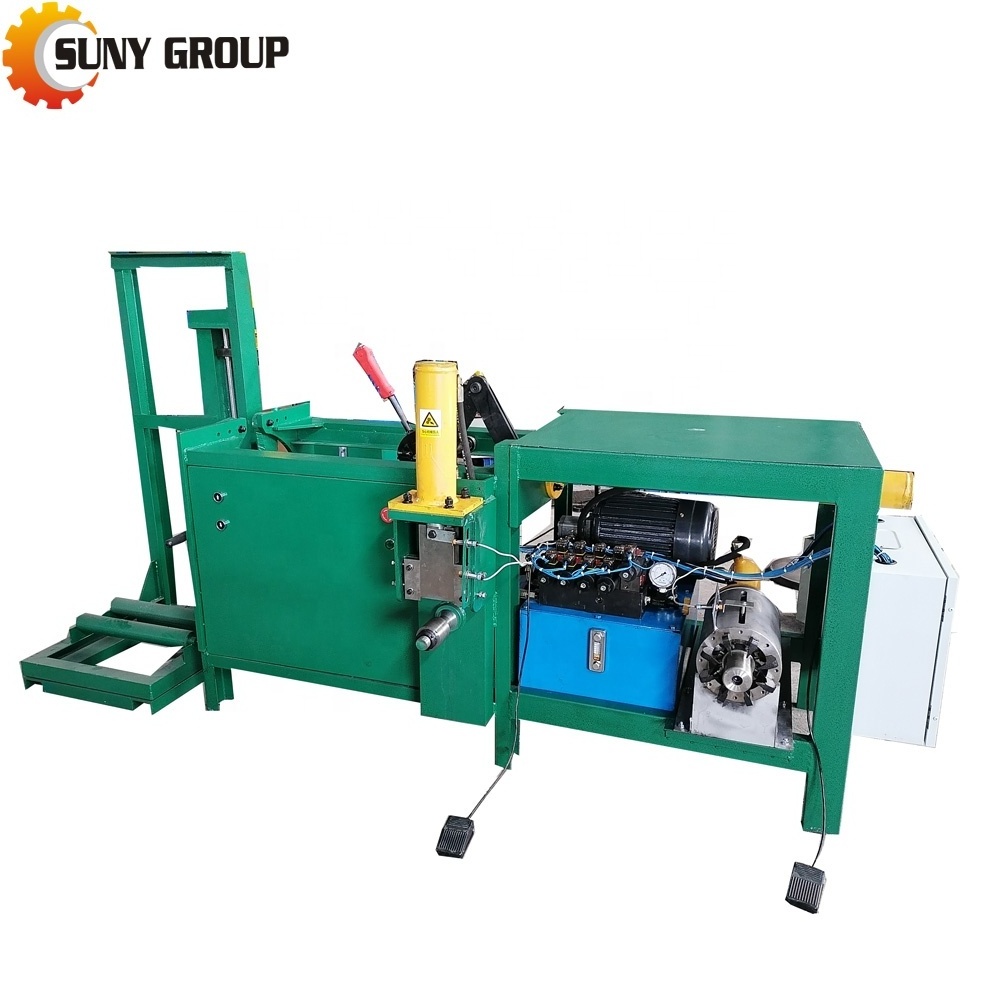

Used Motor Scrap Cutting Machine is a kind of waste motor/ waste motor and stator and heavery duty, it can help you to process more easily and efficient. The machine has 3 main parts, one is cutting part for all motor stator , second is grab copper part from small motor stator , last one is extract copper from big motor stator . It's very cost-effective and convenient in using..
TECHNICAL PARAMETERS
|
Model
|
Power
|
Weight
|
Overall Dimensions
|
|
ZY-MC500
|
4 Kw
|
480 Kg
|
2.6*1.1*1.2 m
|
NOTE:
The capacity of Used Motor Scrap Cutting Machine depends on the material..
RAW MATERIAL
Motor stator processing range: 50-500mm.
Raw material: Motor stators of household appliances, such as refrigerator, cold drink machine, air conditioner, air fan, air dehumidifier etc, washing machine, electric iron, dust collector, electric cooker, microwave oven, electric oven, electric hair drier, television, radio.
BEFORE RECYCLING
Process range: Stator size more than 5cm, diameter less than 50cm.
AFTER RECYCLING
FEEDBACK
We can provide you professional service in recycling industries, with high quality of our machine and guaranteed after-sales service, won unanimous praise from customers.
THREE FUNCTION IN ONE
Used Motor Scrap Cutting Machine is a multi-function motor stator recovery machine, three function in one,cutting copper wire,grab copper wire from small stators, pull copper wire from big stators.
Treatment Process of Small Size Stator
For small stators: put stator in the cutter, then cut one side copper wire, then use graber to grab all copper wire out from the other side.
Treatment Process of Large Size Stator
For big stators: put stator in the cutter, then cut one side copper wire, then put stator in the lifting table, use the hydralic pliers pull out all copper wires.
DETAIL DISPLAY
The Side and The Font of The Cut Off System
Grasping Copper and Pulling Copper Parts
Back of The Machine, Hydraulic System
FAQ
Q: How To Choose A Suitable Stator Copper Extractor?
Q: What About The Machine Installation?
A: For the Used Motor Scrap Cutting Machine installation, we will provide you the wire connection drawing and technical support,normally you can finish by yourself; but if you really need our technician, we will send to your working site as required.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
A: Please let us know your stators diameter and your capacity, we will
recommend you the most suitable machine.
Q: What About The Machine Installation?
A: For the Used Motor Scrap Cutting Machine installation, we will provide you the wire connection drawing and technical support,normally you can finish by yourself; but if you really need our technician, we will send to your working site as required.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
