Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
V2220210914-31
-
IP level:
-
IP65
-
Diameter:
-
22mm
-
Voltage:
-
DC48V
-
Head shape:
-
Flat/Domed/High Flat
-
Electrical Life:
-
>50,000cycles
-
Function:
-
SPST
-
Application:
-
Industrial Control
-
Material:
-
Stainless Steel/Nickel plated brass
-
Product name:
-
Power Push Button Switch
-
Operation type:
-
Momentory
-
Housing color:
-
Silver.Black.Red.Yellow.Blue.Green
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
48VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
V2220210914-31
-
IP level:
-
IP65
-
Diameter:
-
22mm
-
Voltage:
-
DC48V
-
Head shape:
-
Flat/Domed/High Flat
-
Electrical Life:
-
>50,000cycles
-
Function:
-
SPST
-
Application:
-
Industrial Control
-
Material:
-
Stainless Steel/Nickel plated brass
-
Product name:
-
Power Push Button Switch
-
Operation type:
-
Momentory
-
Housing color:
-
Silver.Black.Red.Yellow.Blue.Green

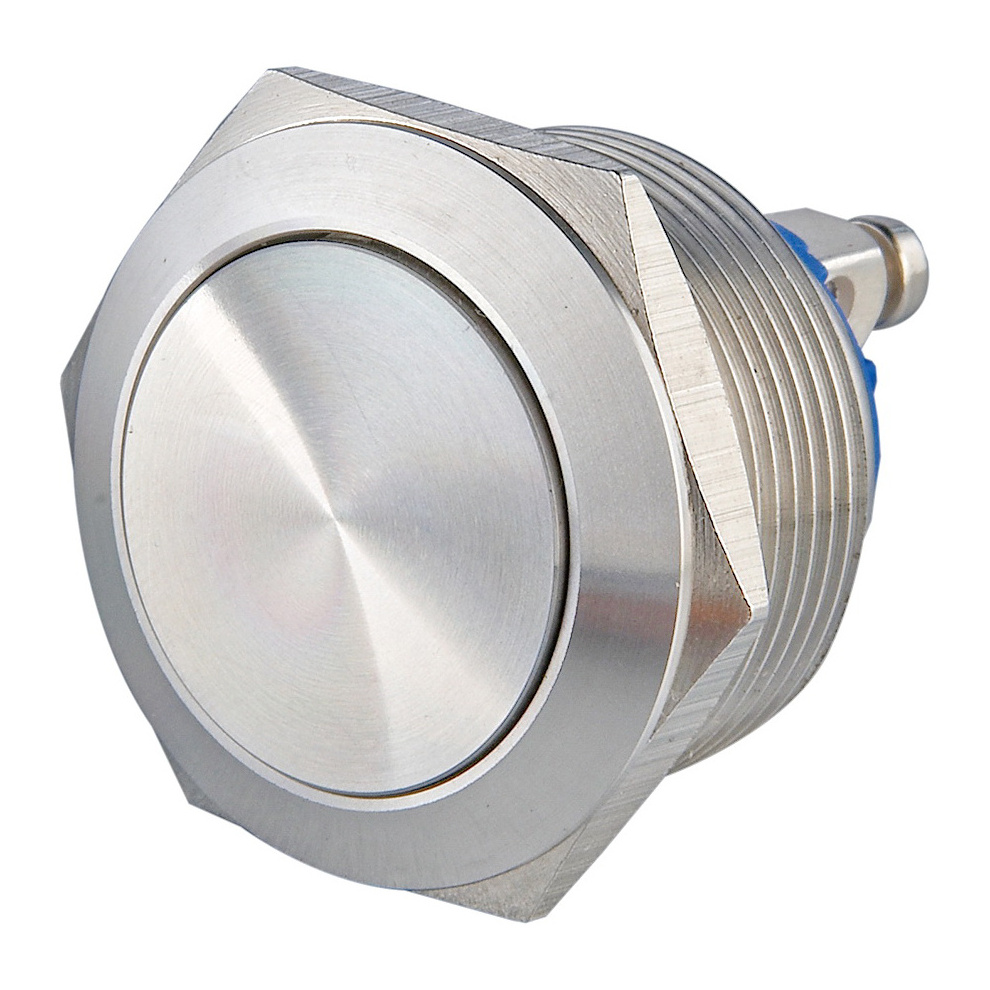

Automatic door opening accessories wireless push button switch
| TYPE | V22 |
| Actuator Options | Flat/Domed/High Flat |
| Number of Switch | Single Control Switch |
| Max. Panel Thickness | 0.315″ (8.0mm) |
| Terminal | Screw / Solder lug (2.8 x 0.5) |
| Max. Switch Rating | 2A/ 48VDC |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temp. | -20°C ~ +55°C |
| Mechanical Life | 1,000,000cycles |
| Electrical Life | >50,000cycles |
| Contact Material | Silver Alloy |
| Torque | 5 ~ 14Nm |
| Operation Pressure | approx. 5.5N |
| Protection | IP65 |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. Do you have acatalogue?
Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact
us on line or send an Email to sending the catalogue.
Q3. How about your delivery time?
A: Generally, it will take 2 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.But you have to pay for the shipping cos. If you need many items, or need more qty for each item,we will charge for the samples.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test one by one before delivery
Q6. What kind of payment do you accept ?
A: We accept T/T(Wire transfer),Western Union and Paypal.
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
