2023 New Swing arm Flail mower walk behind Orchard King 100A orchard under tree mower around tree mower

2023 New Swing arm Flail mower walk behind Orchard King 100A orchard under tree mower around tree mower

FOB Reference Price: Get Latest Price

≥1 Sets

US $1060

≥20 Sets

US $960

≥200 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Brand Name:: Orchard King

Product Name:: Orchard King 100 walking swing arm mower hand flail brush mower

Capacity:: Cutting width 1100 mm

Used for:: 2 to 6 meters row spacing of orchard tress

MOQ:: 1

Advantage:: Simple structure, high cost performance

PACKAGE:: Iron Case

Color:: Red + Gray or Customer Required

Quick Details

Weight (KG):: 230

Type:: Orchard / Vineyard mower machine, Swing arm mower

Use:: Orchard and Vineyard under tree mowing

Place of Origin:: Hebei, China

Brand Name:: Orchard King

Product Name:: Orchard King 100 walking swing arm mower hand flail brush mower

Capacity:: Cutting width 1100 mm

Used for:: 2 to 6 meters row spacing of orchard tress

MOQ:: 1

Advantage:: Simple structure, high cost performance

PACKAGE:: Iron Case

Color:: Red + Gray or Customer Required

Product Overview

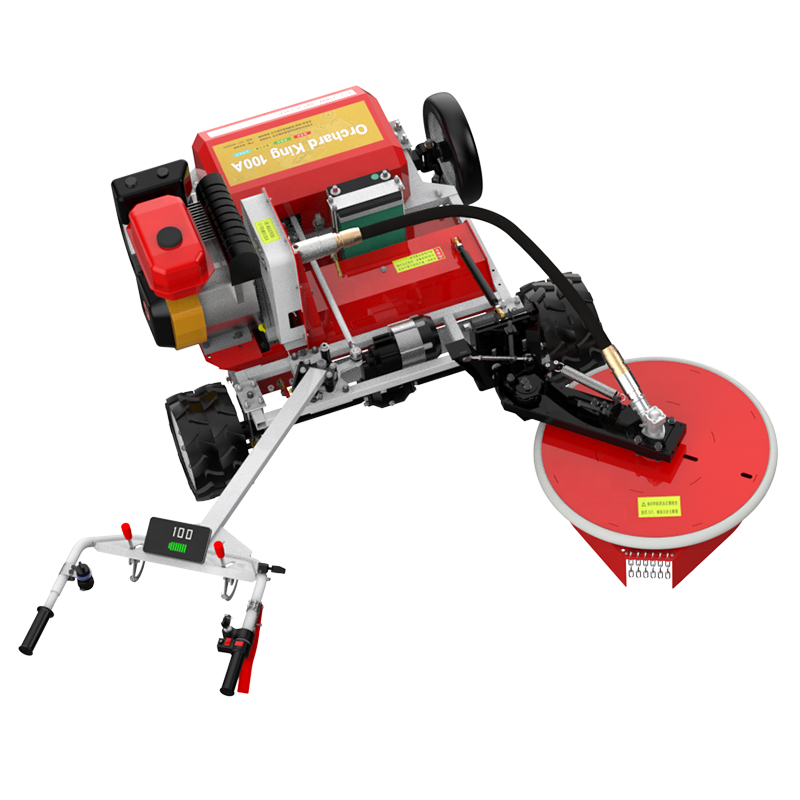

Orchard King 100A

Swing arm Flail mower

The Orchard King 100A is an obstacle-avoiding mower suitable for orchards, vineyards and with several key innovations.

The main part is a 60cm wide flail mower, which has a better grass breaking effect, especially not afraid of ground fluctuations, and is more durable.

The right side has an obstacle avoidance cutter head with a cutting width of 52 cm, and its height and Angle can be adjusted separately.

The height of the machine is very low, and gradually increases from the obstacle avoidance cutter head to the left.

The top of the obstacle avoidance cutter head is 27 cm, the height of the grass crusher is 40 cm and the height of the farthest diesel engine is 75 cm.

The left and right Angle of the handle can also be adjusted, and the operator can stand behind or on the left side of the mower.

Whether working under trees or in small spaced vineyards, the Orchard King 100A is suitable for the occasion.

In addition, the rotating shaft of the handle is connected with the rotating pull rod of the steering wheel, and you can gently
turn the handle when you need to turn.

As of June 2023, we have far more patents in the field of orchard mowers than our Chinese counterparts, and the number of orchards
we serve is likely to be even greater.

We hope to provide fruit plantations around the world with well-designed, affordable and quality guaranteed Orchard King mowers to
help growers build better orchards together.

Type	Orchard King 100A
Power	electric walking, diesel mowing
Cutting width (cm)	110
Flail mower cutting width (cm)	60
Rotation angle of Swing arm cutter	-30° ~ 30°
Blade type of flail mower	Y + I type blade
Cutting depth of Flail mower (cm)	3 ~ 6
Cutting depth of Swing arm cutter (cm)	3 ~ 23 *
Speed (Km/h)	0 ~ 6
Diesel engine power(hp)	9, 12
Driving Motor Power (w)	DC 500
Battery capacity	48V/12A
Start battery	12V/36A
Height swing arm cutter TOP (cm)	25
Height of flail mower TOP (cm)	47
Height of Diesel engine TOP (cm)	79
Number of hammer (flail mower)	54
Number of blade (swing arm cutter)	2
Tyre	solid tire
Tyre diameter (cm)	32 , 35
Rear tyre	double tyre

* Including swing arm cutter height independent adjustment and the height adjustment of the flail mower.

As of June 2023, our company has applied for and obtained more than 70 invention patents in the field of orchard machinery and intelligent agricultural machinery.

The market share of the products involved in China is also in a leading position.

FEATURES AT A GLANCE

Mowing effect is very perfect.

1. 60 cm Flail mower + 52 cm Swing arm cutter, total 110 cm

2. Swing arm cutter can adjust the height individually

3. Diesel mowing + Electric walking

4. Steering wheel linked to the handlebars, Less effort in direction control

5. Stepless speed regulation, with a fixed cruise mode

Back elevation

Front elevation

Left elevation

The main national exhibitions of our company include China International Forestry Machinery Exhibition, China International Agricultural Machinery Exhibition and China Yangling Agricultural Hi-Tech Fair. In addition to some industry exhibitions in major provinces of fruit industry.

These pictures rotary mower “Path Breaker” was designed and produced by our factory, Path Breaker Nanpi machinery manufacturing Co., Ltd. Because the transmission structure of this kind of mower is relatively complex, the ability to adapt to complex terrain is not good enough, so it has been eliminated by our factory. Some counterfeiters are still using our photos and videos, so be aware.

A : Why choose Orchard King? Orchard King's Flail mower + swing arm mower structure form is the future trend. Good operation effect, high durability. Moreover, the structural design of Orchard King is more concise and easy to maintain, and has applied for a number of patents. In China, Orchard King has been deeply contacting orchards around the country with good products for many years, and iteratively upgrading according to the feedback of field operations. In China, Orchard King is one of the few really good, applicable, advanced obstacle avoidance grass crusher, reputation is better, and the user scale is likely to be the larger. B : How about our quality control? Orchard King's each production step follows strict established standards, and operational tests are carried out before shipment, and only after passing the tests are allowed to leave the factory. C : Is there any spare parts included with the machine？ Yes. We will give a variety of accessories according to the needs of users, so as to avoid delay in use once there is a problem. D : What's the minimum order quantity? MOQ: 1 unit.If you have OEM or ODM customization needs, MOQ will change according to your needs. E : Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ. F : Whether you could make your products by our color? Yes, The color of products can be customized if you can meet our MOQ. G : What's your warranty policy? Normally our warranty is one year.Once quality issue happen, no damage to human factors, we will send you the replacements by air for free.
