Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZNEP
-
Model Number:
-
ZD-F330Q
-
Voltage:
-
AS YOUR REQUIREMENT
-
Dimension(L*W*H):
-
1350*570*250 cm
-
Weight:
-
16500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product:
-
China fully automatic paper bag machine
-
Certification:
-
CE
-
Configuration:
-
Advanced
-
Productivity:
-
High
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
paper bag
-
Material:
-
Paper
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZNEP
-
Model Number:
-
ZD-F330Q
-
Voltage:
-
AS YOUR REQUIREMENT
-
Dimension(L*W*H):
-
1350*570*250 cm
-
Weight:
-
16500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product:
-
China fully automatic paper bag machine
-
Certification:
-
CE
-
Configuration:
-
Advanced
-
Productivity:
-
High

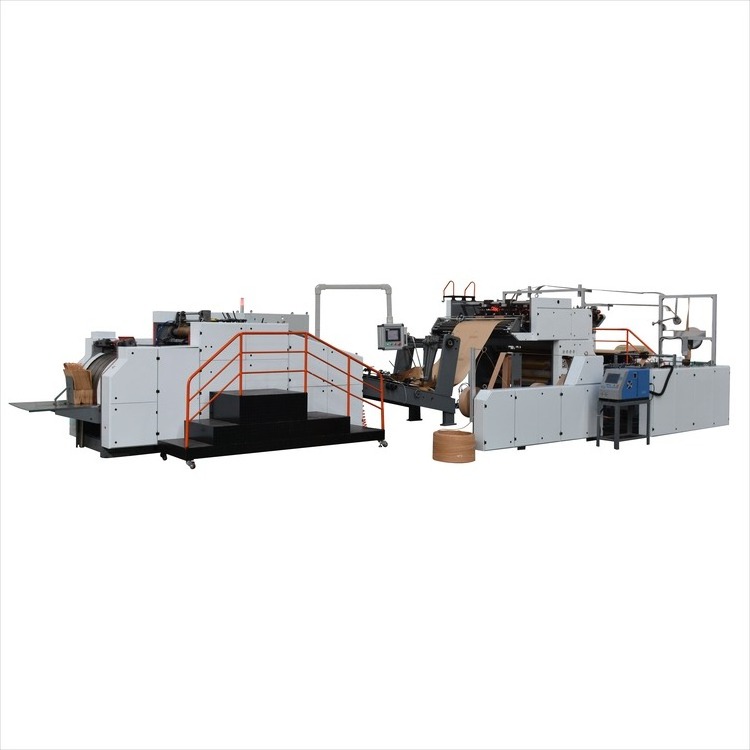

ZD-F330Q China fully automatic paper bag forming machine
ZD-F330Q Paper Bag Forming Machines are our latest products of high techniques , with very stable performance and almost Zero Defective Rate, also with warranty of 3 years .
Main Features
Specially designed for making square bottom paper bags with handles in one step.
Advanced configuration
1. Automatic feeding system with oil cylinder;
2. American Techmach automatic deviation-rectifying system;
3. Feeding system of handle making machine is equiped with automatic deviation-rectifying system;
4. Handle machine adopts Mitsubishi servo motor;
5. Handle attachment device including jogging, gluing, handle delivery and traction is controled by Mitsubishi servo motor imported from Japan;
6. Main machine traction adopts Mitsubish servo motor from Japan;
7. Main motor adopts Mitsubishi servo motor from Japan;
8. Automatic collection system;
9. Automatic counting system;
10. Automatic refueling system;
11. Man-machine touch screen interface on which the user can adjust the parameters.
Technical parameter
|
Roll paper width |
460-990 |
mm |
|
Paper roll dia |
φ1500 |
mm |
|
Roll core dia |
φ76 |
mm |
|
Paper gram |
60-150 |
g/m 2 |
|
Paper bag width |
200-330 |
mm |
|
Cut off length |
280-410 |
mm |
|
Gusset width |
65-150 |
mm |
|
Handle height |
110/115/130 |
mm
|
|
Handle rope dia |
φ4-6 |
mm |
|
Handle patch length |
152 |
mm |
|
Handle patch width |
40-50 |
mm |
|
Rope distance |
75 |
mm |
|
Roll paper (patch) dia |
φ1200 |
mm |
| Roll paper (patch) width | 80-100 | mm |
| Handle patch gram | 100-200 | g/m 2 |
| Max. speed | 130 | bags/min |
| Total power | 38 | KW |
| Machine weight | 16500 | KG |
| Overal dimension | 13500*5700*2500 | mm |
Company Introduction
Nanjing Zono Machine Equipment Co., Ltd. is situated at No. 63 Gutan Road, Gaochun Economic Development Zone, Nanjing City, covering 20000 square meters. Close to Shanghai and Ningbo ports, 30km away from Nanjing Lukou Airport, we enjoy excellent geographical location and convenient transportation. Zono is an experienced manufactory, which is professional in post-printing and packing equipment. We keep strict internal management and enforce ISO9001 quality system standard. The equipment has passed CE certification.
