Phase & waveform Single Phase & Pure Sine Wave
Norminal Voltage 120VAC/230VAC OR 220/230/240VAC
Acceptable Voltage 95-126VAC OR 194-253VAC±4%
Line Low Disconnect 85V±4% OR 184±4% (154 wide mode±4%)
Line Low Reconnect 95V±4% OR 194 ±4%(164 wide mode±4%)
Line High Disconnect 136V±4%/274±4%
Line High Reconnect 126V±4%/264±4%
Frequency 50Hz(41-54) or 60Hz(51-64) (auto sensing)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLPOWER/OEM
-
Model Number:
-
LW 1-6KW
-
Input Voltage:
-
110/120/230/240V
-
Output Current:
-
according to the load
-
Output Frequency:
-
50/60Hz
-
Size:
-
446*218*179/ 605*218*179
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
Weight:
-
18-48kgs
-
Wave form:
-
Pure sine wave
-
Nominal Power:
-
1000W~6000W
-
peak power:
-
three times of rated power
-
Input Voltage Range:
-
164-255V
-
Charger Current:
-
35amp/70amp
-
Frequency:
-
50Hz/60Hz
-
Advantage:
-
Low frequency with transformer
-
Application:
-
solar, wind, home, airconditioner, freezer, and so on
-
Transfer efficiency:
-
95%(Line mode)
-
Inverter type:
-
DC to AC inverter
Quick Details
-
Output Type:
-
Single, DUAL
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
>95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZLPOWER/OEM
-
Model Number:
-
LW 1-6KW
-
Input Voltage:
-
110/120/230/240V
-
Output Current:
-
according to the load
-
Output Frequency:
-
50/60Hz
-
Size:
-
446*218*179/ 605*218*179
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
Weight:
-
18-48kgs
-
Wave form:
-
Pure sine wave
-
Nominal Power:
-
1000W~6000W
-
peak power:
-
three times of rated power
-
Input Voltage Range:
-
164-255V
-
Charger Current:
-
35amp/70amp
-
Frequency:
-
50Hz/60Hz
-
Advantage:
-
Low frequency with transformer
-
Application:
-
solar, wind, home, airconditioner, freezer, and so on
-
Transfer efficiency:
-
95%(Line mode)
-
Inverter type:
-
DC to AC inverter
Product Description
Product Name

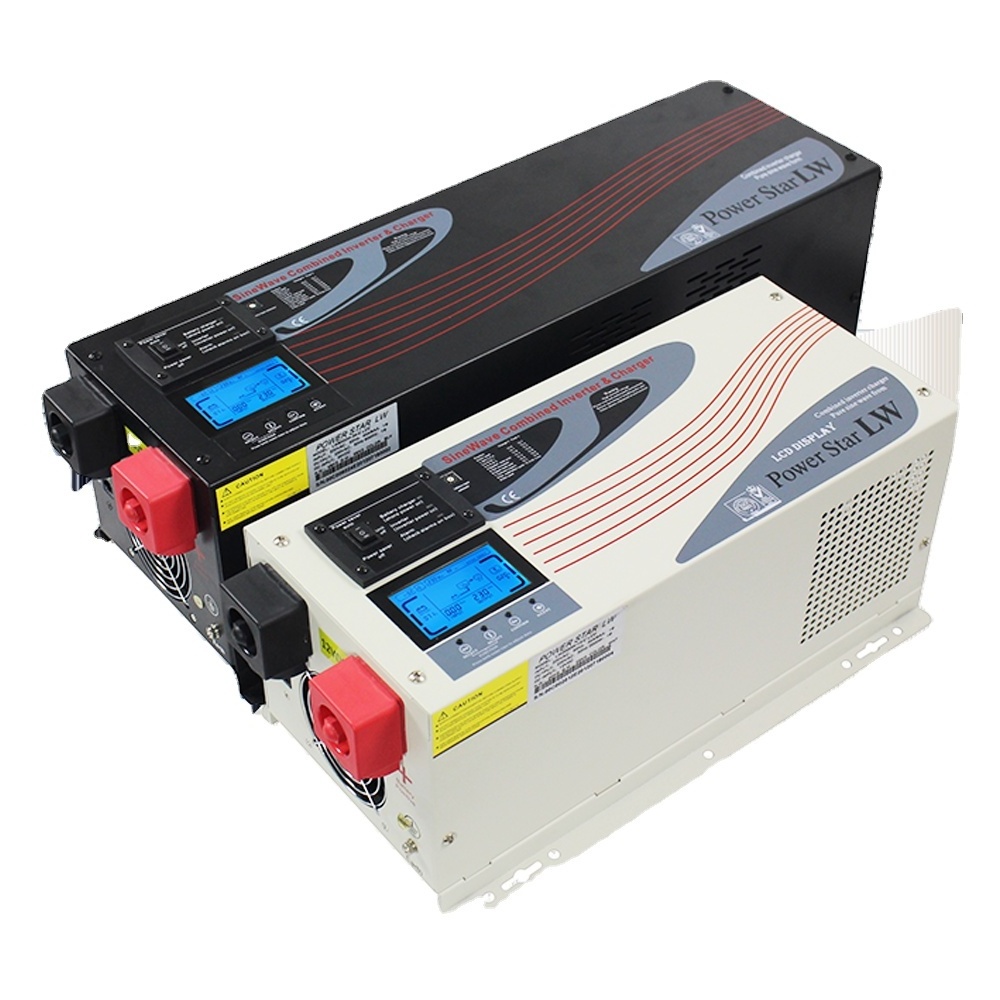

1KW 2KW 3KW 4KW 5KW 6KW Low Frequency Power Star Inverter with LCD display
Product Application
LW 500W-10000W Pure Sine Wave, low frequency Inverter
It is widely applied in wind generator, solar power system, house, vehicle, ship, navigation and placeswhere lack of city power, mobile electricity work and telecommunications device, launch station, emergency EPS.
Main Features
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Can work with inductive loads such as air conditioner, motor door and so on
4. Accept generator's energy output.
5. Pure sine wave output, available for sensitive loads.
6. Microprocessor control with 3-step progressive charging, 7 battery type selector.
7. Fast and powerful charger with 35A and 70A.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Custom-made communication port USB/RS-232/SNMP
11. Remote control function.
12. Protection against overload, over temperature, over charging, low battery.
Detailed Images
AC Input
Output
Phase & Waveform Single Phase & Pure Sine Wave (bypass mode sync to input)
Voltage 110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input)
Voltage Regulation ±10%rms (bypass mode sync to input)
Frequency 50Hz±0.3Hz OR 60Hz±0.3Hz (bypass mode sync to input)
Peak Power 3 times of rating power
Short Circuit Protection Yes, shutdown after 10ms
Power Factor 0.9-1.0
DC Input
Battery Voltage 12/24Vdc 12/24/48Vdc 24/48Vdc 48/72Vdc
Minimum Start Voltage 10V for 12V, 20V for 24V, 40V for 48V
Low Battery Alarm 10.5±0.3Vdc for 12V, 21±0.6Vdc for 24V, 42V±1.2for 48V
Low Battery Transfer 10V±0.3Vdc for 12Vdc, 20V ±0.6Vdcfor 24V, 40V ±1.2Vdcfor 48V
High Voltage Alarm 16V±0.3 for 12V, 32V ±0.6for 24V, 64±1.2V for 48V
High DC Input Recovery 15.5±0.3Vdc or 31±0.6Vdc or 62V±1.2Vdc
Max Charge Current 20A/35A/50A/75A/90A(According to the inverter model)
System Parameter
Power Saver Load<=25W(Enabled on "P/S auto"setting of Remote Control
Audible Alarm Souding when the heat sink 's temperature is over 100℃and shut down after 30 seconds
Over Load Protection 110%<Load<150%,beep 0.5s every 1s,and fault after 60s
Load>150%,beeps 0.5s every 1s,and fault after 20s
Protections low battery,over charging,over temp,over load
Communications RS-232/USB/SNMP(custom-made)
Operating Environment 0-40℃,0-90%RH(non-condensing)
Audible Noise <60dB
Net Weight(KG) 15.5 18 20 25.5 36 39.5 48 55 60
Dimension, L X W X H(mm) 470×223×185mm 650×223×185mm
Our company
Shenzhen ZLPOWER Electronics Co., Ltd is a professional manufacturer and exporter in the field of UPS power supply and Solar power system for more than 13 years. Our aim is to create a national brand of UPS and power supply products.
We are a technical enterprise which research, manufacture and export UPS systems,Inverters, Solar products, AVR, DC power and Free maintenance lead acid battery.
We Own:
8 Production lines, 13Years of experience
68 Countries and markets over the world
300 Experienced Workers, 50 Professional Engineers
Free OEM Service, Fast Lead Time 7-15 days, High Quality (CE&ISO)
Our experienced R&D team enables us to build customized product lines for clients.
Beside OEM and ODM customizations, we also provide complete after sales service and technical support for any customer who need.
We are eager to be your expert UPS power supplier and protect your power in real time. We can supply you not only 400~2000VA small
UPS for computer market, Big Online UPS with capacities up to 600KVA/540KW, but also pure sine wave inverter with capacities up to 20KW. Besides that, we can always offer you lead acid battery with long expected life, Solar products to protect your power with solar and so on.
And we are looking for agents worldwide to distribute ZLPOWER UPS and power supply products to their local markets.
Any interests please welcome to contact us today to look for best power solution.
We are a technical enterprise which research, manufacture and export UPS systems,Inverters, Solar products, AVR, DC power and Free maintenance lead acid battery.
We Own:
8 Production lines, 13Years of experience
68 Countries and markets over the world
300 Experienced Workers, 50 Professional Engineers
Free OEM Service, Fast Lead Time 7-15 days, High Quality (CE&ISO)
Our experienced R&D team enables us to build customized product lines for clients.
Beside OEM and ODM customizations, we also provide complete after sales service and technical support for any customer who need.
We are eager to be your expert UPS power supplier and protect your power in real time. We can supply you not only 400~2000VA small
UPS for computer market, Big Online UPS with capacities up to 600KVA/540KW, but also pure sine wave inverter with capacities up to 20KW. Besides that, we can always offer you lead acid battery with long expected life, Solar products to protect your power with solar and so on.
And we are looking for agents worldwide to distribute ZLPOWER UPS and power supply products to their local markets.
Any interests please welcome to contact us today to look for best power solution.
Certifications
Our Service
Pre-Sales Service
* Provide professional OEM/ODM service.
* years Warranty, lifelong technical support and 2% free boards for bulk order With CE certificate & EMC report.* Best competitive factory price.
* Fast delivery with stock.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
480*225*190-660*225*200mm
|
|
|
Weight
|
14.5-45.0kg
|
|
|
Packaging Details
|
|
|
|
Delivery
|
7-10 days after receice payments
|
|
Related Products
FAQ
Questions & Answers:
Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipment.
Q2. How's the delivery time?
A. usually it will take about 3-5 days for sample and 10-15 days for bulk production
Q 3. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
Q4. Would you accept to use our logo?
A. We would provide free OEM order depends on your quantity.
Q5. We want to know month capacity.
A. It depends on different model. Total capacity is upto 10000 pieces.
Q6. Where is your market?
A. Our products are popular all over the world as their cost-effictive perfermance. We hope you can join us and make mutual benefit from our long-term and co-win cooperation.
Q7. Does the inverter connect with utility?
A.Yes.it is solar and utility complementary inverter. it combine invert, charge and AC auto-transfer switch into one complete case, it also can charge the battery by utility and generator.
