Quick Details
-
Power (kW):
-
30
-
Range of Spindle Speed(r.p.m):
-
1250 - 1450 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FST
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4200*1200*2700mm
-
Weight (KG):
-
450 KG
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
as per request
-
condition:
-
new
-
application:
-
grinding powder
-
Grinding diameter:
-
200-500mm
-
name:
-
PE pulverizer price
-
Function:
-
pulverizer/milling
-
Product:
-
Plastic Pulverizer
-
Weight:
-
450KG
-
Power(W):
-
30kw
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Output (kg/h):
-
80 - 500 kg/h
-
Feeding Size (mm):
-
380 - 800 mm
-
Output Size (mesh):
-
10 - 100 mesh
-
Power (kW):
-
30
-
Range of Spindle Speed(r.p.m):
-
1250 - 1450 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FST
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4200*1200*2700mm
-
Weight (KG):
-
450 KG
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
as per request
-
condition:
-
new
-
application:
-
grinding powder
-
Grinding diameter:
-
200-500mm
-
name:
-
PE pulverizer price
-
Function:
-
pulverizer/milling
-
Product:
-
Plastic Pulverizer
-
Weight:
-
450KG
-
Power(W):
-
30kw
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE

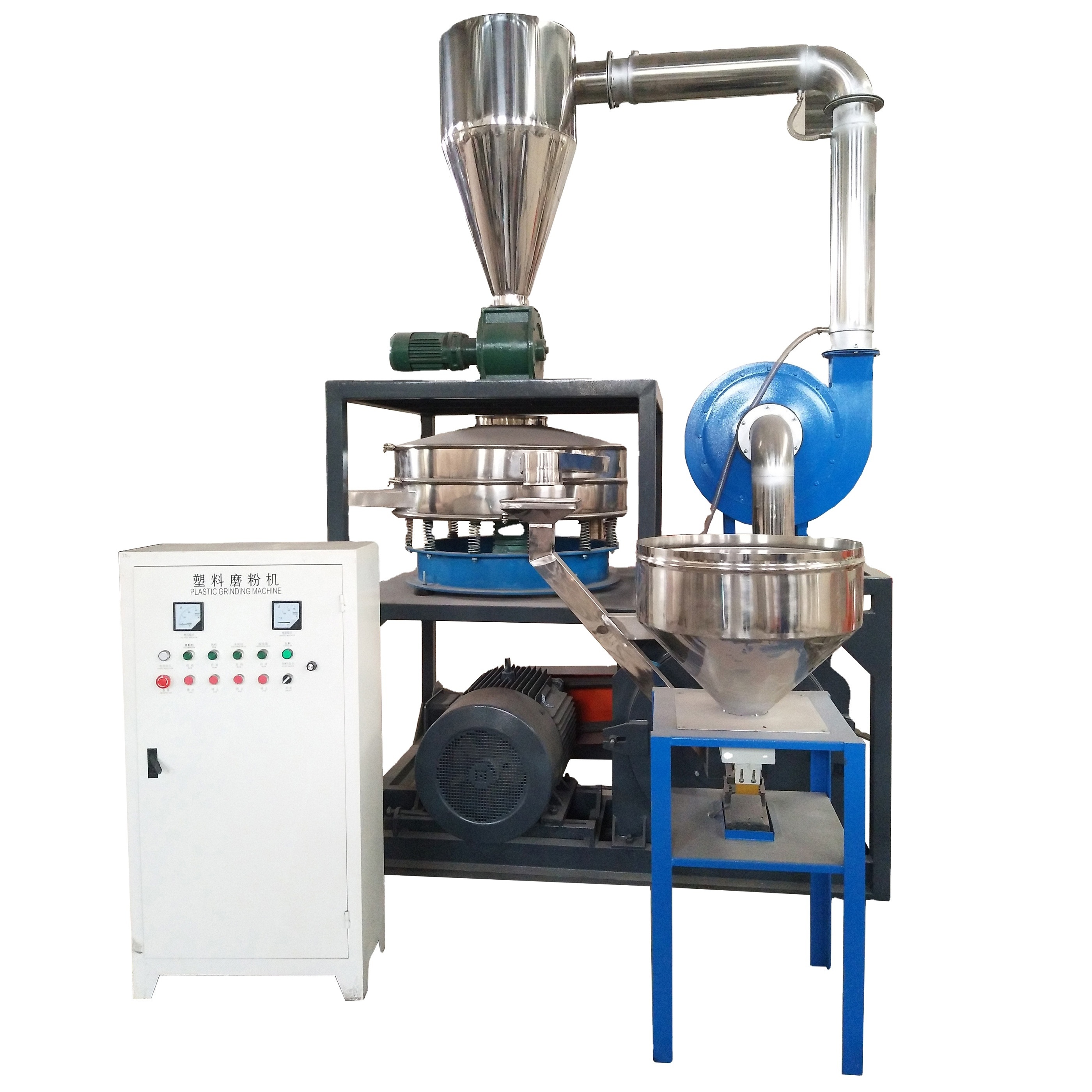

The disc grinding pulverizer machine of the SMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc
|
Model
|
380
|
610
|
800
|
|
Grinding Disc Diameter(mm)
|
380
|
610
|
800
|
|
Main Motor Power(kw)
|
30
|
45
|
55
|
|
End Plastic Powder Size
|
10-100mesh
|
10-100mesh
|
10-100mesh
|
|
Cooling Method
|
Air/Water Cooling
|
Air/Water Cooling
|
Air/Water Cooling
|
|
Outout(kg/h)
|
PVC:200kg/h
PE:150kg/h PP:80kg/h |
PVC:350kg/h
PE:250kg/h PP:160kg/h |
PVC:500kg/h
PE:350kg/h PP:200kg/h |
Main Features
1.FST series pulverizer is disc-type blade pulverizer.The machine widely used for plastic and rubber industry.It is the ideal equipment to process heat plastic and suitable for PE PP PVC and other material.
2.The machine is special purpose equipment for plastic factory to reduce production costs and improve economic efficiency.
3.The main shaft bearing adopt Japanese original NSK brand,unique bearing dustproof device,can resist dust.
